System Manual Safety System MGB-AR in Combination with a Locking Module
6
System overview

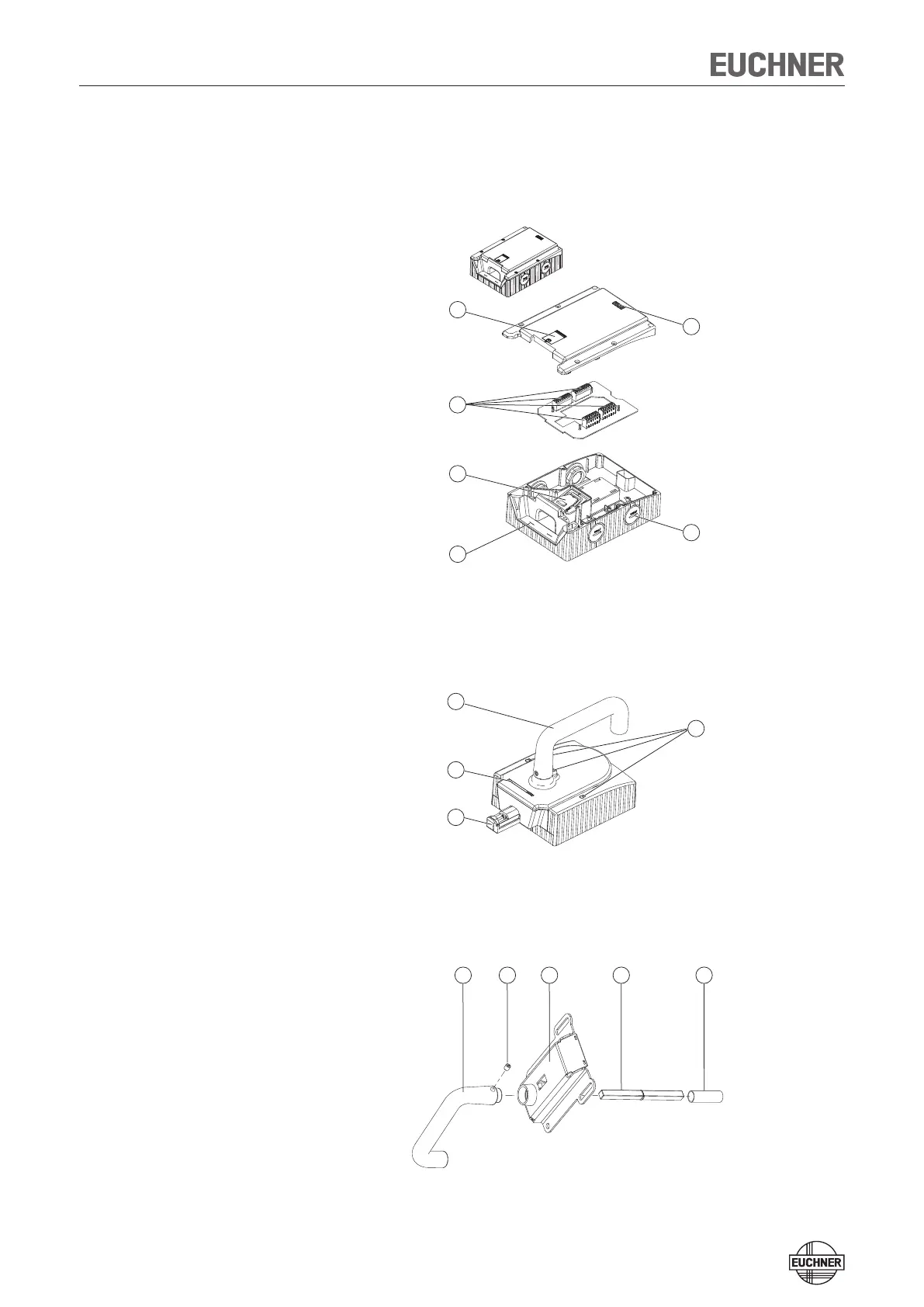

Locking module MGB-L1-AR-.../MGB-L2-AR-...
Figure 1: Locking module MGB-L1-AR-.../MGB-L2-AR-...
Handle module MGB-H-...
Figure 2: Handle module MGB-H-...
Escape release MGB-E-... (optional)
Figure 3: Escape release MGB-E-...
1
2
4
5
3
6
Key:
1
Cover for mechanical release
2
LED indicator
3
Terminals X2 -X5
4
Locking arm
5
Auxiliary marking for maximum per-
mitted mounting distance
6
Depending on version:
Cable entry M20x1.5 or plug con-
nector
Note:
Depending on the version, additional
controls and indicators may be integrated
into the cover and a mounting plate can
be included. See enclosed data sheet.
1
2
3
4
Key:
1
Door handle
2
Locking pins for housing cover
and handle adjustment
3
Lockout bar
4
Bolt tongue
Note:
Depending on the version, a mounting
plate can be included. See enclosed
data sheet.
1 2 3 4 5
Key:
1
Door handle
2
Setscrew
3
Cover
4
Actuation axis 8 x 8 mm
5
Protective sleeve
Note:
Depending on the version, a mounting
plate can be included. See enclosed data
sheet.
