System Manual Safety System MGB-AR in Combination with a Locking Module
11
Installation
Warning!
Mounting must be performed only by authorized personnel.
For installation steps see Figure 8 and Figure 9 to 14.
Install system so that
operation of the mechanical release as well as inspection and maintenance are
possible.

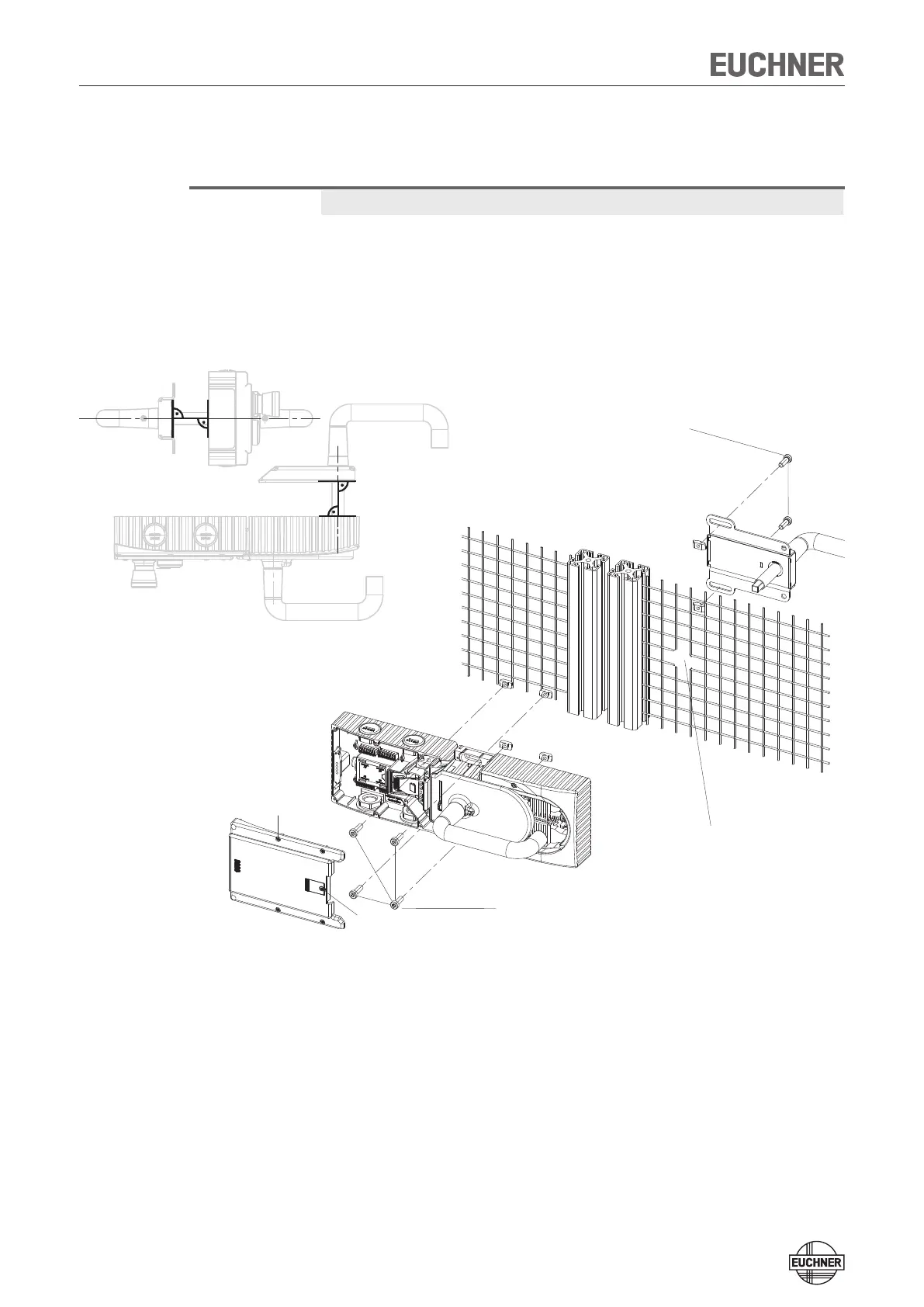

Figure 8: Installation example for door hinged on the right (general view)
4x M6
2x M6
0,5 Nm
1 Nm (6x)
Fastening material not included!
Cut-out for escape release
Tightening torque 4 Nm
To Next Page
