Operating Instructions
Safety Switch TZ…
Exclusion of liability and warranty
In case of failure to comply with the conditions for
correct use stated above, or if the safety regula-
tions are not followed, or if any servicing is not
performed as required, liability will be excluded and
the warranty void.
Notes about
The following information applies to devices
with cable entry:
For use and application as per the requirements
of a copper wire for the temperature range
60/75°C must be used.
The following information applies to devices
with plug connector:
This device is intended to be used and applied with
a Class 2 power source in accordance with UL1310.
Connecting cables for safety switches installed at
the place of use must be separated from all moving
and permanently installed cables and un-insulated
active elements of other parts of the system that
operate at a voltage of over 150V. A constant
clearance of 50.8 mm must be maintained. This
does not apply if the moving cables are equipped
with suitable insulation materials that possess an
identical or higher dielectric strength compared to
the other relevant parts of the system.
EU declaration of conformity
The declaration of conformity is part of the operating
instructions.
The complete EU declaration of conformity can also
be found at www.euchner.com. Enter the order num-
ber of your device in the search box. The document
is available under Downloads.
Service
If servicing is required, please contact:
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
70771 Leinfelden-Echterdingen
Service telephone:
+49 711 7597-500
E-mail:
support@euchner.de
Internet:
www.euchner.com
Technical data
Parameter Value
Housing material Die-cast alloy
Degree of protection
Cable entry
Plug connector
IP67
IP65
Mechanical life 1x10
6
operating cycles
Ambient temperature -25…+80 °C
Degree of contamination
(external, acc. to EN60947-1)
3 (industrial)
Installation orientation Any
Approach speed, max. 20 m/min
Extraction force (not locked) 30 N
Retention force 10 N
Actuating force, max. 35 N
Actuation frequency 1,200/h
Switching principle Slow-action switching contact
Contact material Silver alloy, gold flashed
Connection
TZ…
TZ…SR6
TZ…SR11
TZ…RC18
Cable entry M20x1.5
Plug connector SR6, 6-pin+PE
Plug connector SR11, 11-pin+PE
Plug connector RC18, 18-pin+PE
Connection cross-section
(flexible/rigid)
0.34…1.5 mm²
Rated insulation voltage
TZ…M, TZ…SR6
TZ…SR11
TZ…RC18
U
i
= 250 V
U
i
= 50 V
U
i
= 110 V
Rated impulse withstand voltage
TZ…M, TZ…SR6
TZ…SR11, TZ…RC18
U
imp
= 2.5 kV
U
imp
= 1.5 kV
Conditional short-circuit
current
100 A
Switching voltage, min.,
at 10mA
12 V
Utilization category acc. to EN60947-5-1
TZ…M, TZ…SR6 AC-15 4 A 230 V /
DC-13 4 A 24 V
TZ…SR11 AC-15 4 A 50 V /
DC-13 4 A 24 V
TZ…RC18 AC-15 4 A 110 V /
DC-13 4 A 24 V
Switching current, min., at
24 V
1 mA
Short circuit protection
(control circuit fuse) acc. to
IEC60269-1
4 A gG
Convent. thermal current I
th
4 A
Solenoid operating voltage/solenoid power consumption
TZ…024 AC/DC 24 V (+10%/-15%) 10 W
TZ…110 AC 110 V (+10%/-15%) 10 W
TZ…230 AC 230 V (+10%/-15%) 10 W
Duty cycle 100%
Locking force F
max
F
Zh
ACTUATOR Z-G…, HINGED
ACTUATOR Z-… 2,000N 1,500N
Limitations at ambient temperature above +70. .. +80 °C
Utilization category acc. to EN60947-5-1
TZ…SR6 AC-15 2 A 230 V /
DC-13 2 A 24 V
TZ…SR11 AC-15 2 A 50 V /
DC-13 2 A 24 V
Convent. thermal current I
th
2 A
Short circuit protection acc.
toIEC 60269-1
2 A gG
Reliability values acc. to ENISO13849-1
1)
B
10D
at DC-13 100mA/24V
3 x 10
6
1) Refer to the EU declaration of conformity for the issue date

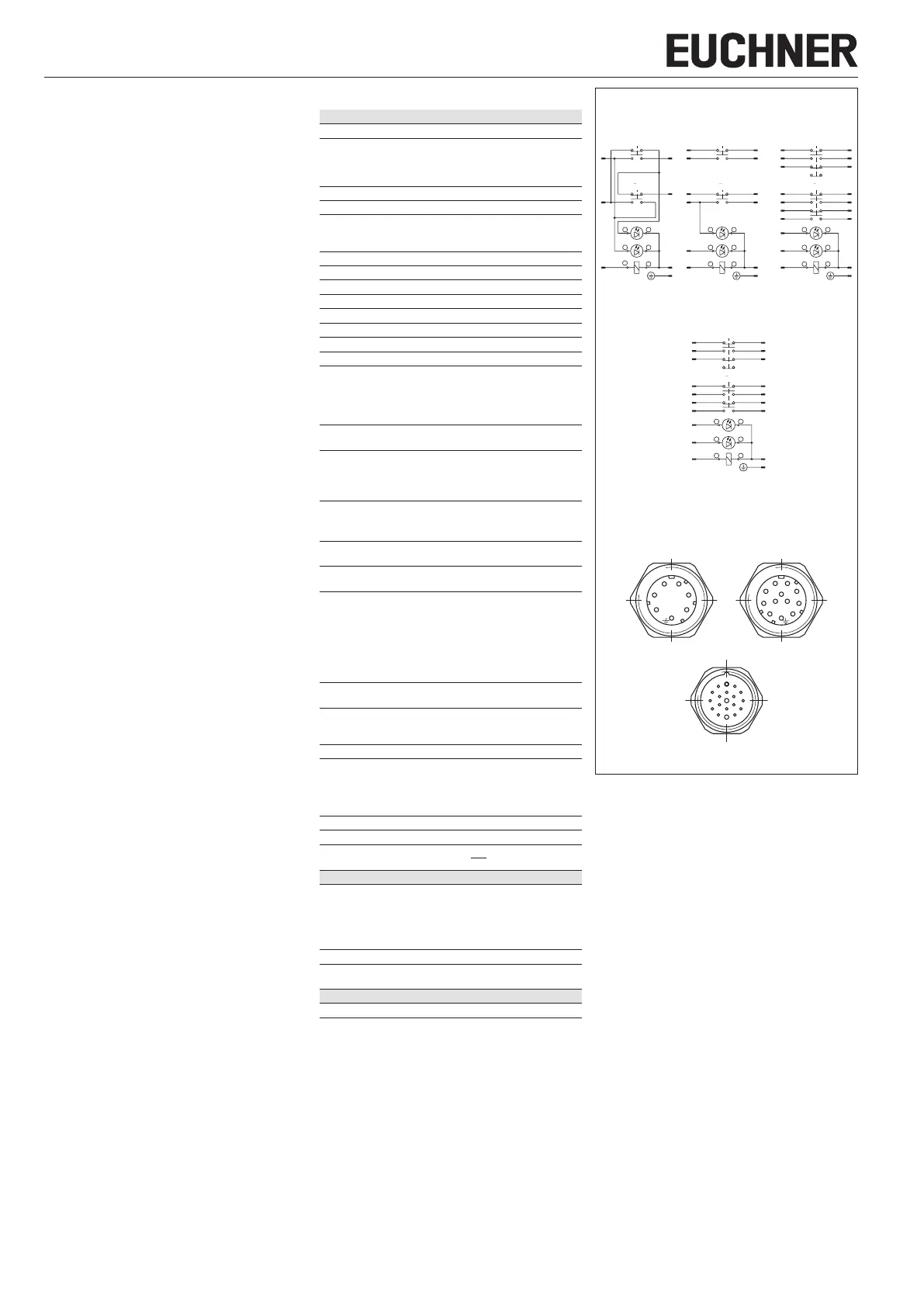

Fig. 3: Connector assignments
1
6
5
4
3
2
911
10
54
63
72
81
7
8
9
10
11
17
16
15
18
1
2
3
4
5
14
13
6
19
12
View of connection side on the safety switch
TZ..RC18
TZ..SR6 TZ..SR11
PE
3
1
1413
21 22
62
UK
SK
13
21 22
14 14
2221
13
4
3
5
6
LED
RD
2
1
16
15
41
33
42
34
14
87
13
10
2221
13 14 1817
9
3
1211
21 22
6
LEDGN
5
4
PE/12
11
12
19
UK
SK
34
42
33
41
SK
UK
3
86
9
PE
4
2
LEDG
N
2221
13 14
11
10 1
7
5
1
2
LEDRD
65
34
4
3
56
LEDRD
21
LEDGN
5
4
Illustration: guard closed, actuator locked
TZ..SR6 TZ..SR11 TZ..RC18
4
3
5
6
LED
RD
2
1
16
15
41
33
42
34
14
87
13
10
2221
13 14 1817
9
3
1211
21 22
4
LEDGN
19
6
PE/12
11
12
5
UK
SK
34
42
33
41
TZ..RC18...C1826
