MINI8 CONTROLLER: ENGINEERING HANDBOOK

HA028581 Page 259

Issue 15 Nov 15

24.3 Step 1 – View iTools OPC Server

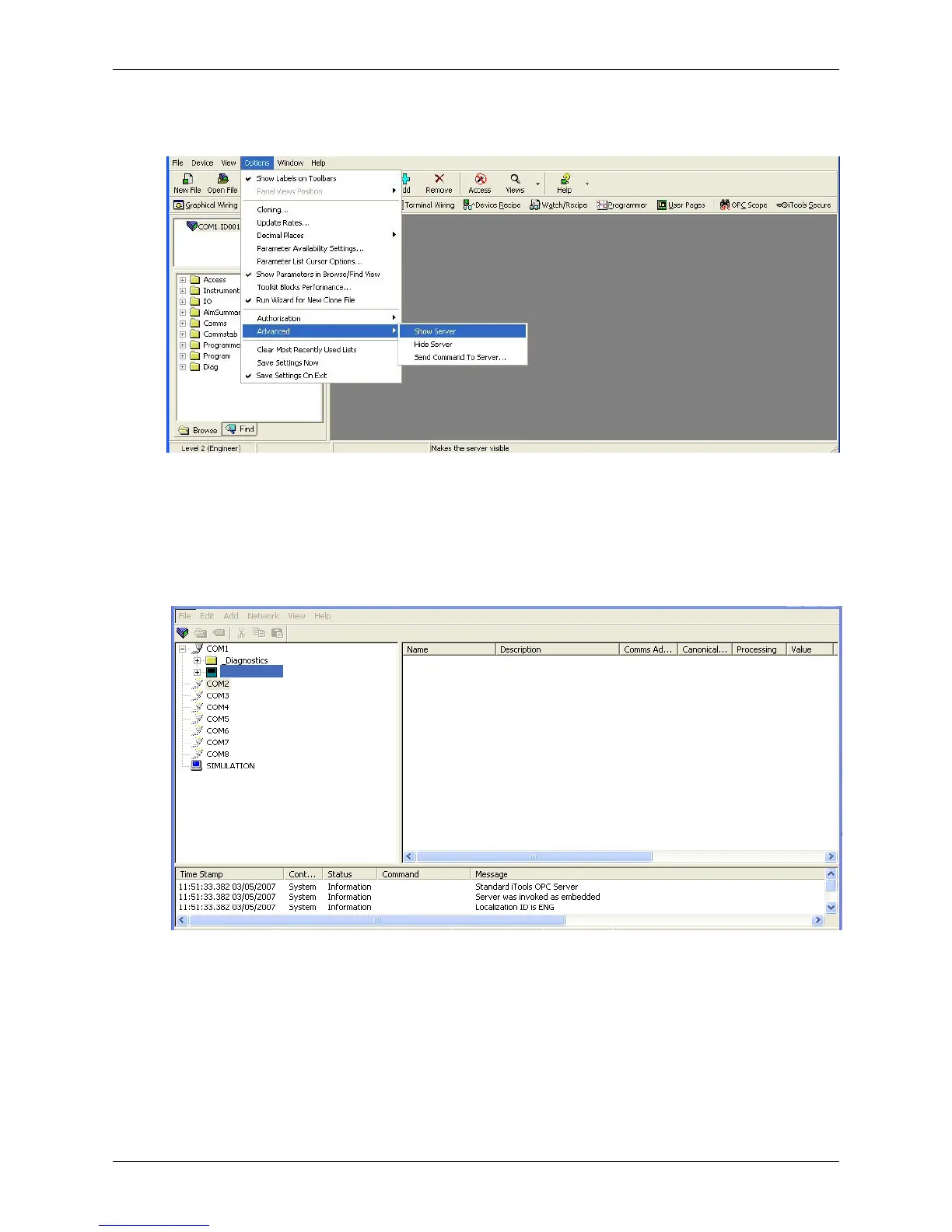

With iTools open and connected to the target instrument open the iTools OPC server using Options>Advanced>Show

Server.

Click on the OPC Server application on your windows Taskbar to view the server.

ID001-Mini8
