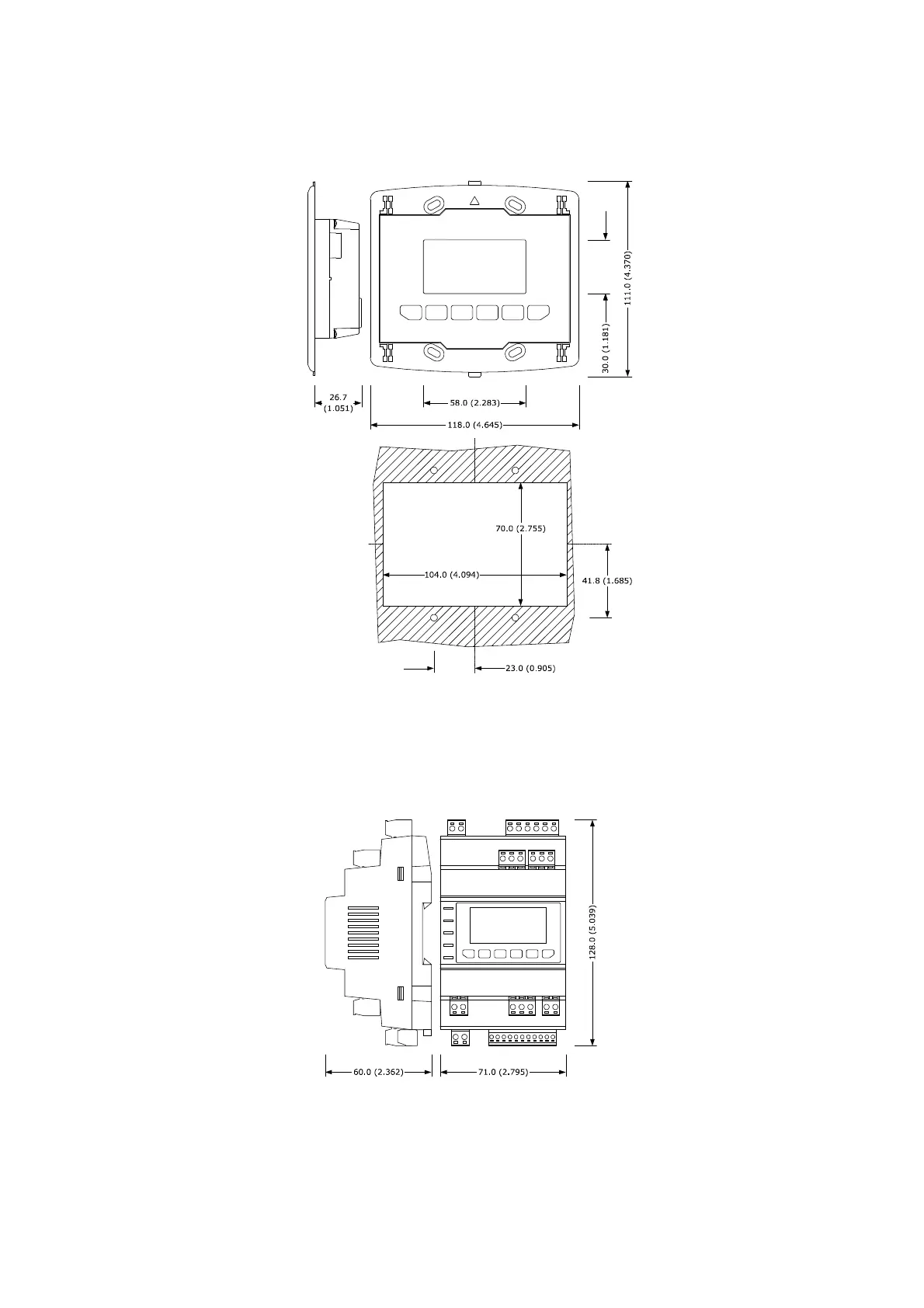

4.1.2 Vgraph remote user interface measurements
To be fitted to a panel; measurements are in mm (in).
4.1.3 EVDRIVE03 module measurements
4 DIN modules, installation with assembly on DIN rail; measurements are in mm(in).
