Evco EVDRIVE03 User Manual

EVCO S.p.A. EVDRIVE03 | User manual ver. 3.7 | Code 144EPDE374
Page 11 of 76
4 ELECTRICAL CONNECTION
4.1 Meaning of the connectors

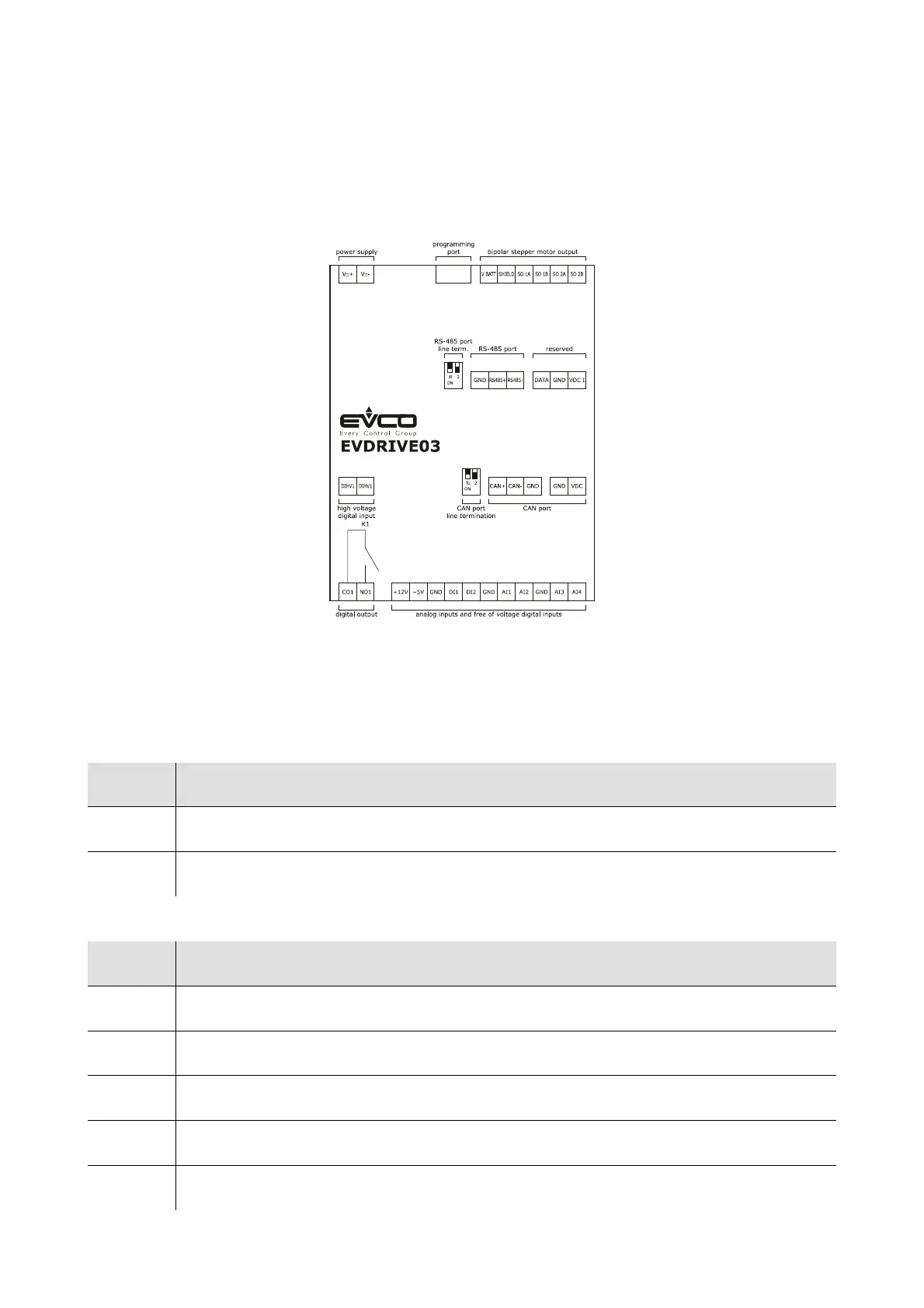

The following drawing shows the connectors of EVDRIVE03.
The following tables show the meaning of the connectors; for further information look at chapter 11 “TECHNICAL
DATA”.
Digital output
Electromechanical relay.
Terminal Meaning
CO1 common digital output
NO1 normally open contact digital output
Analog inputs and free of voltage digital inputs
Part Meaning
+12V power supply 0-20 mA/4-20 mA/0-10 V transducers (12 VDC ±10%, 60 mA max.)
+5V power supply 0-5 V ratiometric transducers (5 VDC ±5%, 40 mA max.)
GND ground analog inputs and free of voltage digital inputs
DI1 digital input 1 (non optoisolated free of voltage contact; 5 V when not loaded, 3.3 mA when loaded)
DI2 digital input 2 (non optoisolated free of voltage contact; 5 V when not loaded, 3.3 mA when loaded)
