EVCO S.p.A. EVDRIVE03 | User manual ver. 3.7 | Code 144EPDE374
Page 31 of 76

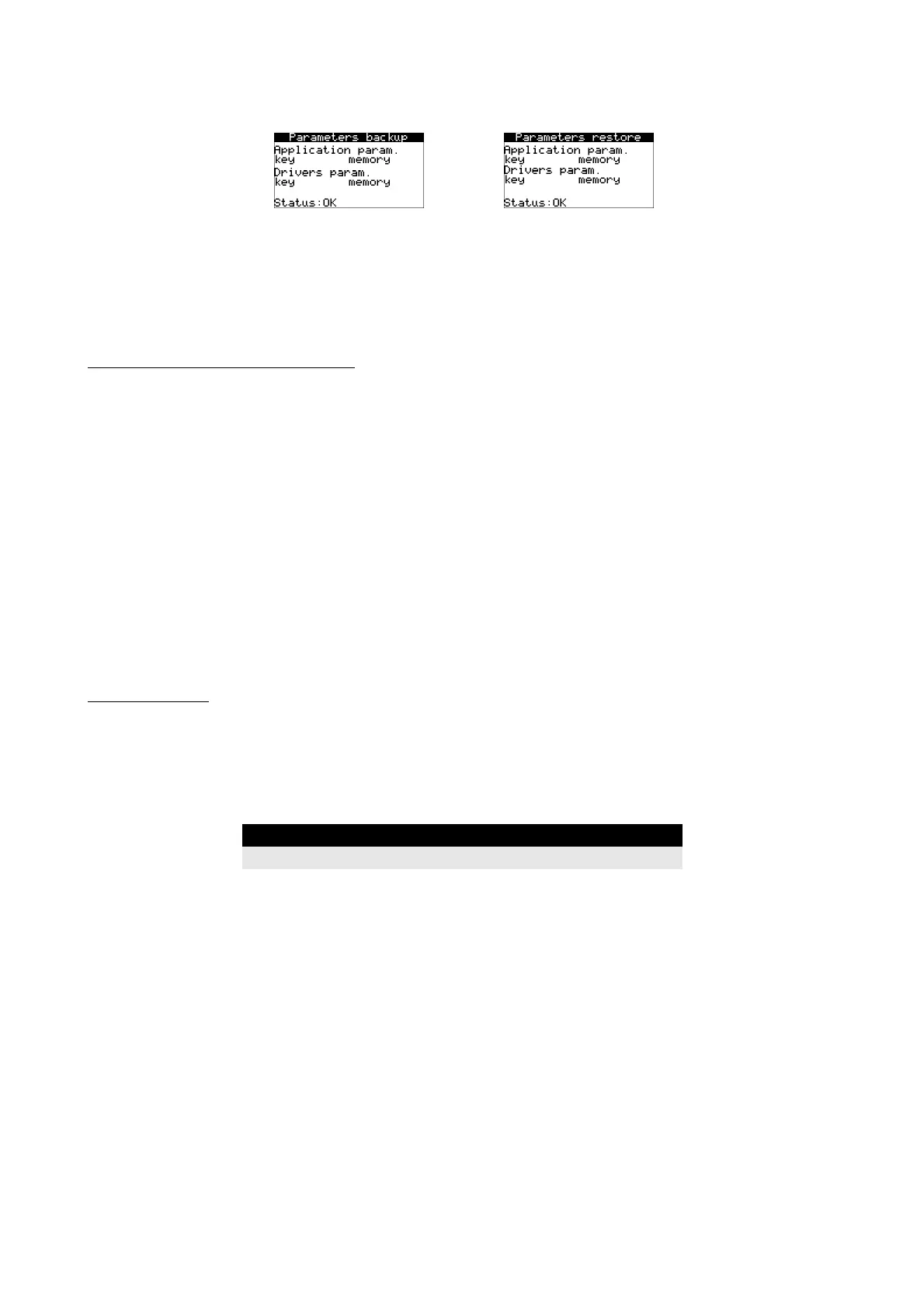

level 5 password level 5 password
page 37 page 38
The backup and restore functionalities are active only in Stand-by off (10). They are protected by the Level 5
password and permit to download a copy of the EVDRIVE03 application's parameters and/or the driver's
parameters (communication settings, etc.) in the memory or in the parameters key.
The user can restore the parameters with the copy in the memory or in the parameters key.
To modify a parameter operate as follows:
29. Press and release button UP or button DOWN to select possible submenus.
30. Press and release button ENTER.
31. Press and release button UP or button DOWN to select the parameter.
32. Press and release button ENTER.
33. Press and release button UP or button DOWN to modify the value.
34. Press and release button ENTER to confirm the value.
35. Press and release button ESC over and over again to go back to the previous pages.
7.3 Configuring a blind version
The following procedures show an example of configuration of a blind version through an user interface (in the
example Vgraph) and through its user interface.
For further information please consult the hardware manual of the user interface.
Operate as follows:
1. Switch off the power supply of the device and of the interface.
2. Connect the device to the interface through the CAN port; look at chapter 4 “ELECTRICAL CONNECTION”.
3. Keep pressed 2 s buttons ESC and RIGHT.
4. Switch on the power supply of the device and of the interface.
5. When the display of the interface will show the following menu release buttons ESC and RIGHT.
Vgraph
Parameters
Contrast
CAN Network
Modbus
Info
Real date and time
6. Press and release button UP or button DOWN to select “CAN Network”.
7. Press and release button ENTER.
8. Press and release button ENTER again to set the password value.
9. Press and release button DOWN over and over again to set “-19”.
10. Press and release button ENTER again.
11. Set parameter NW Node using button UP or button DOWN to select the parameter and using button ENTER to
modify and to confirm the value.
