29

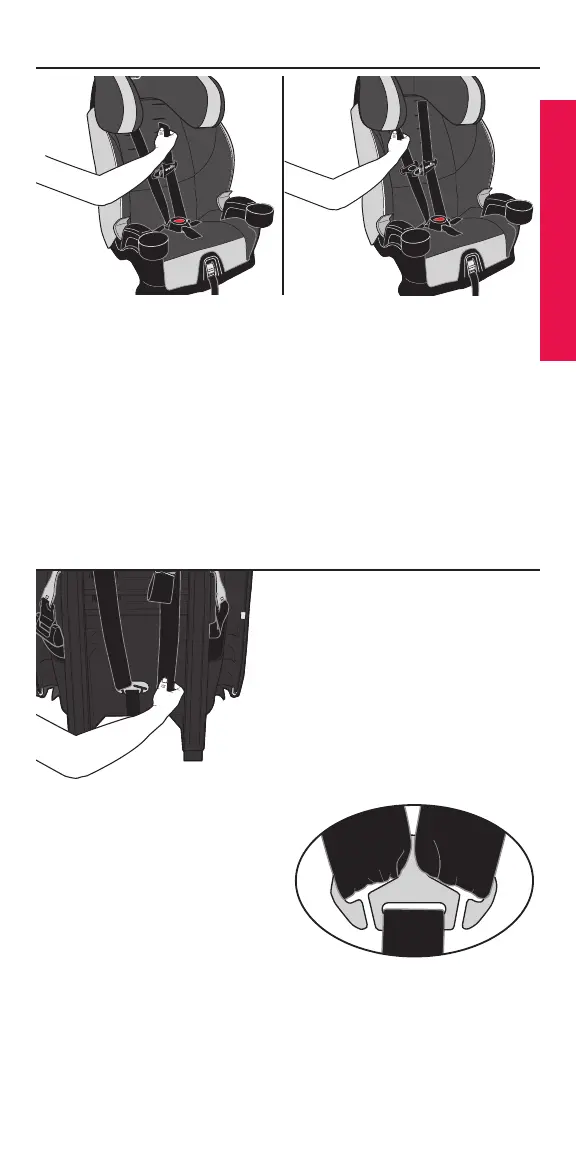

Using with the 5-pt Harness
4. Attach Harness
Straps to Splitter
Plate.
Attach the loop at the
end of each harness
strap onto the splitter
plate.
Positioning the Harness Strap
3. Move harness strap.
Remove both harness straps from the slots and
feed them into the new slot, as shown.
Pull the harness strap to the back of the child
restraint.
NOTE: Straps must be positioned at the child’s
shoulder level or in the closest position slightly
above.
IMPORTANT: When inserting harness straps through the
slots in the seat pad, make sure you route them correctly
through their corresponding slots in the seat shell.
IMPORTANT: Make sure
both harness straps are
installed completely on the
splitter plate. When properly
positioned, the straps will
appear bunched together
and will not lie flat (see
illustration).
