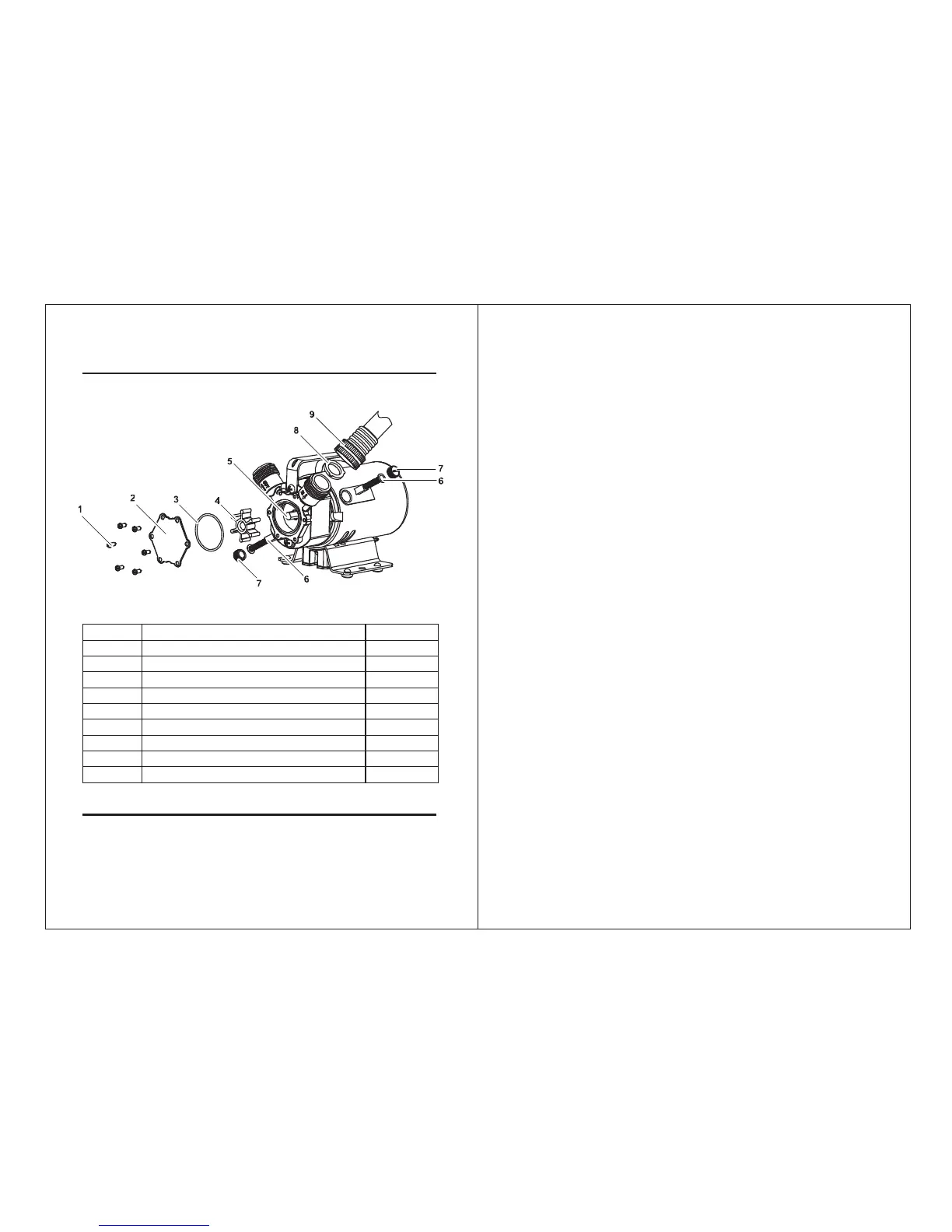

Repair Kit
Item
1
2
3
4
5
6
7
8
9
90*130mm
Quantity
N/A
N/A
1
1
N/A
2
N/A
1
N/A
Description
Screw
Impeller cover
O ring
Impeller
Motor Shaft
Brush
Brush cap
Washer
Hose
See reverse side for description of replacement parts.
Item #3 – O-ring (Qty. 1)
If you are noticing water leaking from the front of the pump, the
O-ring may be worn.
• To replace, using a Phillips head screwdriver, remove the 6 screws
(#1), and then remove the impeller cover (#2). Remove the old
O-ring (#3), and put in replacement. Reattach the impeller cover
and the 6 screws.
Item #4 – Impeller (Qty. 1)
If no water is being pumped, but your pump is running, and you are
using it properly, your impeller may possibly be worn or damaged.
This can happen from running the pump dry or not using the suction
strainer (debris enters pump and damages impeller).
• To replace, using a Phillips head screwdriver, remove the 6 screws
(#1), remove the impeller cover (#2), and then remove the O-ring
(#3). Remove the damaged impeller (#4), and push the
replacement onto the motor shaft (#5). Reattach the O-ring,
impeller cover, and 6 screws.
Item #6 – Brushes (Qty. 2)
Brushes help your motor to work properly. However, after extended
usage, it is normal for brushes to need replacement (after
approximately 150 hours of usage). If you don’t replace the brushes
when they become worn or dirty, your pump may not function to its
fullest capability, and the life of the pump will be shortened.
• There are 2 brushes (#6), one on each side of the motor. Using a
flathead screwdriver, remove the brush caps (#7), then pull out the
brushes (#6). Either clean the brushes, or replace with the new
brushes. Thread the brush caps back on and hand tighten.
Item #8 – Washer (Qty. 1)
If you are noticing water leaking from the clear hose connection at
the pump inlet, check to make sure the washer (#8) is in place
correctly. An airtight seal is needed at the inlet in order for the pump
to work.
• If you are going to replace the washer, remove the old washer (#8)
from the clear hose (#9), and replace it with the replacement
washer. Always make sure to make a tight connection on the inlet.
MAKE SURE PUMP IS UNPLUGGED BEFORE REPLACING ANY
PARTS! IF YOU HAVE ANY QUESTIONS ABOUT REPLACING
PARTS OR HOW TO OPERATE THIS PUMP,
PLEASE CALL THE PUMP EXPERTS AT
1-844-241-5521.
