Everdure DWF146PS - Water Connections; Cold Water Supply Connection; Drain Hose Connection and Setup

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD.
EARTHING
CONNECTION
n
n
Cold Water Connection
Drain hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to
avoid bending or crimping. Use the special plastic support that comes with the appliance. The free end of the hose
must be at a height between 40 and 100cm and must not be immersed in water.
WARNING!
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or Service technician if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
n
n
n

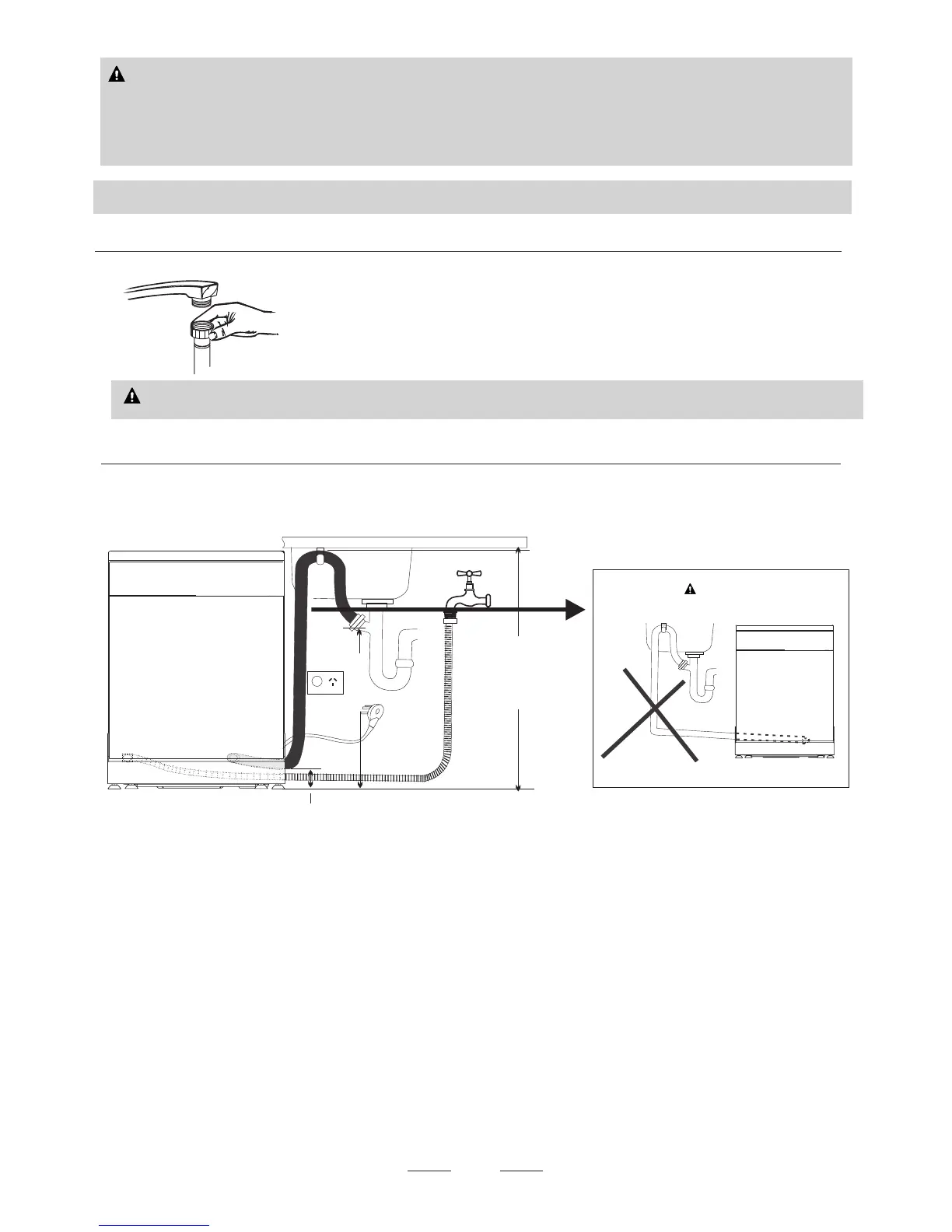

Water Connection
14
Max 1000mm
Min 400mm
FRONT VIEW
Inlet pipe connector
Drain pipe connector
POWER OUTLET
SINK
DISHWASHER
Min 100mm
WARNING!
DO NOT BEND IN ANY WAY !
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
When not being used for extended periods, please turn off the water supply tap.
WARNING!
Syphon Connection
The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dish. The water drain hose should be fixed by a hose clip.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
If the sink is more than 1000mm above the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
How to Drain Excess Water From Hoses
