Everdure FLINDERS - Exploded Component Diagrams

STYLE, GRILLED TO PERFECTION

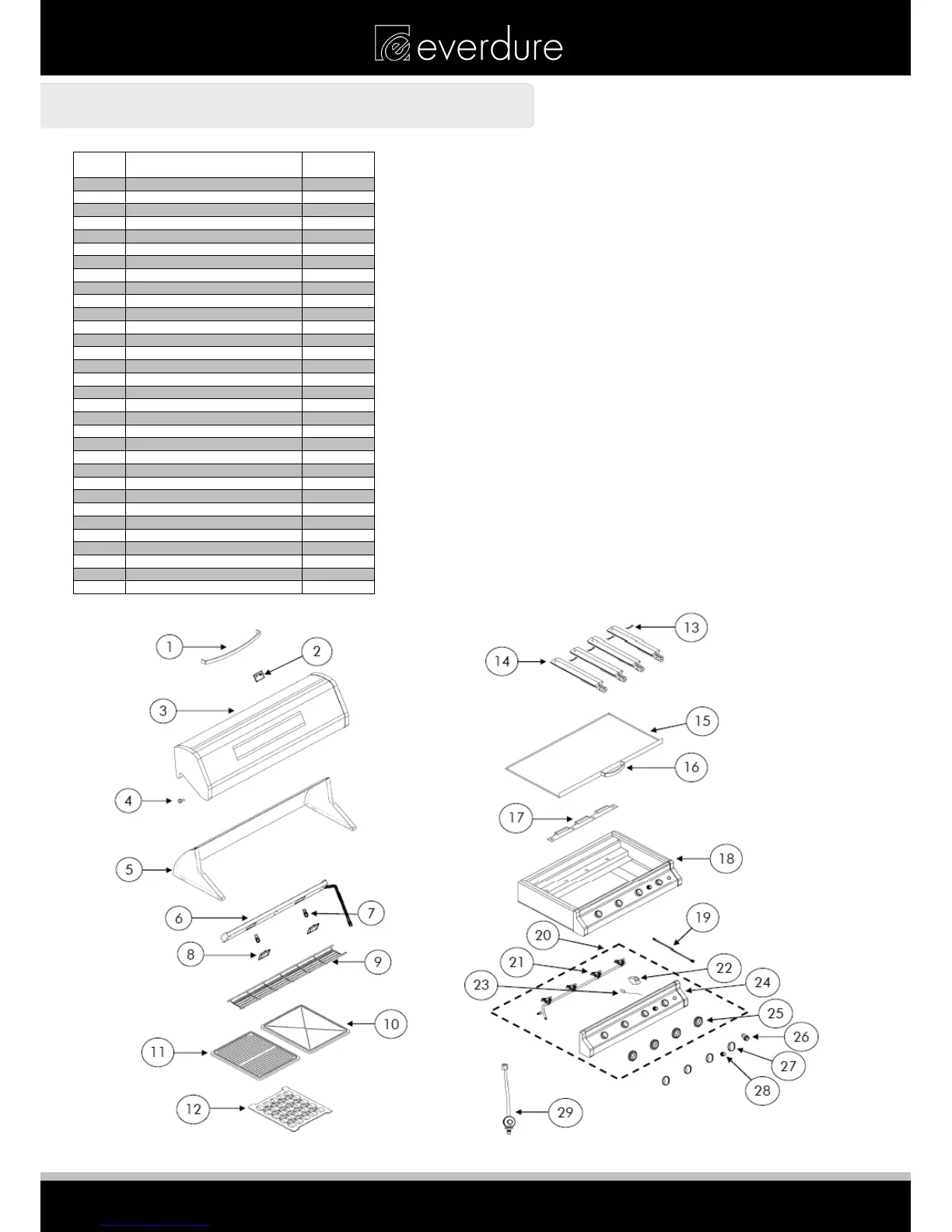

EXPLODED COMPONENT DIAGRAMS
REF DESCRIPTION
QTY USED
PER BBQ
4 BURNER
1.00 HOOD HANDLE 1
2.00 TEMPERATURE GAUGE 1
3.00 FRONT HOOD ASSY 1
4.00 HOOD HINGE BOLT 2
5.00 REAR HOOD no lighting panel 1
5.10 HOOD HARDWARE KIT 1
6.00 LIGHTING PANEL 0
7.00 GLOBE 20W 12V AC 0
8.00 GLASS COVER - LIGHT 0
9.00 WARMING RAC
K
1
10.00 HOT PLATE 1
11.00 GRILL PLATE 1
12.00 FLAME TAMER 1
13.00 LOCKING CLIP (rail burner) 4
14.00 RAIL BURNER 4
15.00 FAT TRA
Y
1
16.00 FAT TRAY HANDLE 1
17.00 CROSSOVER PANEL 1
18.00 CARCUSS / BODY 1
19.00 WIRING - LIGHT SWITCH 0
20.00 FACIA ASS'Y 1
21.00 GAS VALVE (includes injector) 4
21.10 INJECTOR 5
22.00 SINGLE POINT IGNITION BO
X
2
23.00 ELECTRODE & SHROUD 1
24.00 FACIA PANEL 1
25.00 BEZEL 5
26.00 LIGHT SWITCH 0
27.00 KNOB 4
28.00 IGNITION BUTTON 2
29.00 LPG HOSE & REGULATOR 1
32
