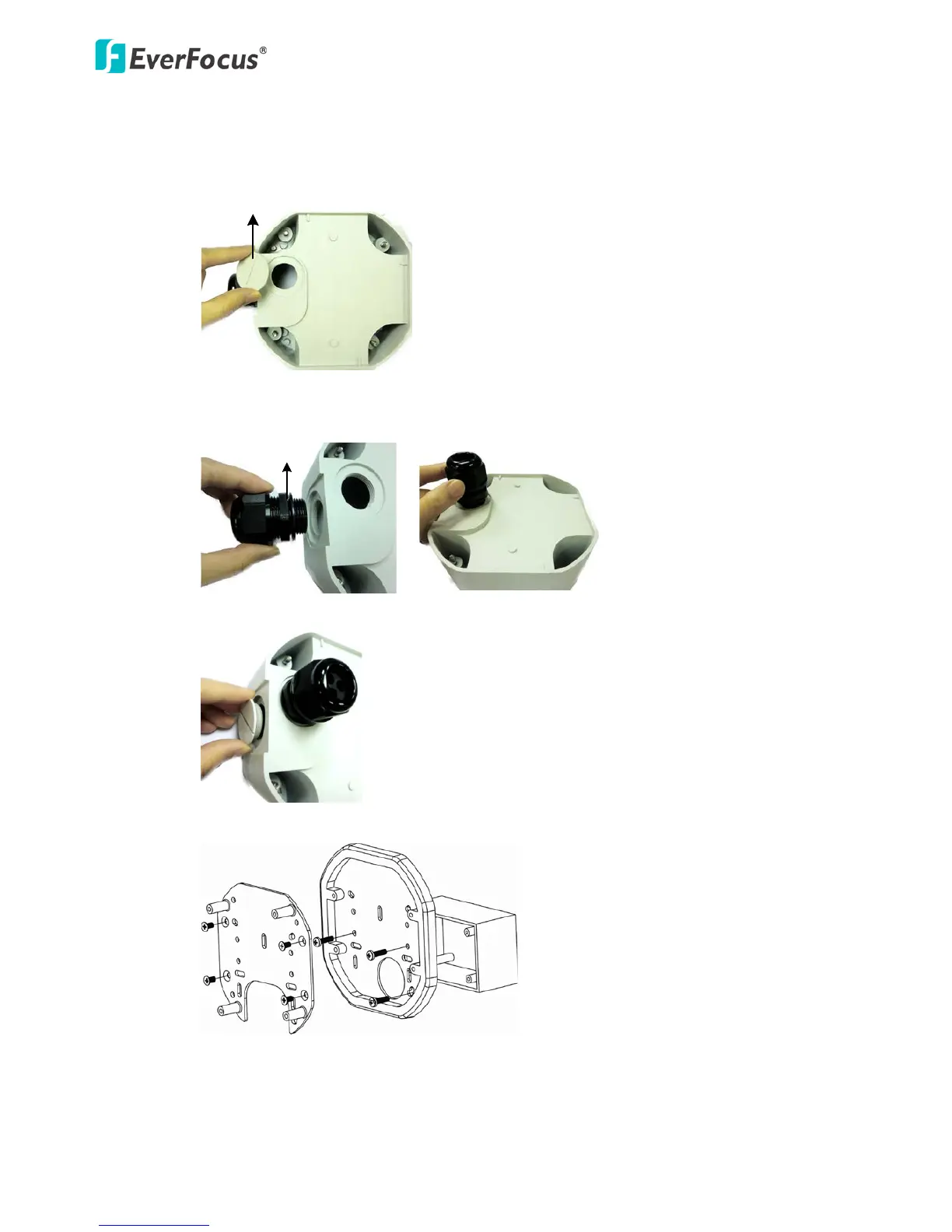

If you want to wire the cables through the bottom of the Camera Case, follow the steps below:
a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle
Plate using a coin.
Circle Plate
Camera Case
b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the
hole on the bottom of the Camera Case.
Cable Gland
Camera Case
c. Screw the Circle Plate to the side hole on the camera Case.
d. Screw an Adapter Plate between the Base Plate and Wiring Box.
Base Plate
Wiring Box
Adapter Plate
