Everglades CC 243 2012 - Page 58

58
Electrical System
When the switch is in the OFF position the pump
is controlled by an automatic oat switch that is
activated whenever the batteries are connected.
The pump will run as needed whenever the water
in the bilge accumulates high enough to raise the
oat switch to the ON position and turn off when
the water is removed.
Notice:
The bilge pump will start automatically when
there is sufcient water in the bilge to ac-
tivate the oat switch. The oat switch is
protected by a circuit breaker located in the
battery switch panel and is always supplied
current when the batteries are connected.
Nav/Anc Lights
The switch is a three-position switch. The middle
position is OFF. Moving the switch in one direc-
tion will activate the navigation lights. Moving
the switch in the opposite direction activates the
anchor light.
Red LED
(223 Center Console)
Activates the red led lights that illuminate the
cockpit on the 223 Center Console.
Courtesy Lights Red/White
(243 Center Console)
The switch is a three-position switch. The middle
position is OFF. Moving the switch in one direction
will activate the white cockpit lights. Moving the
switch in the opposite direction activates the red
cockpit lights.
Baitwell
Activates the centrifugal pump that supplies water
to the baitwell and the baitwell light.
Fresh Water
Activates the fresh water pump that supplies the
optional fresh water washdown in the cockpit. The
pump is the pressure demand type. The pressure
switch automatically controls the water pump
when the system is activated and properly primed.
Raw Water
Activates the raw water pump that supplies raw
water (seawater) to the raw water washdown hose
connection in the cockpit. The pump is the pres-
sure demand type. The pressure switch automati-
cally controls the water pump when the system is
activated and properly primed.
Fwd Fishbox
Activates the centrifugal pump that drains the
shbox.
Power Ports
Activates the power ports located below the port
and starboard gunnels in the cockpit.
12-Volt Receptacles
Provides electrical current for portable 12-volt
equipment. There are three 12-volt receptacles
on the 243 Center Console, two in the helm switch
panel and one in the console storage compart-
ment. There is one 12-volt receptacle in the helm
switch panel on the 223 Center Console.
MP3 Connection (Optional)
Located in the console storage compartment.
Provides an input for MP3 players to connect to
the boat stereo system.
Hardtop Switch Panel
A T-top with a berglass hardtop and liner is stan-
dard equipment. The hardtop on 223 models will
have a switch panel in the liner above the helm.
Circuit breakers that protect the accessories are
located in the panel near the switches. An LED
light built into the switches indicate that the circuit
is activated. The following switches are typically
located in the 223 Center Console hardtop switch
panel.
Red LED
Activates the red LED lights above the helm.
Flood Lights
Activates the forward and rear ood (spreader)
lights located on the hardtop that illuminate the
cockpit of the boat.

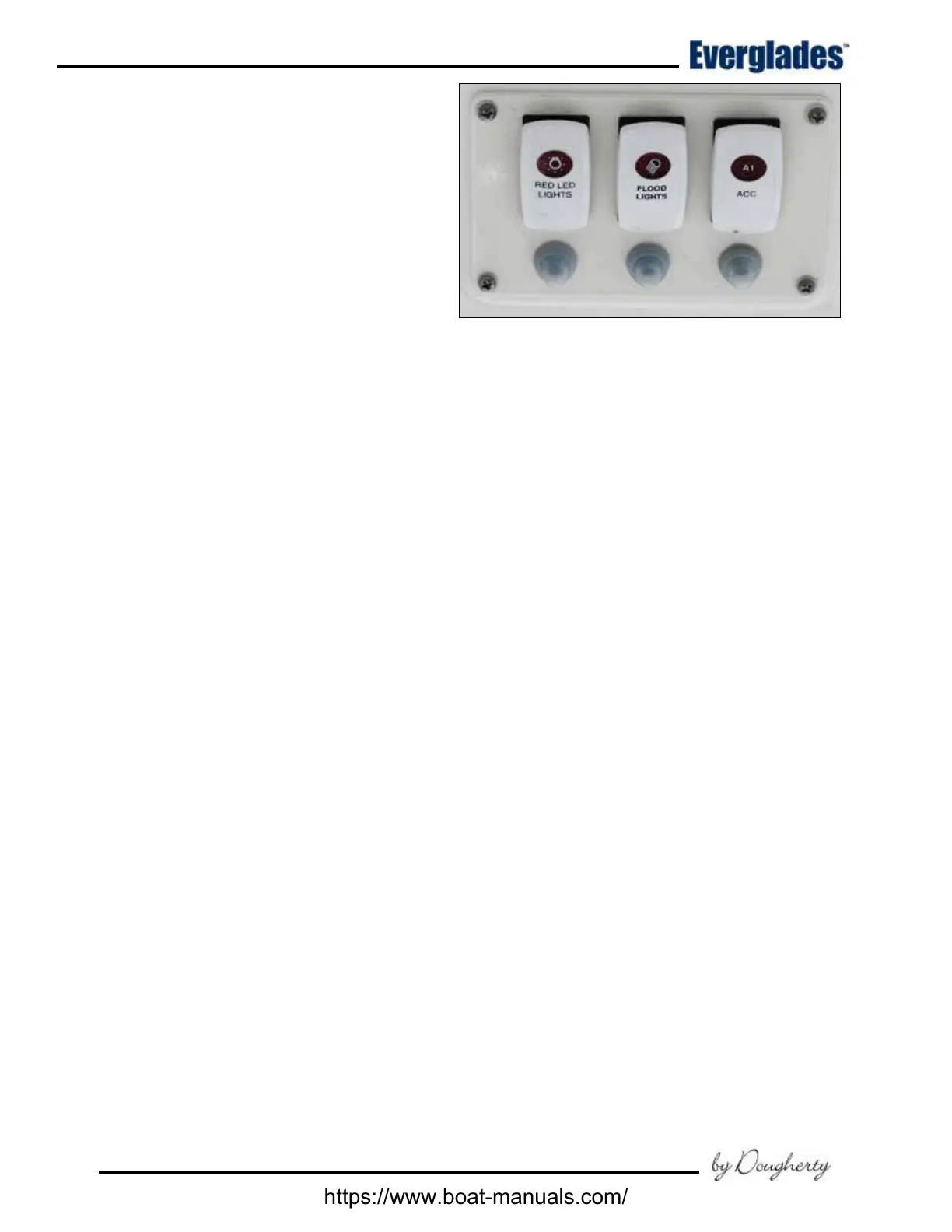

Typical Hardtop Switch Panel
