INTERIOR EQUIPMENT
12.1 223 Center Console
Storage Compartment
The console storage compartment is accessed
through doors on each side of the console. A
vent in each door provides ventilation for the
compartment.
A hinged hatch next in the rear bulkhead provides
access to the back of the upper section of the
helm station to service helm components or install
electronics. A large removable hatch provides ac-
cess to lower helm components, steering system
and controls.
Round access hatches in the compartment sole
provides access to the fuel gauge sender and fuel
tank ll and vent hose connections. The access
plates are threaded and must be rotated coun-
terclockwise to remove the panel and access the
equipment below.
12.2 243 Center Console
Head Compartment
The head compartment is equipped with a por-
table marine toilet and storage. The compart-
ment drains to the bilge through drain ttings in
the oor.
Ventilation is provided by vents in the cabin door.
There is also a 12-volt light in the head com-
partment that is activated by a switch near light
xture.
A hatch next to the light provides access to the
back of the upper section of the helm station to
service helm components or install electronics.
A large removable hatch provides access lower
helm components, steering system and controls.
Round access hatches in the forward compartment
sole provides access to the forward shbox pump
out, shbox hatch drain system, fuel gauge sender
and fuel tank ll and vent hose connections. The
access plates are threaded and must be rotated
counterclockwise to remove the panel and access
the equipment below.
Chapter 12:
223 Center Console

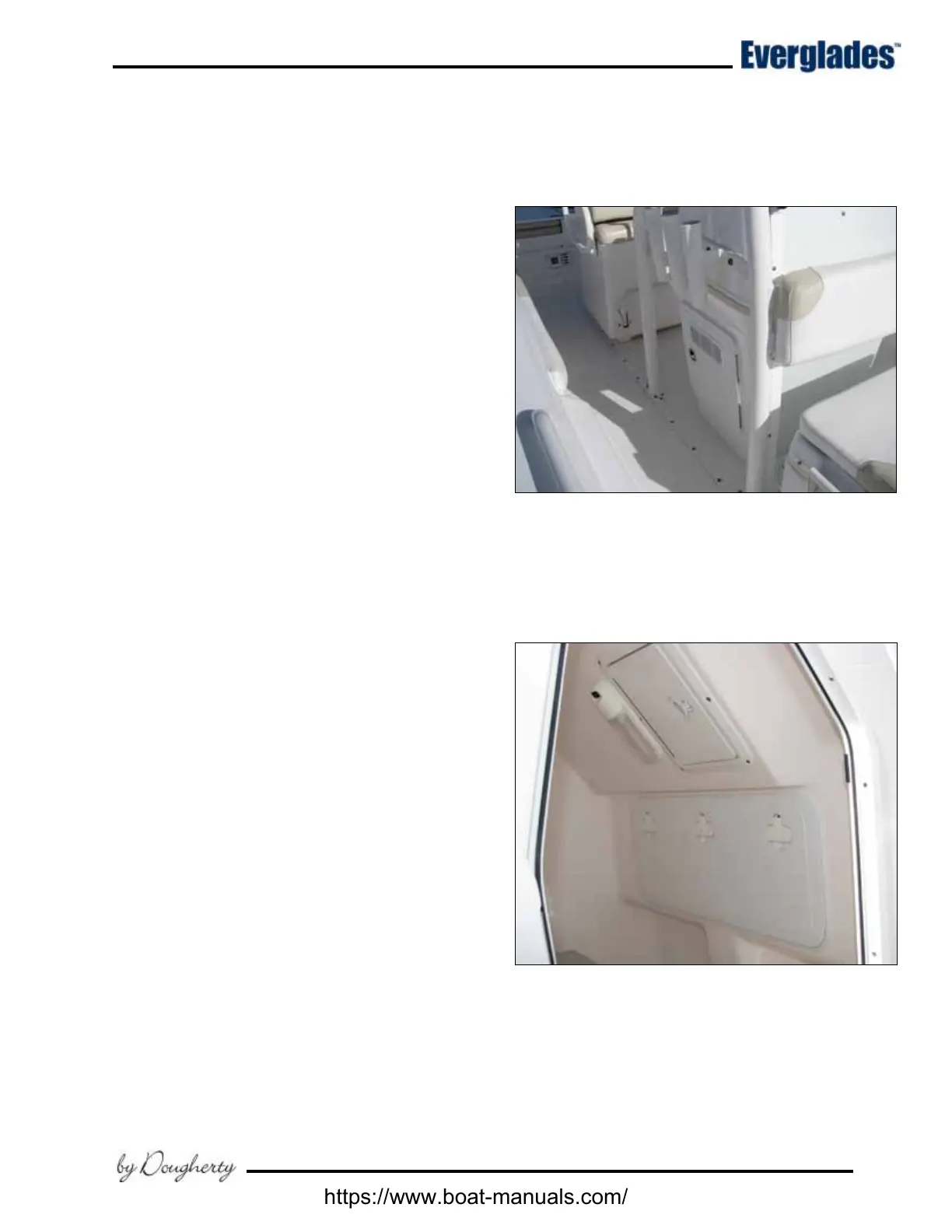

Console Storage Compartment Access Door
223/243 Center Console
Helm Access Hatches on Rear Bulkhead
