Everlast EV500 - Step 4: Press Bar and Arms Assembly

9
Assembly Instructions
Step 4
NOTE: Oil Bushing (small) (38)
have been Pre-assembled into
Upper Cross Bar (9).

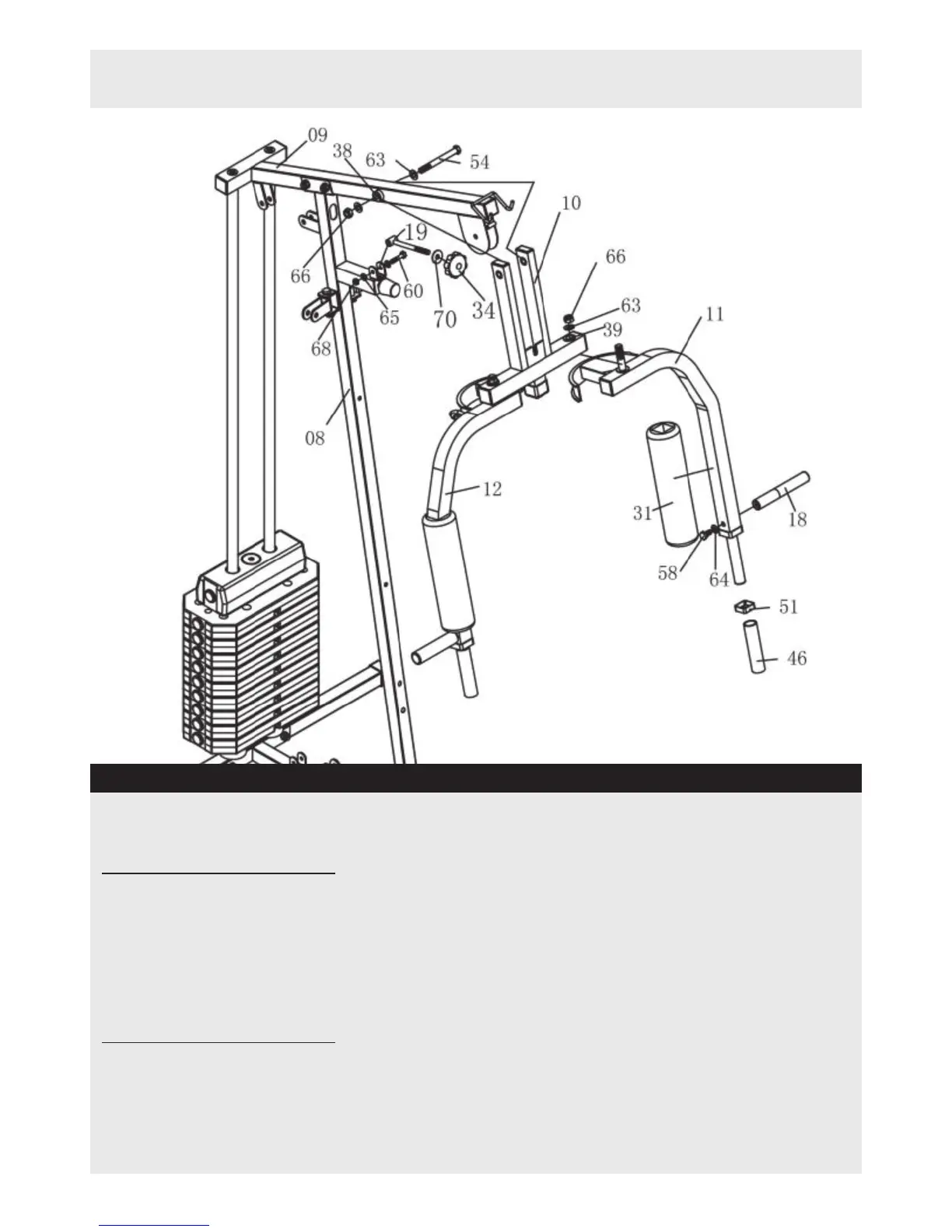

a. Attach the Press Bar (10) to the
Upper Cross Beam (9)using one
Hex Bolt (54), two Washers (63)
and one Nylock Nut (66).
NOTE: Oil Bushing (big) (39) have
been Pre-assembled into the Press
Bar (10).
b. Remove two Nylock Nut (66)
and M12 Washer (63) from the Left
Buttery Arm (11) and the Right
Buttery Arm (12).
c. Attach the Right Buttery Arm
(12) and Left Buttery Arm (11)
to the Press Bar (10) using two
Washers (63) and two Nylock Nuts
(66).
d. Slide Arm Foam Roller (31) onto
Right Buttery Arm (12) and Left
Buttery Arm (11). (Note : A light
appication of washing up liqued will
assist.)
e. Remove two Hex Bolts (58) and
Washer (64) from the Handle Tube
(18).
f. Attach the Handle Tube (18) to
the Right Buttery Arm (12) and
Left Buttery Arm (11) using two
Hex Bolts (58) and two Washers
(64).
g. Slide the Middle-empty Cap (51)
and two Handle Grips (46) to the
Right Buttery Arm (12) and Left
Buttery Arm (11).
h. Attach the Tobacco-pipe (19) to
the Support Frame (8) using one
Hex Bolt (60), two Washers (65)
and one Nylock Nut (68).
i. Slide the Washer (70) and
Plum Blossom Nut (34) onto the
Tobacco-pipe (19).
