10

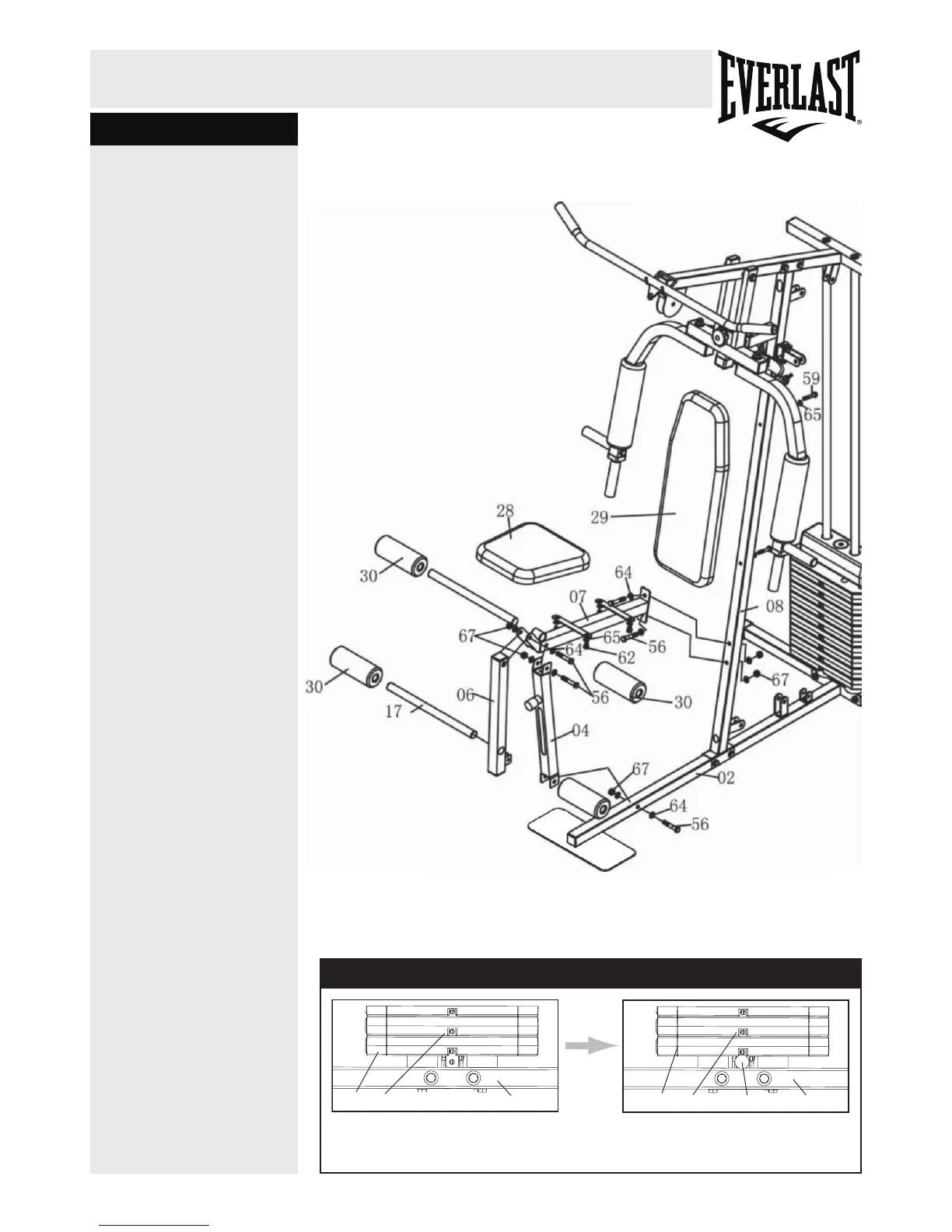

Assembly Instructions
a. Attach the Back Cushion
(29) to the Support Frame
(8), using two Hex Bolts
(59) and two M8 Washers
(65).
b. Attach the Front Support
Frame (4) to the Front Base
Frame (2) using one Hex
Bolts (56), two Washers
(64) and one Nylock Nut
(67).
c. Attach the Seat Base
Frame (7) to the Front
Support Frame (4) and the
Support Frame (8) using
three Hex Bolts (56), six
Washers (64) and three
Nylock Nuts (67).
d. Attach the Seat Cushion
(28) to the Seat Base
Frame (7), using four
Hex Bolts (62) and four M8
Washers (65).
e. Attach the Leg Extension
Frame (6) and the Seat
Base Frame (7), using one
Hex Bolt (56), two Washers
(64) and one Nylock Nut
(67).
f. Attach the Foam Tube
(17)into the Leg Extension
Frame (6) and the Seat
Base Frame (7), then slide
Leg Foam Roller (30) onto
the Foam Tube (17).
Step 5
When your home gym is not in use, ensure the weight Selector pin (21) is
located through the welded loop on the back of the base frame and into the
Selector shaft (5). This will lock the weights in place.
SAFETY NOTE
11 21525 255
