Assembly Instructions

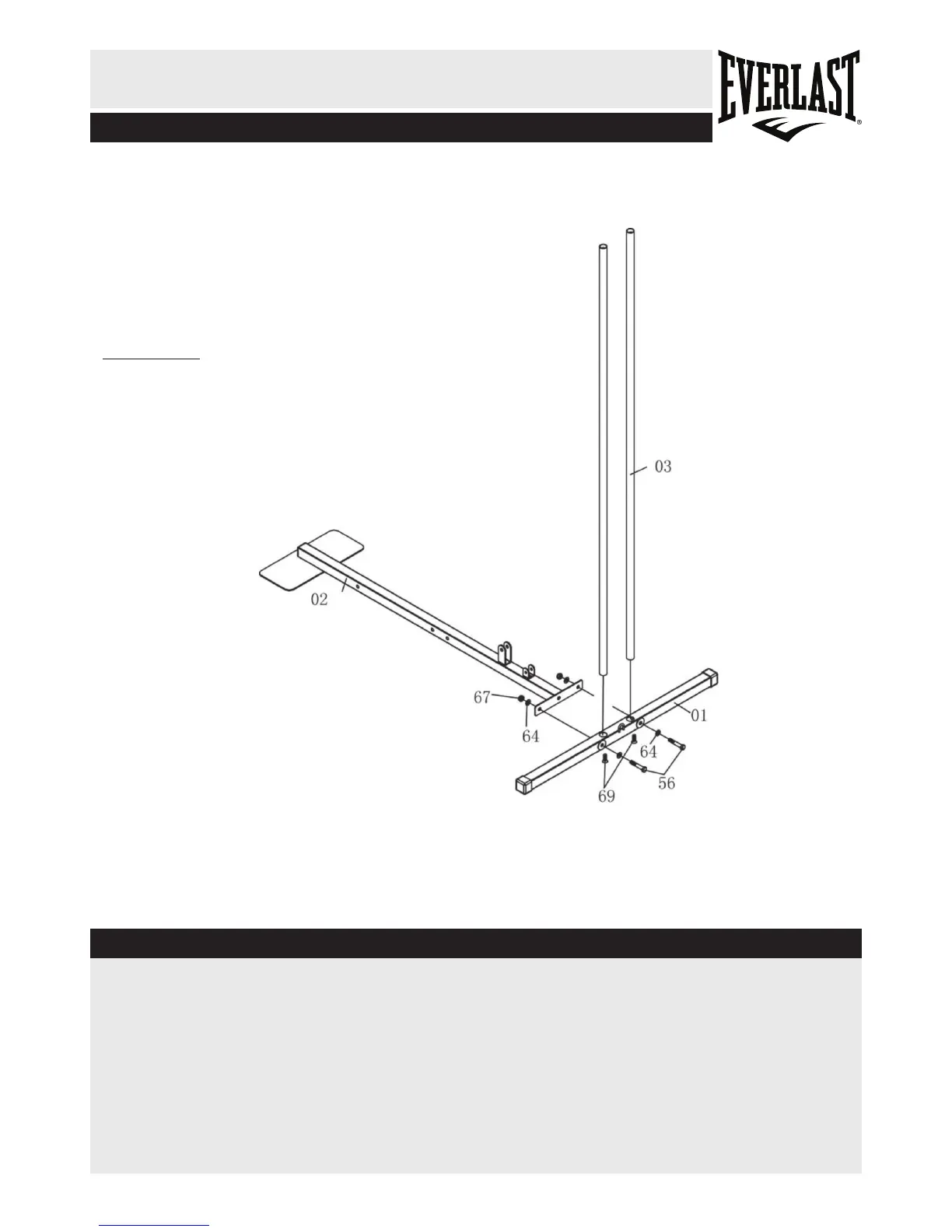

Step 1
a. Remove two Bolts (69) from two
Weight Guide Tubes (3).
b. Insert the Weight Guide Tube (3)
into the Rear Base Frame (1) using
two Bolts (69).
c. Attach the Front Base Frame (2)
to the Rear Base Frame (1), using
two Hex Bolts (56), four Washers
(64)and two Nylock Nuts (67).
UNPACK THE CARTON AND
PLACE ALL PARTS ON THE
FLOOR CAREFULLY
REMOVE ALL PACKING
MATERIAL AND CHECK EACH
PART AS THE MANUAL FIRST,
REMEMBER SOME PARTS
ARE PRE-FITTED TO LARGER
COMPONENTS.
IMPORTANT
ASSEMBLE WITH ALL NUTS
AND BOLTS LOOSE AT
FIRST, ONLY TIGHTEN AFTER
COMPLETING ALL ASSEMBLY
STEPS.
