Everlast EV500 - Step 3: Frame Support Assembly

8
Assembly Instructions

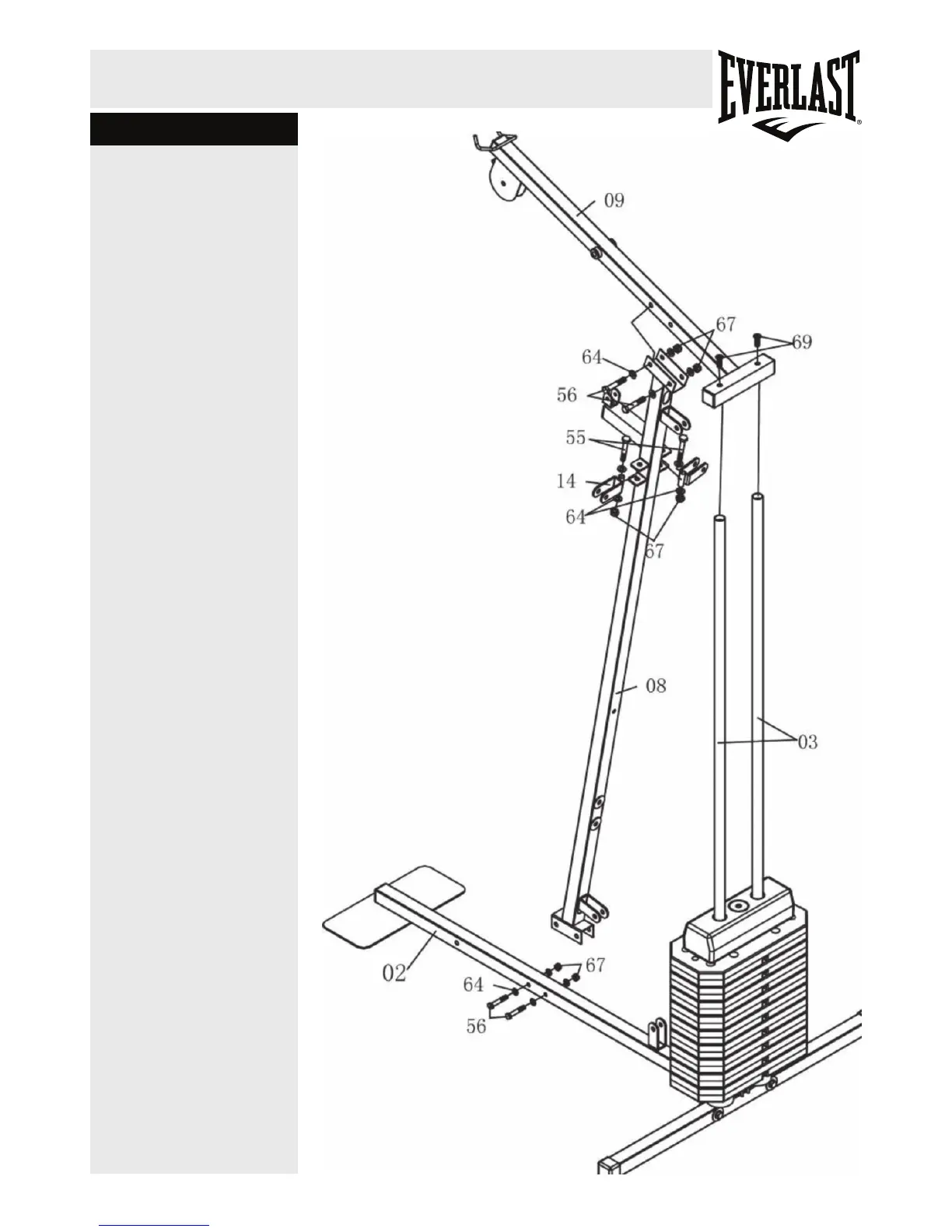

Attach the Support Frame
(8) to the Front Base frame
(2) using two Hex Bolts
(56), four Washers (64)
and two Nylock nuts (67).
Remove two Bolt (69)from
two Weight Guide Tubes
(3).
Attach the Upper Cross
Beam (9) to the two Weight
Guide Tubes (3) using two
Bolts (69).
Attach the Upper Cross
Beam (9) to the Support
Frame (8) using two Hex
Bolts (56), four Washers
(64) and two Nylock Nuts
(67).
Attach the two Single
Pulley Blocks (14) to the
Support Frame (8), using
two Hex Bolts (55), four
Washers (64) and two
Nylock Nuts (67).
Step 3
