7.2.2. Upgrading the Frame Controller Image using VistaLINK
®
.
1. Start a VistaLINK
®
PRO client and
login using the Administrator user
account (VLPRO-C does not use
login accounts).
2. Expose the 7700FC in the
hardware tree using ‘Add/Update
Frame’ and collapsing the nodes
in the tree appropriately.
3. Use the right-click mouse button
on the ‘7700FC’ in the tree and
select ‘View configuration’.
4. Select the ‘Control’ tab in the
configuration view.
5. Click the ‘Browse’ button to select
the unzipped 7700FC Image file
downloaded in section 7.2.1
above.
6. Click the Upgrade button and wait
for the upload to complete. This
will take approximately 5 to10
minutes depending on network
traffic.
7. Upon completion, the 7700FC
module will reboot automatically
and return online in normal “run”
mode.

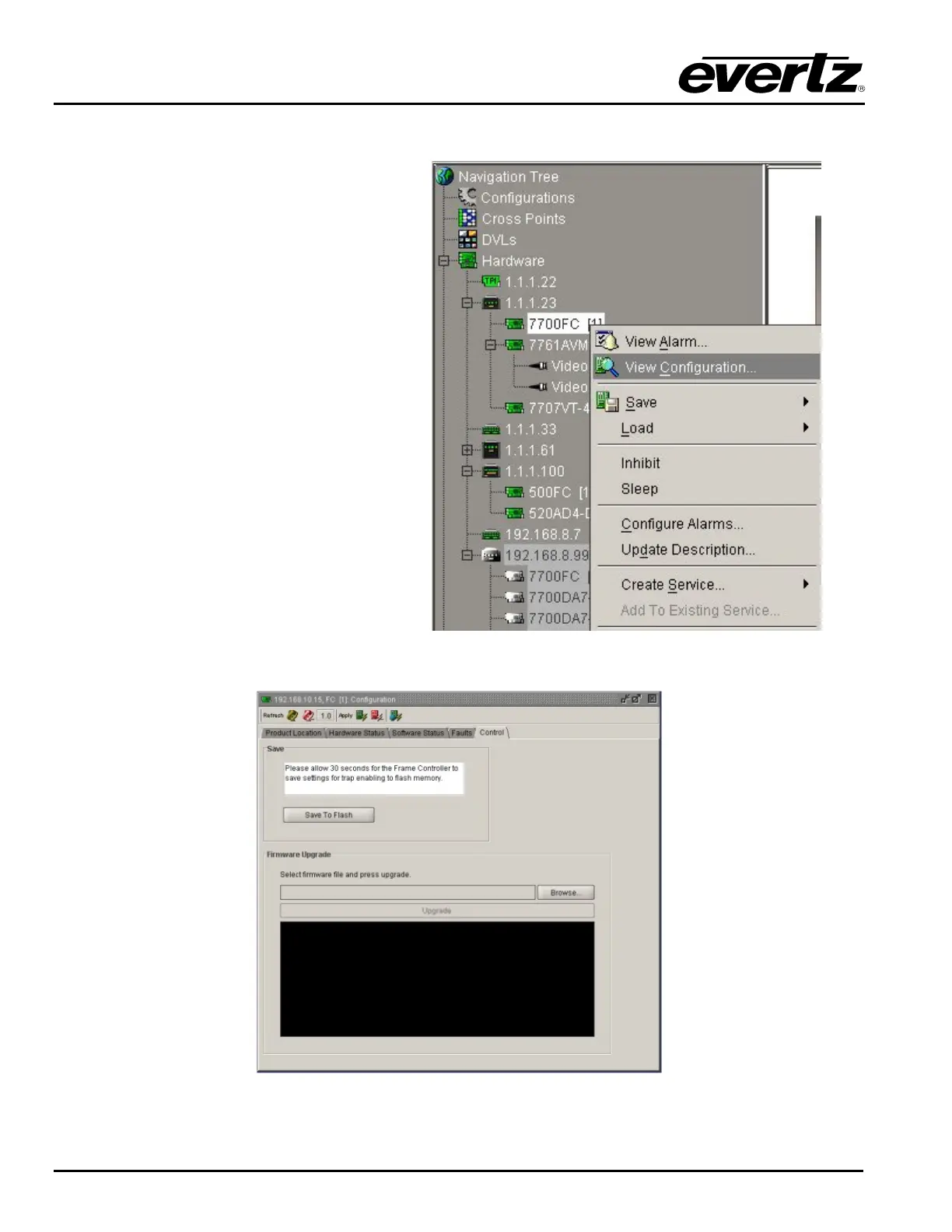

FC shown in the hardware tree
