7700 MultiFrame Manual
7700FC VistaLINK® Frame Controller
Revision 1.4.7 7700FC-1
1. OVERVIEW
The 7700FC Frame Controller card provides a single point of access to communicate with VistaLINK
®
enabled 7700 series of cards. The 7700FC provides a 10Base-T/100Base-TX Ethernet port and
communication is facilitated through the use of Simple Network Management Protocol (SNMP). The
7700FC handles all SNMP communications between the frame (7700FR-C) and the network manager
(NMS), and serves as a gateway to individual cards in the frame. The 7700FC also provides a RS-232
serial port for customer configurations.
Features:
• Complies with IEEE 802.3 100Base-TX and 10Base-T Ethernet standards
• 100 Mbps Fast Ethernet or 10 Mbps Ethernet data transfer, selected by auto-negotiation
• Full duplex or half-duplex operation, selected by auto negotiation
• RJ-45 connector for network cable connection
• RS-232 serial control port for configuration
• Front panel LEDs indicate module fault, microprocessor state, activity and link status
• Rear panel LEDs indicate Ethernet link, activity and speed
• Supports “ftp” upgrades for frame-wide firmware upgrades (product specific)
• Provides frame/chassis status information through enabled hardware via VistaLINK
®
including power
supply status, frame status, card insertion/removal counters, 7700FC software version number, LED
control
Female DB-9
RS-232
Processor
State LEDs
Diagnositic
LEDs
Activity
Link
Speed
RJ-45
Ethernet
10 Base T
100 Base Tx
CPU
USB
Host
Controller
32 MB
SDRAM
64 MB
Flash
Frame Status
Upgrade Port
Frame Communication
10/100
Ethernet
MAC/PHY

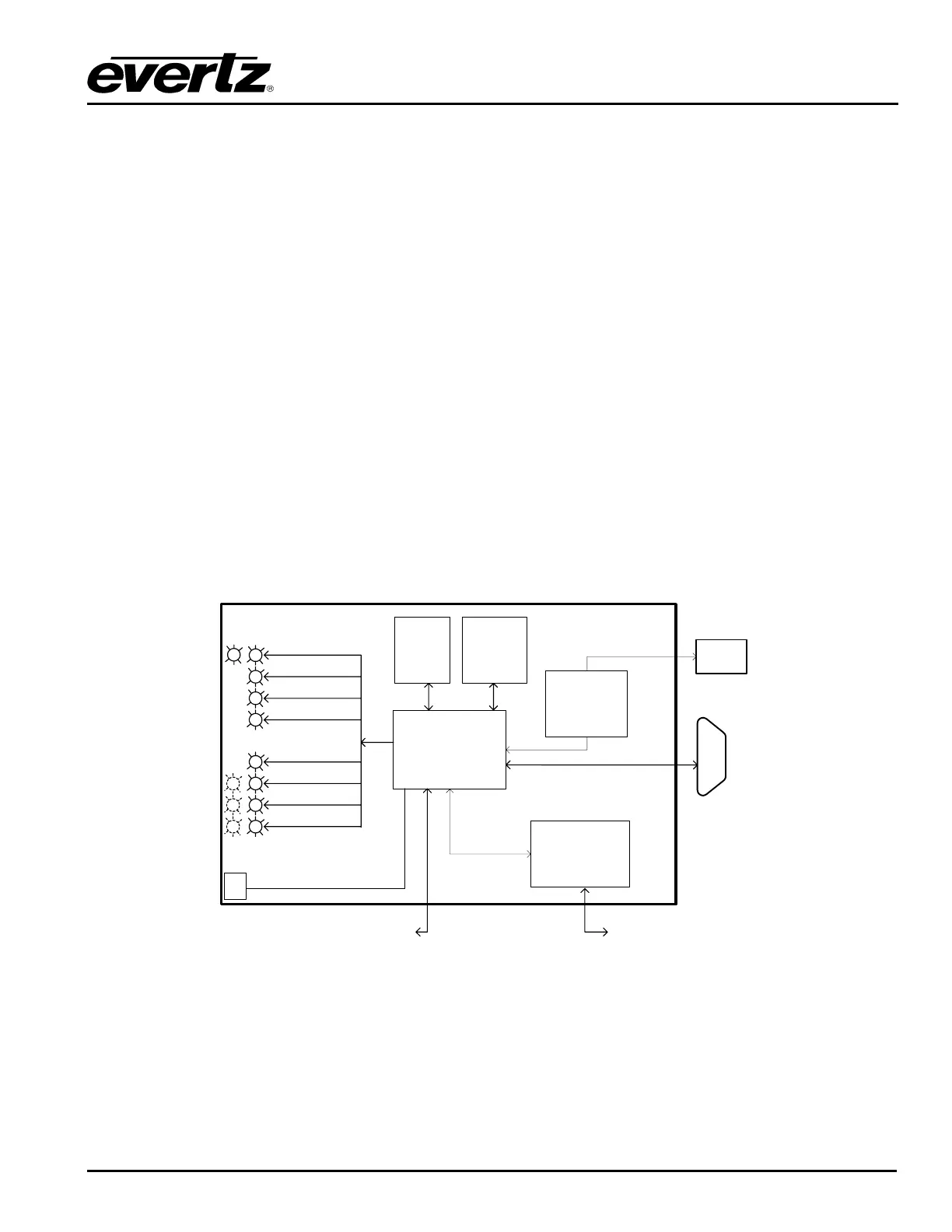

Figure 1: 7700FC Block Diagram
This product includes software developed by the University of California, Berkeley and its contributors. Copyright (c) 1982, 1986, 1991, 1993 The
Regents of the University of California. All rights reserved. For more information, please visit www.netbsd.org.
