17

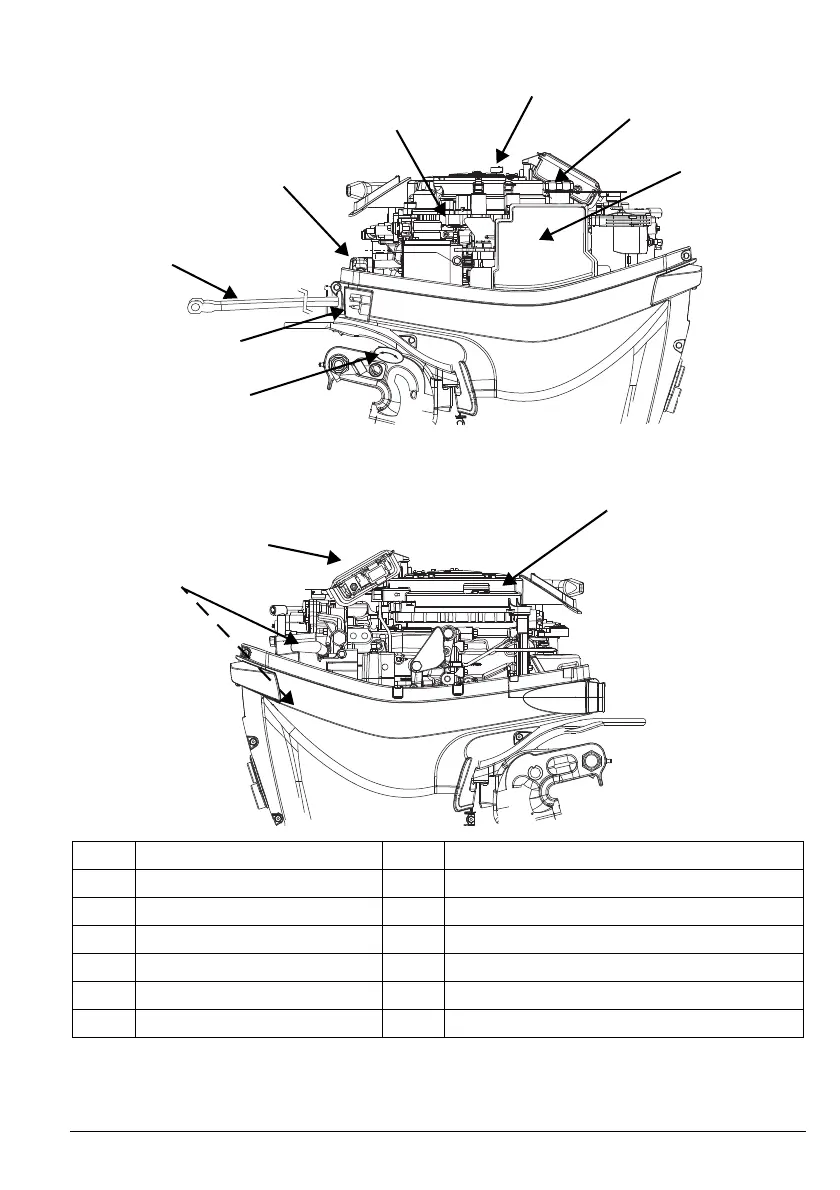

Component Identification – Power Tilt Models
Item Description Item Description
8 Tilt Support Lever 14 Oil Fill Cap
9 Fuel Connector 15 Oil Tank
10 Battery Cables 16 Spark Plugs
11 Air Silencer 17 EMM (Engine Management Module)
12 Spare Fuse 18 Rewind Starter / Flywheel Guard
13 Fuse
16
17
18
006999
Starboard
11
9
15
12
13
14
006998
Port
8
10
