 Operation
Remote Controls - Evinrude (BRP) Controls
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude com-
ponents. Evinrude controls deliver the cable stroke your outboard needs for positive shift and
throttle control, and they incorporate such safety and convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with Evinrude Modular Wiring System (MWS)
 WARNING
If you choose a non-Evinrude remote control, it must have a start-in-gear prevention
feature. This feature can prevent injuries resulting from unexpected boat movement
when the engine starts.

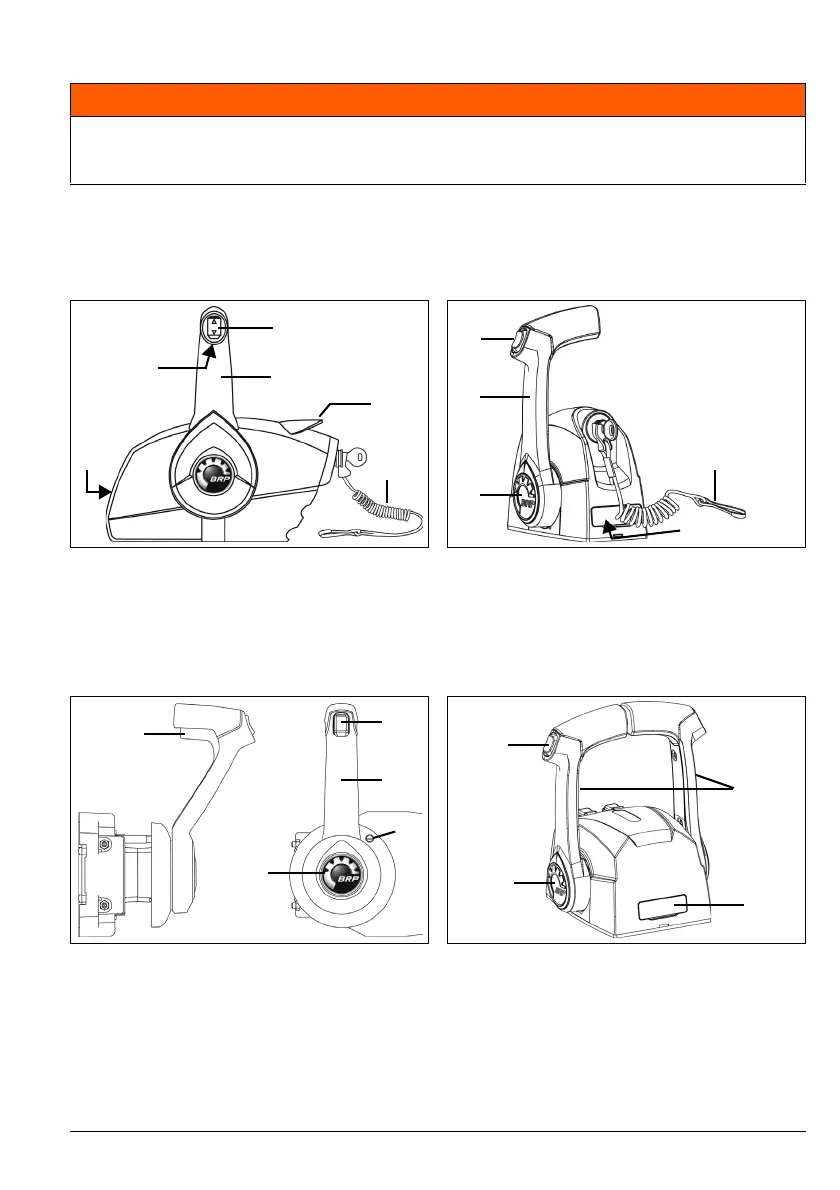

Side Mount Control 006448
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle lever (warm-up)
5. Throttle friction adjusting screw
6. Engine cut–off switch clip and tether cord
Concealed Side Mount Control 006447
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle button (warm-up)
5. Throttle friction adjusting screw
5
1
4
6
3
2
5
1
2
3
4
Single Lever Binnacle Mount Control 006446
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5. Engine cut–off switch clip and tether cord
Dual Lever Binnacle Mount Control 006445
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
3
2
4
1
5
1
2
3
4

Evinrude E-TEC G2 Specifications

General

Bore x Stroke	Varies by model
Full Throttle RPM Range	5400-6000 RPM
Alternator Output	133 Amps Total / 50 Net Dedicated
Lubrication	Multi-point targeted oiling
Cylinder Configuration	V6
Gear Ratio	1.85:1
Starting	Electric
Engine Type	2-stroke
Shaft Length	20", 25", 30"
Fuel Induction	Direct Fuel Injection (DFI)
Emissions	EPA 2013
Horsepower Range	150 - 300 HP
Fuel Type	87 Octane
Weight	505 - 635 lbs (varies by model)
