Using Your Evinrude E-TEC Outboard
of the switch to increase speed. Engine speed
changes in 50 RPM increments.
This switch can be used to fine tune speeds
between 600 to 2300 rpm. Advance the throt-
tle twist grip to desired rpm. Use switch to in-
crease or decrease engine speed.
Shifting out of gear or changing throttle twist
grip position will deactivate speed control.
Stopping the engine restores the factory idle
speed setting.
Trim/Tilt Switch
If equipped, the trim/tilt switch is located in the
end of tiller handle. Press switch as indicated
for UP and DOWN operation.
Tiller Handle Adjustments
Tiller Handle Angle
Tiller handle angle can be raised or lowered
by turning the adjustment screw under the
handle.
Tiller Handle Ratchet
Tiller models feature a ratchet which holds the
tiller arm at approximately 30° or 90° posi-
tions. Press up on the release lever to lower
tiller arm.

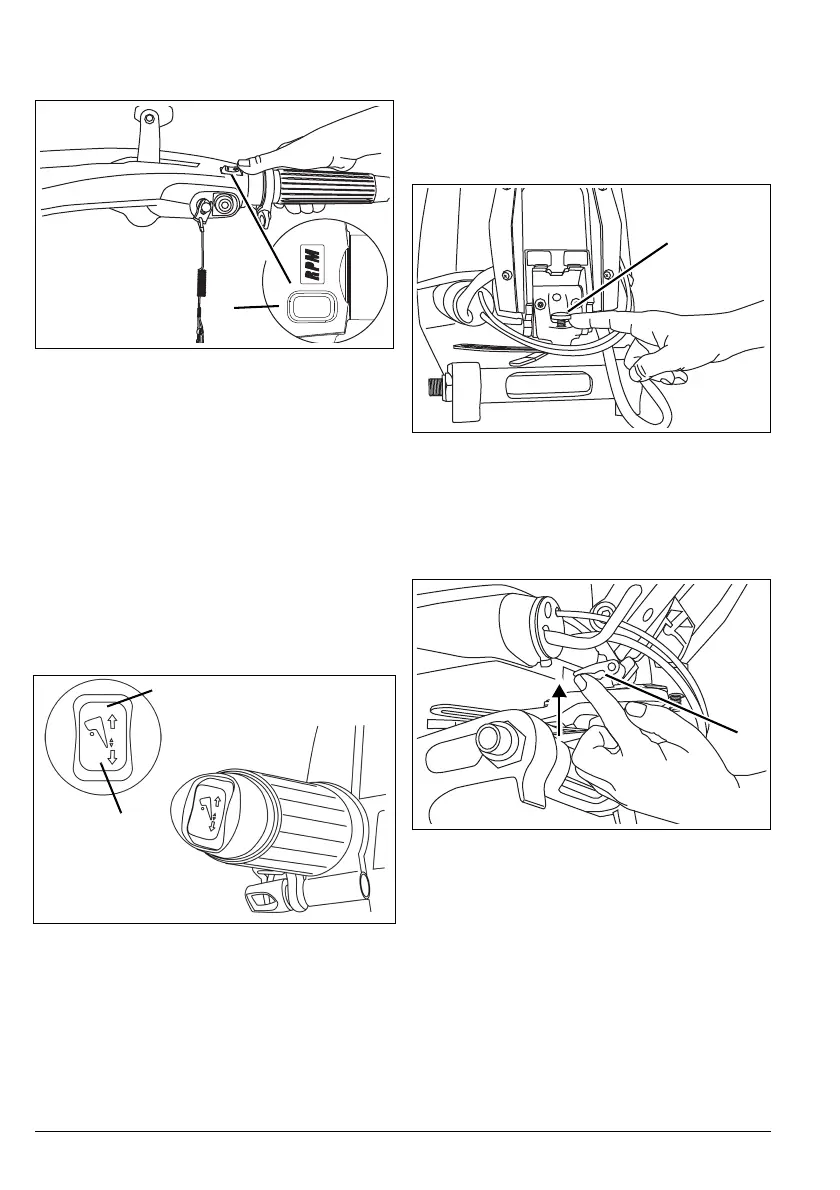

1. Idle speed control switch
007068
1. Trim/tilt switch UP
2. Trim/tilt switch DOWN
005107
+
–
1
1
2
1. Adjustment screw
007020
1. Release lever
007019
1
1

Evinrude E-TEC G2 Specifications

General

Bore x Stroke	Varies by model
Full Throttle RPM Range	5400-6000 RPM
Alternator Output	133 Amps Total / 50 Net Dedicated
Lubrication	Multi-point targeted oiling
Cylinder Configuration	V6
Gear Ratio	1.85:1
Starting	Electric
Engine Type	2-stroke
Shaft Length	20", 25", 30"
Fuel Induction	Direct Fuel Injection (DFI)
Emissions	EPA 2013
Horsepower Range	150 - 300 HP
Fuel Type	87 Octane
Weight	505 - 635 lbs (varies by model)
