Installation
Battery Terminal Adapter Kit, P/N 385407 —
install the main cable on the adapter with a
star washer below it. Install wires from acces-
sories on the threaded portion of the post.
Automotive Type Battery Posts — Use Bat-
tery Terminal Adapter Kit, P/N 385407. Place
a star washer on the adapter first, then the
main cable. Install wires from the accessories
on the main cable.
Tighten all connections securely and coat the
installation with Triple-Guard grease.
Service
Before servicing the battery or the outboard,
remove both battery cables from the battery,
battery negative (–) cable first. Keep metal
objects from contacting either battery post.

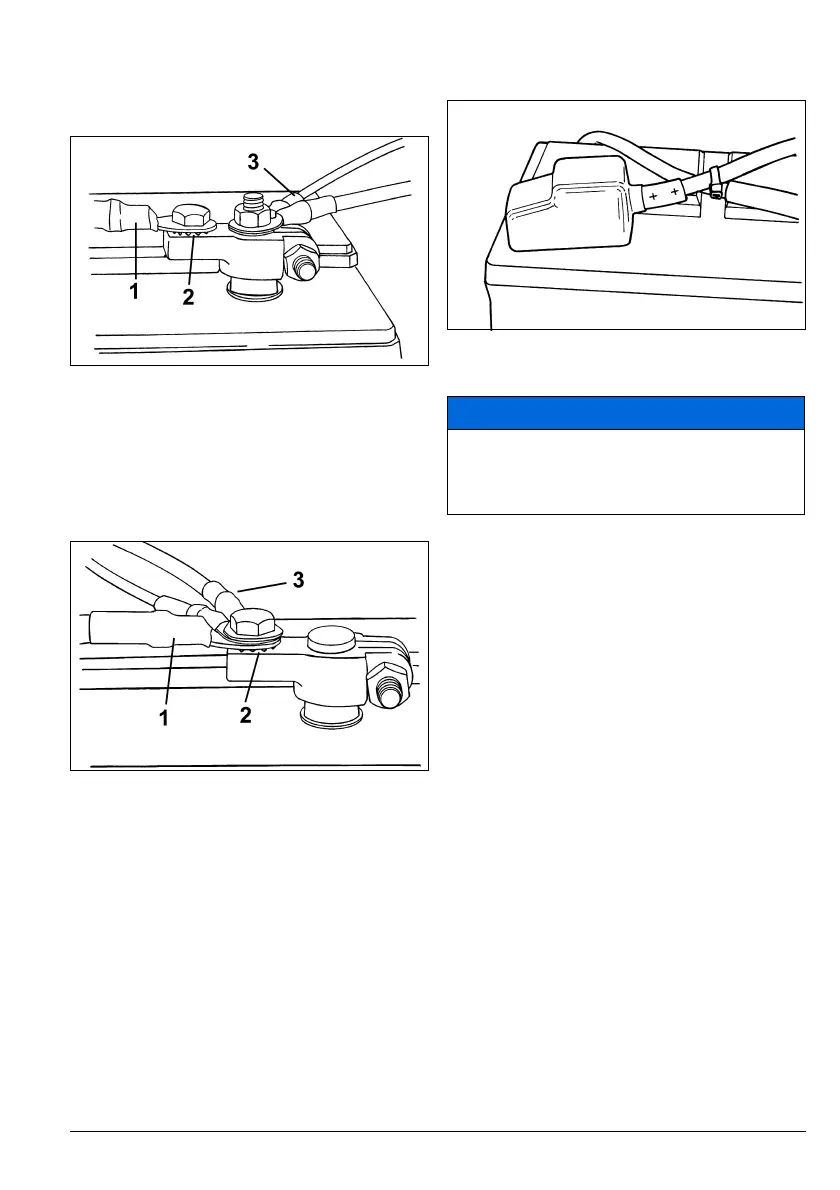

1. Main cable
2. Starwasher
3. Accessory wires
DR6495
1. Main cable
2. Starwasher
3. Accessory wires
DR6496
DR5104
NOTICE
Service electrical components only while
the outboard is NOT running. Be careful
when identifying positive and negative
battery cables and posts.
