TOOLS:
5# ALLEN WRENCH 5mm 1pcs
6# ALLEN WRENCH 6 mm 1pcs
WRENCH W/SCREW DRIVERS= 13, 14, 15 1pcs
Note: Do not plug into the mains power before completing the assembly

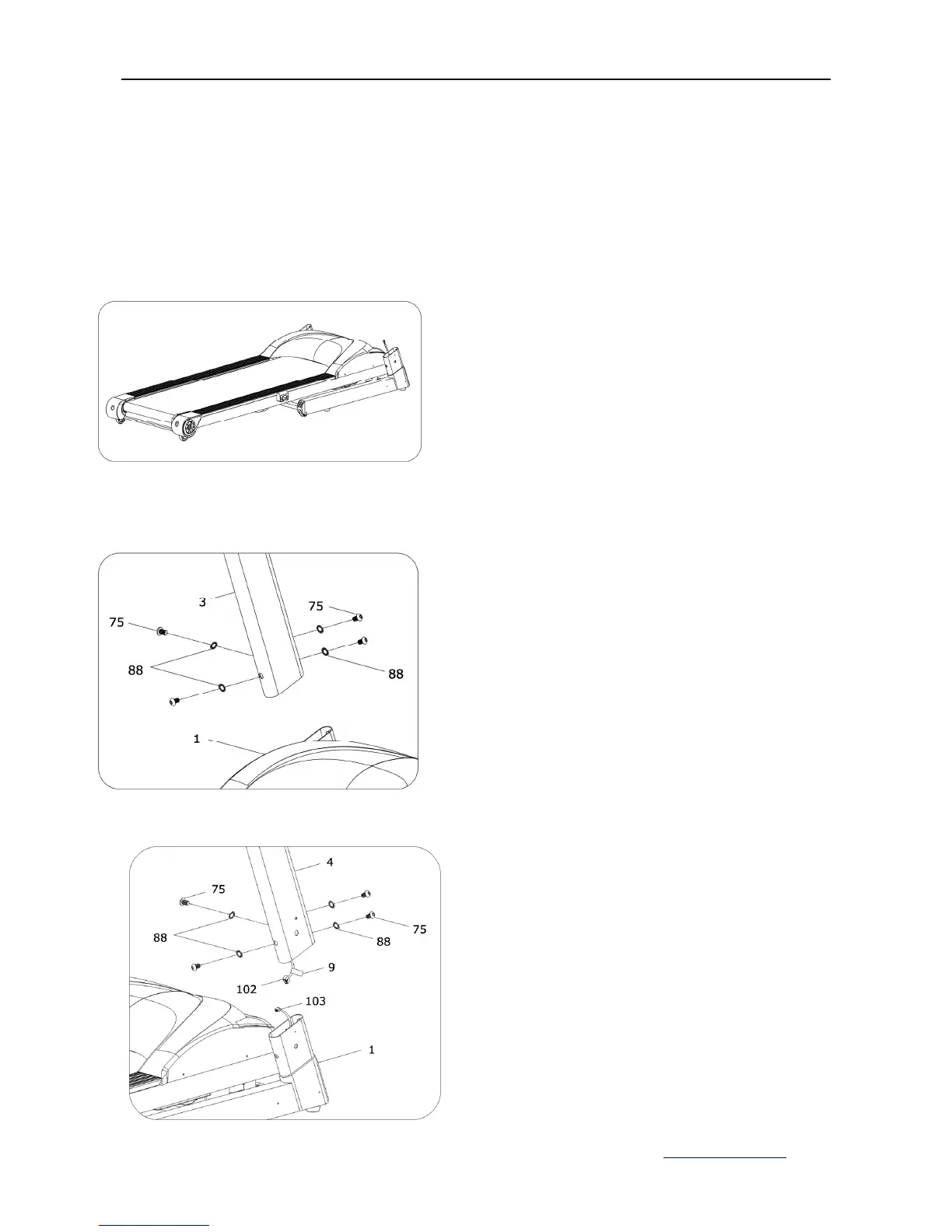

ASSEMBLY STEP 1:
ASSEMBLY STEP 2:
ASSEMBLY STEP 3:
To attach the right posts (3) to the frame
(1) use bolt (75) and lock washer (88)
using the 6# Allen wrench
Notice: When you insert the post
sections ensure that the wires do not
get caught and become damaged.
Connect the stranded wire (102) from the
post with wire from the main frame. Slide
left post (4) onto MAIN FRAME (1)
To attach the upright posts (4) to the
frame use bolt (75) and lock washer (88)
using the 6# Allen wrench
Open the carton and remove all foam and
cardboard packaging. Place the treadmill on
the ground as per diagram.
To Next Page
