BAT TERY
1
BAT TERY
Batteries loaded on EVOLUTION vehicles ,according to different configurations, customers
who purchase EVOLUTION vehicles can have two different batteries options: Trojan T875
(8V)/T105(6V), and EVOLUTION lithium battery, which has the four models normally: L4860,
L48110, L48130, L48165.

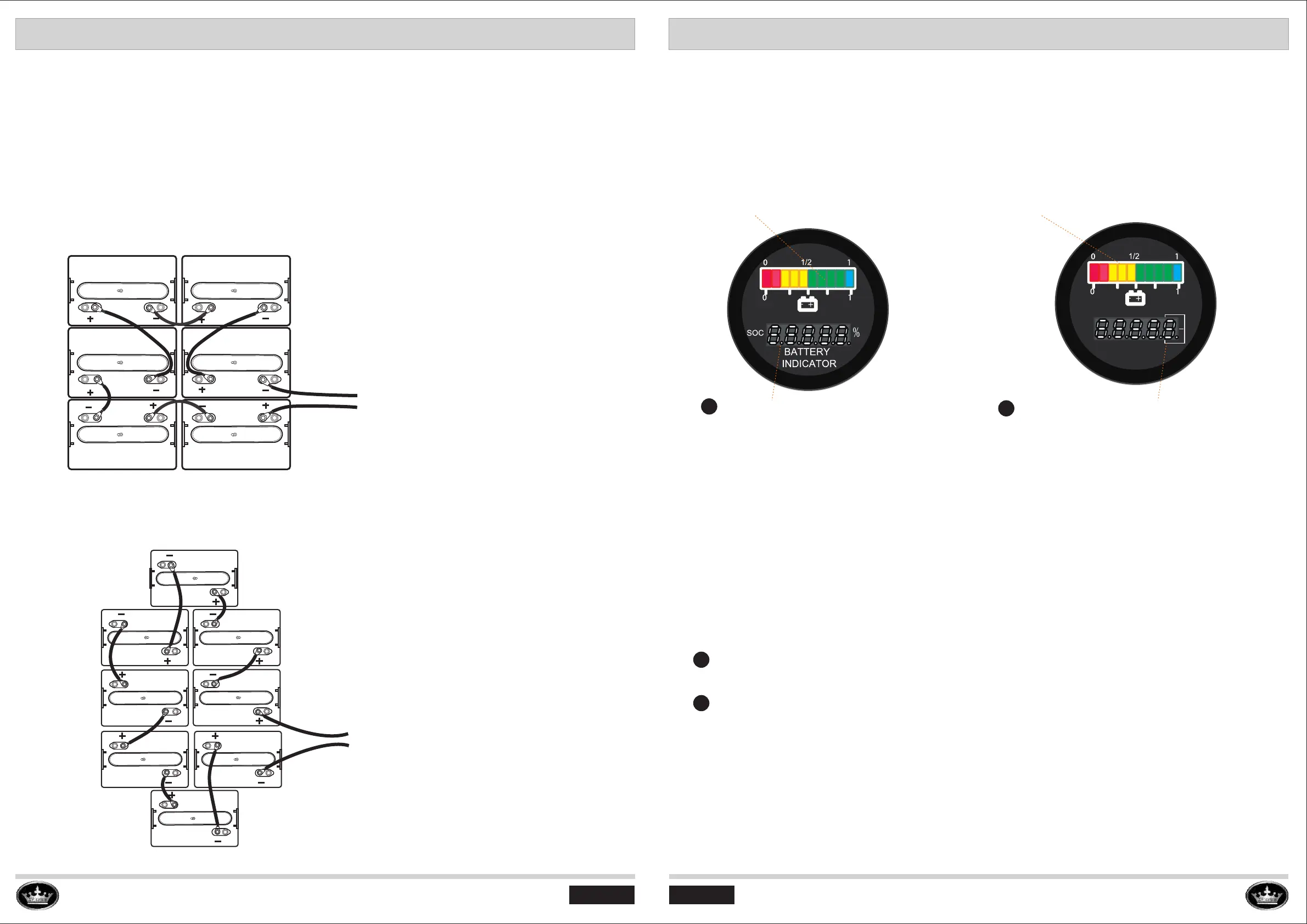

I. Lead acid battery (Trojan)
Trojan T875 x 6pc
Trojan T105 x 8pc
LEAD ACID BATTERY OVERVIEW
1
LITHIUM BATTERY METER
For Basic battery SOC (state of charge) information ,check the battery level display module。 。
SOC indication in progress bar
1 means 100%
0 means 0%
SOC indication in percentage
.
(For lead-acid battery meter only)
The LED digital in the below tablet indicate the SOC percentage of lithium battery pack.
Each LED light grid indicates 10% power of battery pack.
(For lithium battery meter only).
-Blue LED light indicates 90%-100% battery power.
-Four green LED lights indicate 60%~90% battery power.
-Three Yellow LED lights mean 30%-50% battery power left
-Last two red LED Lights indicate only 0-20% battery power left, and the battery pack needs
to be charged immediately.
The LED digital in the below tablet indicate the vehicle total running time of the golf cart.
1
10
Lead acid
LEAD ACID BATTERY METER
1
2
SOC indication in progress bar
0 means 0%
1 means 100%
Vehicle total running time in Hours
1
2
Positive+
Negative-
Positive+
Negative-
BATTERY METER
