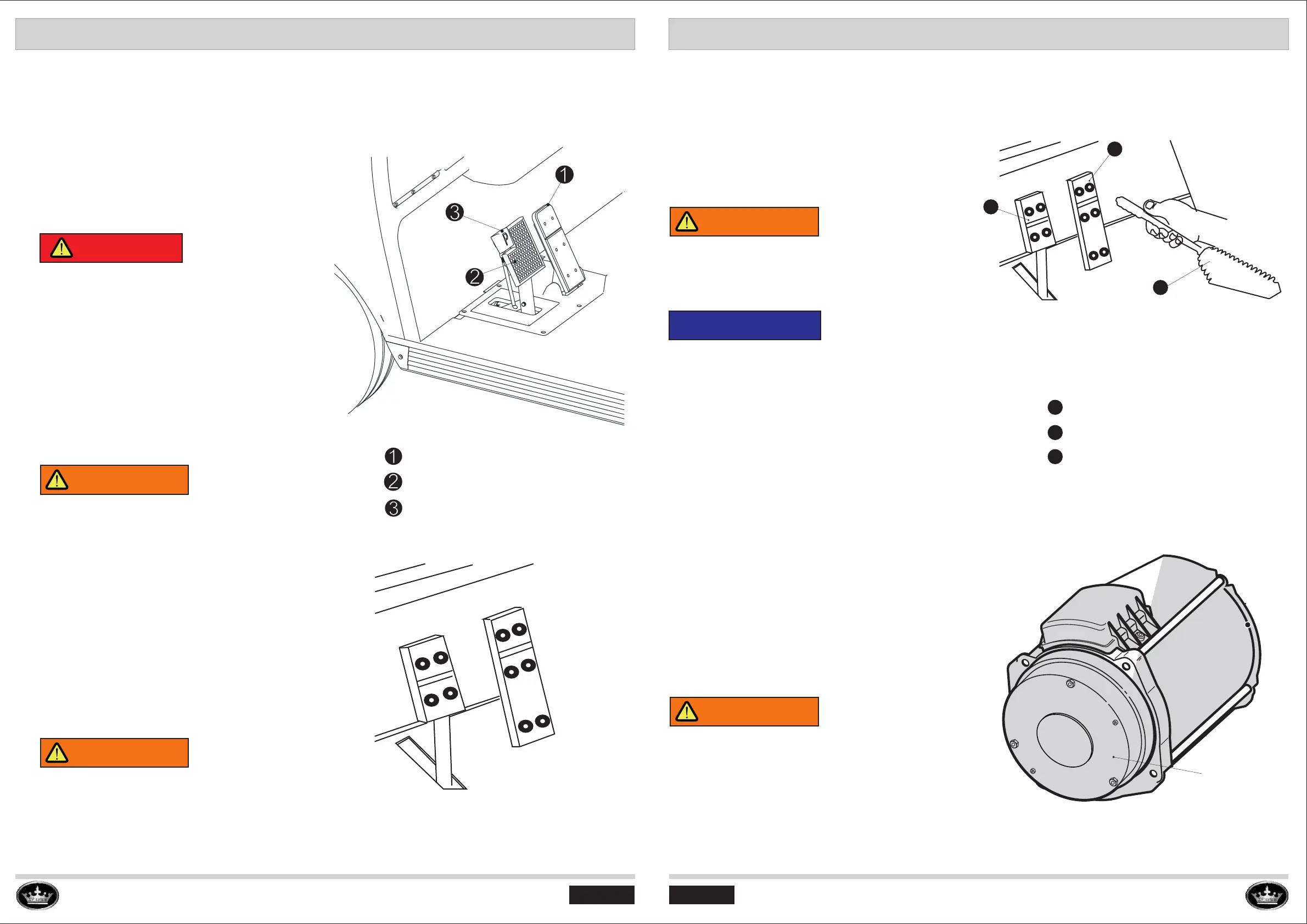

ACCELERATOR PEDAL
OPER AT ION AND CONTROLS OPER AT ION AND CONTROLS
Mechanical Brake
BRAKE PEDAL
FOOT PARKING BRAKE PEDAL
(MECHANICAL BRAKE)
MOTOR BRAKE (Optional)
The accelerator pedal is used to increase and
maintain the speed of the vehicle. Apply slow
and steady pressure to the accelerator pedal
to start the motor and accelerate the vehicle.
When you release the accelerator pedal the
motor will decrease the speed of the vehicle.
DANGER
Do not engage the accelerator pedal rudely,
sudden or accidental accelerating can cause
vehicle to suddenly move and cause severe
injury or death.
Accelerator pedal
Brake pedal
Foot-Parking brake
The brake pedal is used to decrease speed
or stop the vehicle.
It is the left pedal on the floorboard.
Evolution vehicles have two styles of brake
system: Mechanical and Hydraulic brake.
Some vehicles are equipped with an motor brake
which is used to park the vehicles automatically
When the vehicle stops on the flat ground or on the
hills. The parking brake will be released when the
vehicle is in F(Forward) or R (Reverse) position
and engaging the accelerator pedal.
Hydraulic Brake
Motor Brake
When loading the cargo or towing a vehicle
or trailer, the payload will be increasing the
braking distance required to slow or stop the
vehicle.
WARNING
The Foot Parking brake pedal is used to keep
the vehicle in static on the ground or on the
hills. Foot parking brake pedal is only used in
mechanical brake system.
WARNING
Make sure the parking brake pedal locks in
place with positive click, and release freely
when pressing accelerating pedal.
HAND PARKING BRAKE (HYDRAULIC BRAKE)
Hydraulic Brake With
Hand Parking Brake
The Hand parking brake is used to keep
the vehicle in static on the ground or on the
hills. Hand parking brake is only used in
hydraulic brake system.
WARNING
Make sure the hand parking brake be pulled up
enough to stop the vehicle parking on a slope and
not roll back.
NOTICE
Some vehicles with hydraulic braking do not have
the hand parking brake lever, instead the vehicles
will be equipped with motor brake which has the
same function as hand parking brake.
WARNING
If you have a motor brake on your golf cart,
make sure to unlock the motor brake mechanically
before towing the golf cart, otherwise it will ruin
the motor, rear differential and motor brake.
Motor brake
Accelerator pedal
Brake pedal
Hand Parking brake
4
5
6
4
5
6
