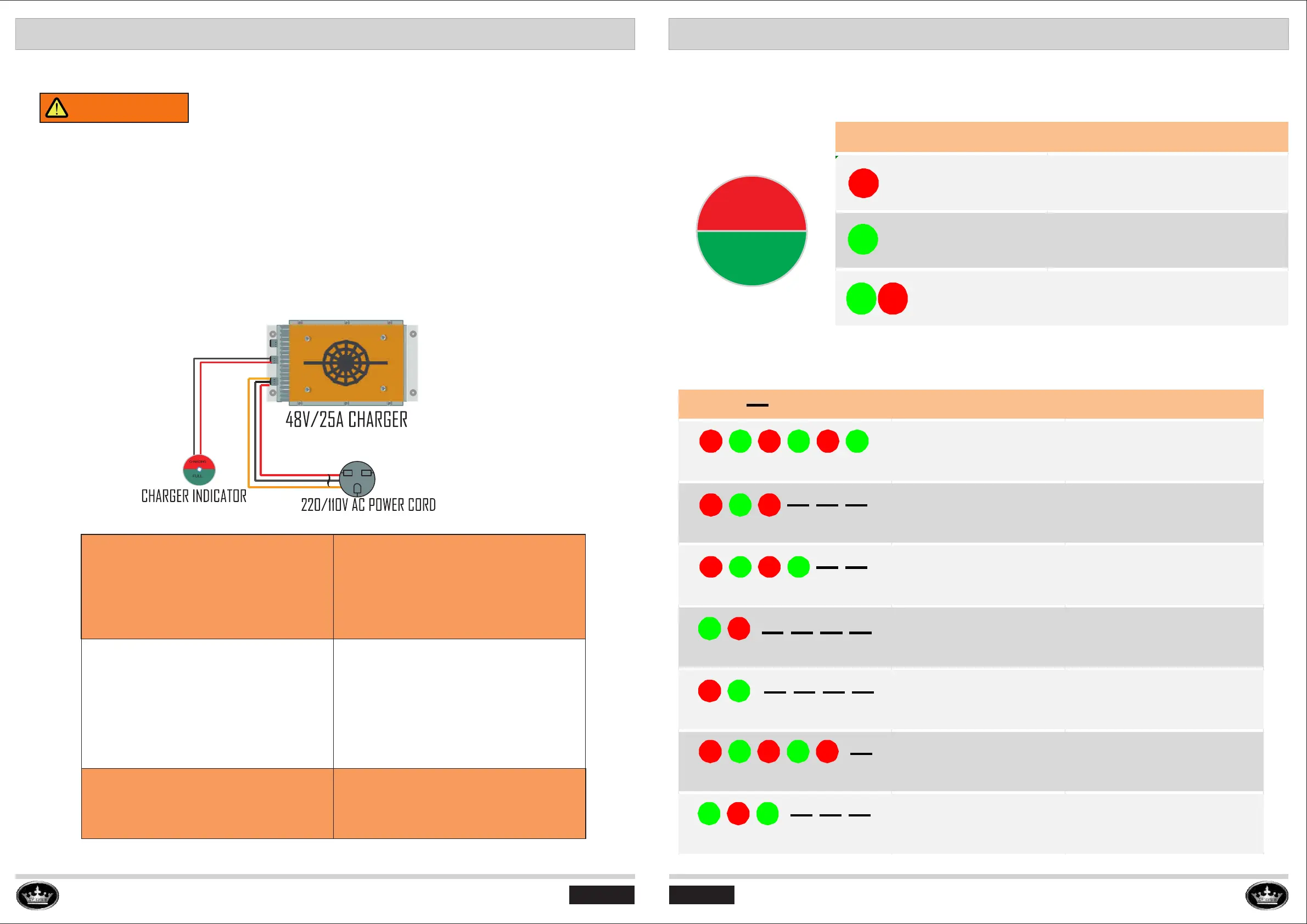

bat tery charger
1
2
bat tery charger
WARNING
INCORRECT CONNECTION OF THE AC CORD CAN CAUSE A FIRE OR AN ELECTRICAL
SHOCK. DO NOT USE AN ADAPTER TO CONNECT THE AC CORD INTO A TWO-PRONG
POWER SOURCE. CONNECT THE AC CORD TO AN APPROVED POWER SOURCE.
CONNECTION OF THE AC CORD TO AN INCORRECT RECEPTACLE CAN CAUSE A FIRE,
ELECTRICAL SHOCK, PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH.
CONNECT THE AC CORD TO AN APPROVED POWER SOURCE AND RECEPTACLE. DO
NOT LET THE BATTERY CHARGER BECOME WET. KEEP THE BATTERY CHARGER DRY.
Flashes ( " " means pause 1s ) Cause Solution
No load
Check if happens:the connection
of battery and charger is loose, the
battery defective, or the battery
voltage is too low.
Over voltage or over current
If the error occurs after restart
,return it to factory repair.
The ambient temperature is
too high or too low
Please check if the ambient
temperature is too high and if
ventilation is good and the
battery temp sensor is good
Charger overheating
Please check if ambient
temperature is too high and if
ventilation is good.
Output Under- Voltage
Please return it to the factory.
Replace new charger
Input AC abnormality
Please check the input voltage and
the plug poor contact.
After anyone of the mentioned
faults above repeats five times,
the fault code appears.
Re-up electricity, match the indicator
state to the mentioned faults above
then get the corresponding solution.
CHARGER LED DISPLAY
LED FAULT CODES
LED Light Indication
Red LED light flashing Charging
Solid Green light Charge completely
Red and Green
flashing in order
Refer to the Troubleshooting table
CHARGING
FULL
CHARGER SPECIFICATION
Battery pack rated voltage
Maximum charger ouput
AC input voltage range
AC input current value
48V
68V
85-270VAC, 45-65Hz
11.5A@120VAC, 6.1A@220VAC
Power factor
Charger efficiency
Noise
IP Class
Weight
Operating temperature
Storage temerature
0.99
95%
45dB
IP67
9.3Ib (4.2kg)
PAG E 31
-86°F to 149°F(-30°C to 65°C)
-104°F to 203°F(-40°C to 95°C)
