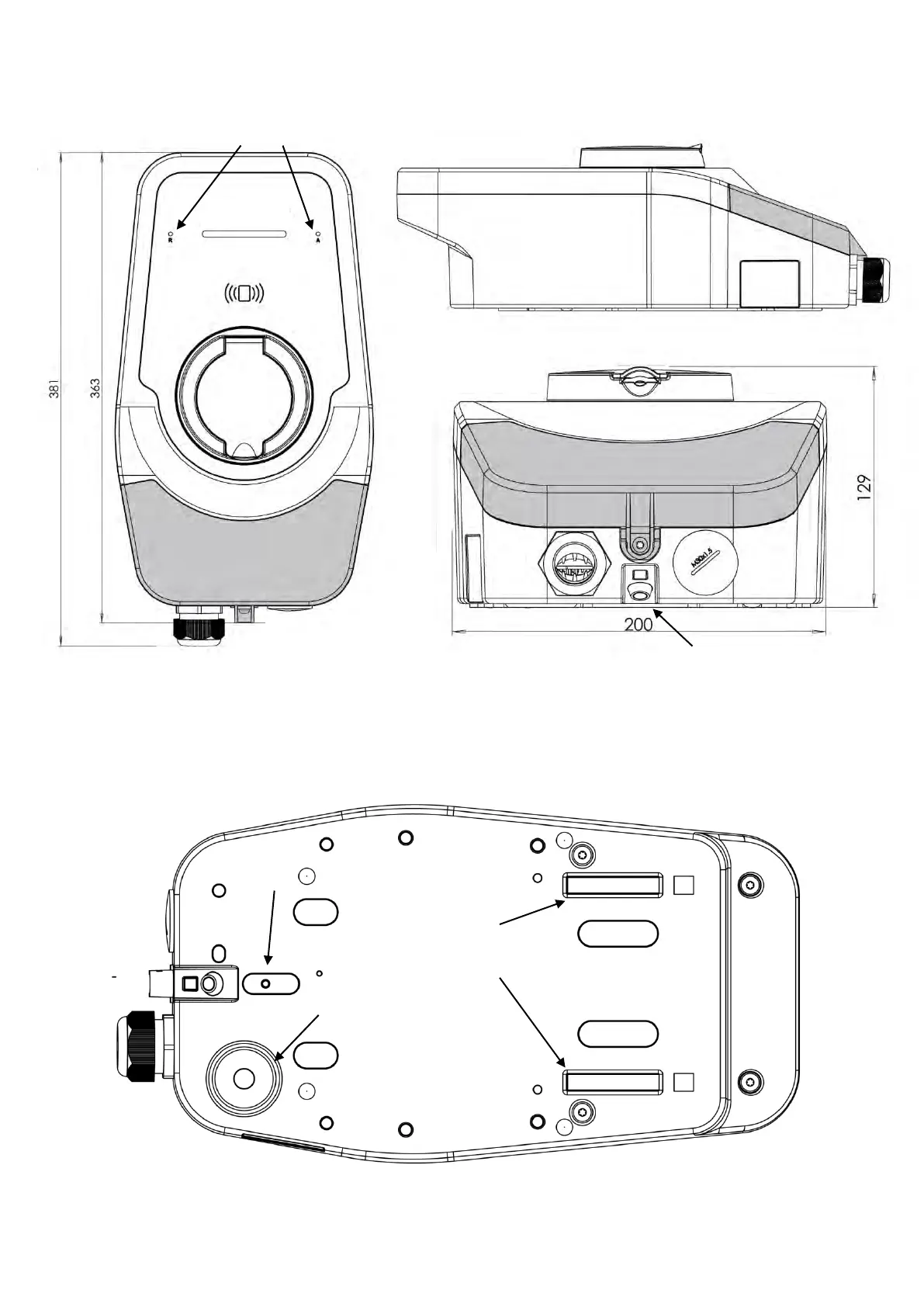

Socket model technical drawing with dimensions. All units in mm. Grey area denotes the service cover.
This acts as a modular design allowing for quick access to the power and data cable section without
accessing the rest of the unit.
power input
cable gland
backside entry
grommet hole
mounting plate
lock slots
mounting plate
bolt hole
UTP CAT5
Ethernet input
Active and Reactive
energy pulse calibration
outputs
RGB LED bar
NFC card reader
