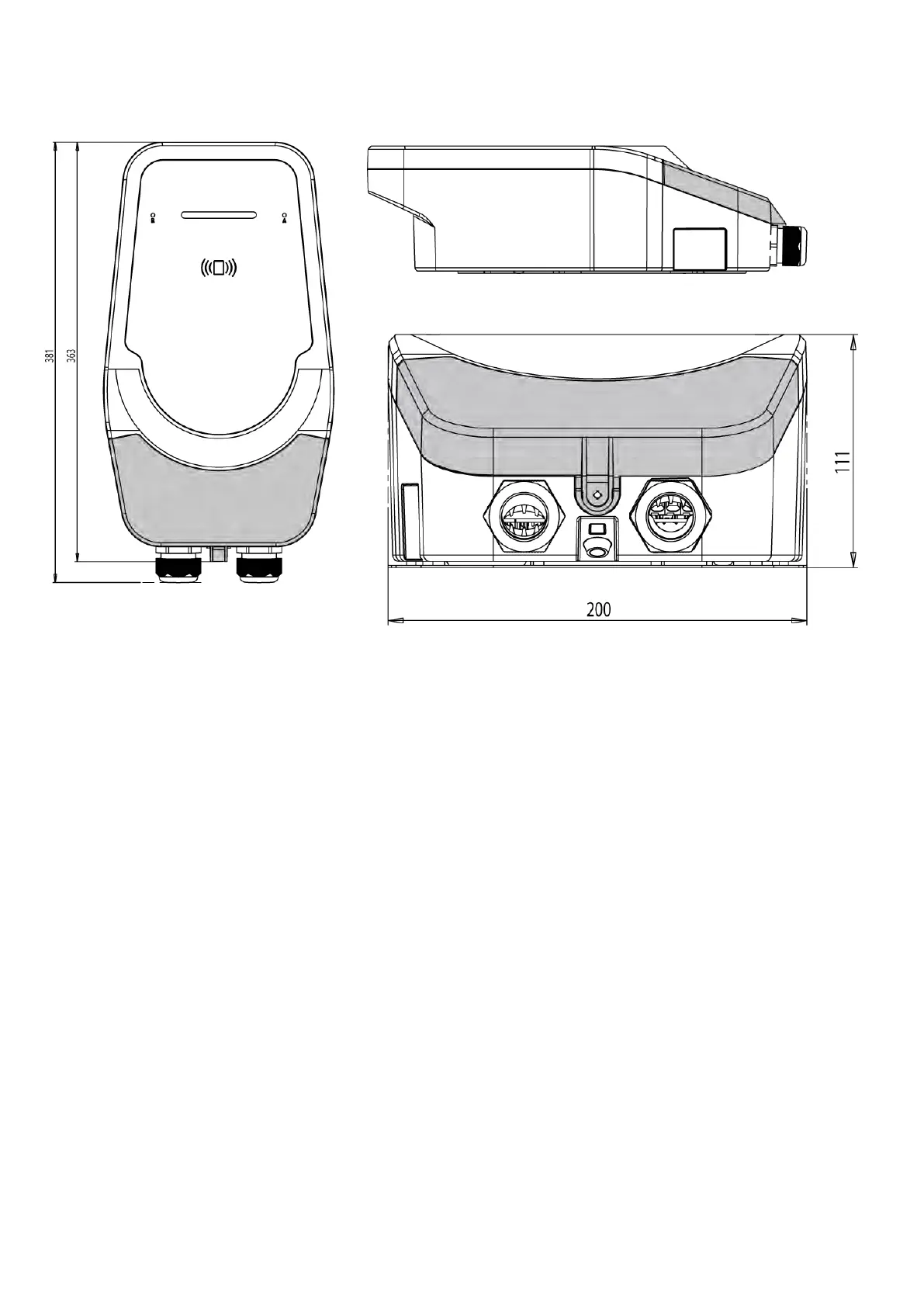

Tethered model technical drawing with dimensions. All units in mm. Grey area denotes the service cover.
Note the absence of a socket and the presence of a second power port for the tethered cable.
power input
cable gland
output to EV
cable gland
