Analog and Digital Audio
This section shows the available associations of analog and digital connectors.
See section "Audio Specifications" on page 15 for more details on the available audio
configurations.
See section "Audio Connections" on page 56for more details on the DA-15 connectors
pinout depending on the configuration.
The audio connector layouts described in this section are available according to your
configuration.

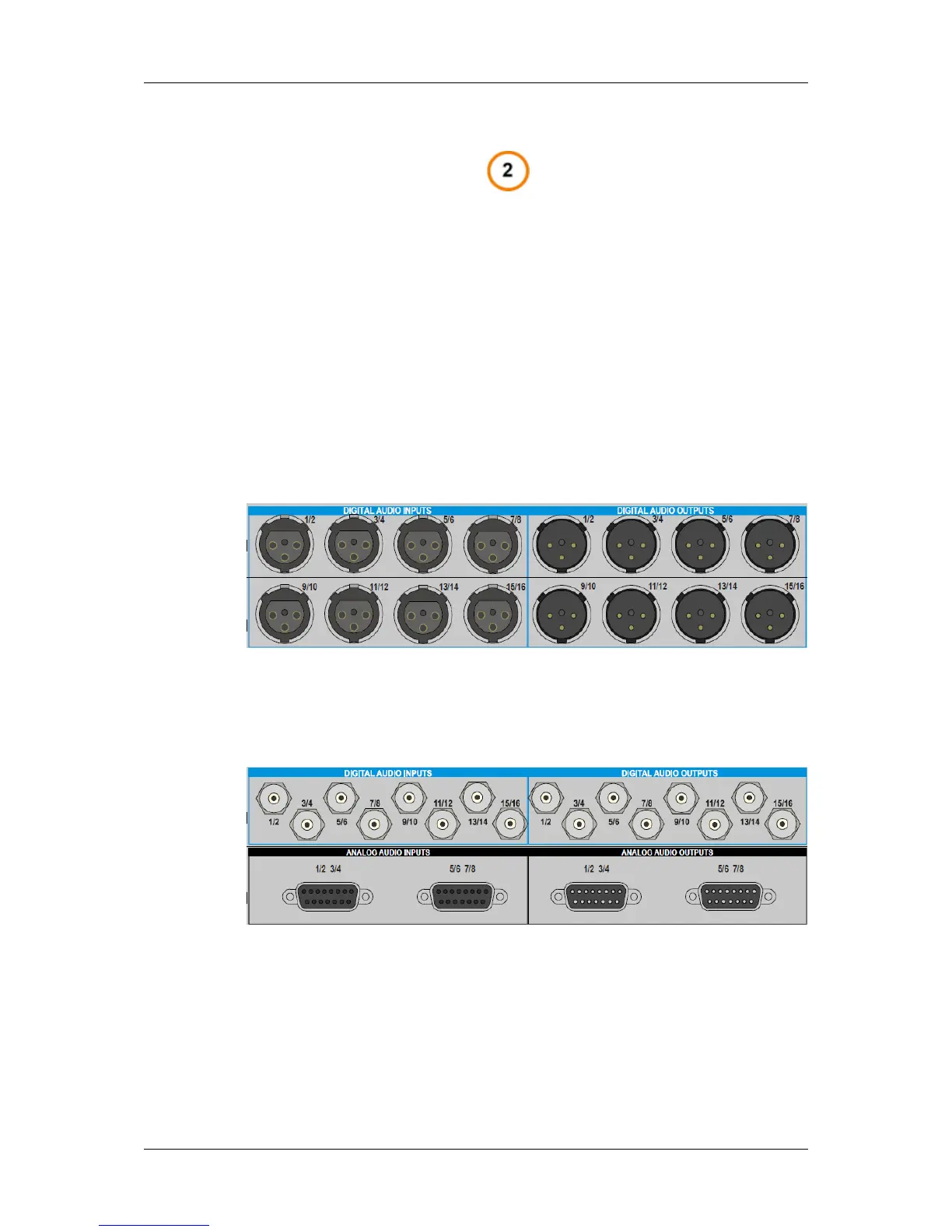

Digital XLR Connectors
• Digital audio: 16 XLR connectors (8in and 8out)
• No analog audio
This configuration is not available on 2-channel server
Digital BNC Connectors and Analog DA-15 Connectors
• Digital audio: 16 BNC connectors (8in and 8out)
• Analog audio: 4 multi-pin DA-15 connectors (2in and 2out)
