Dimensions

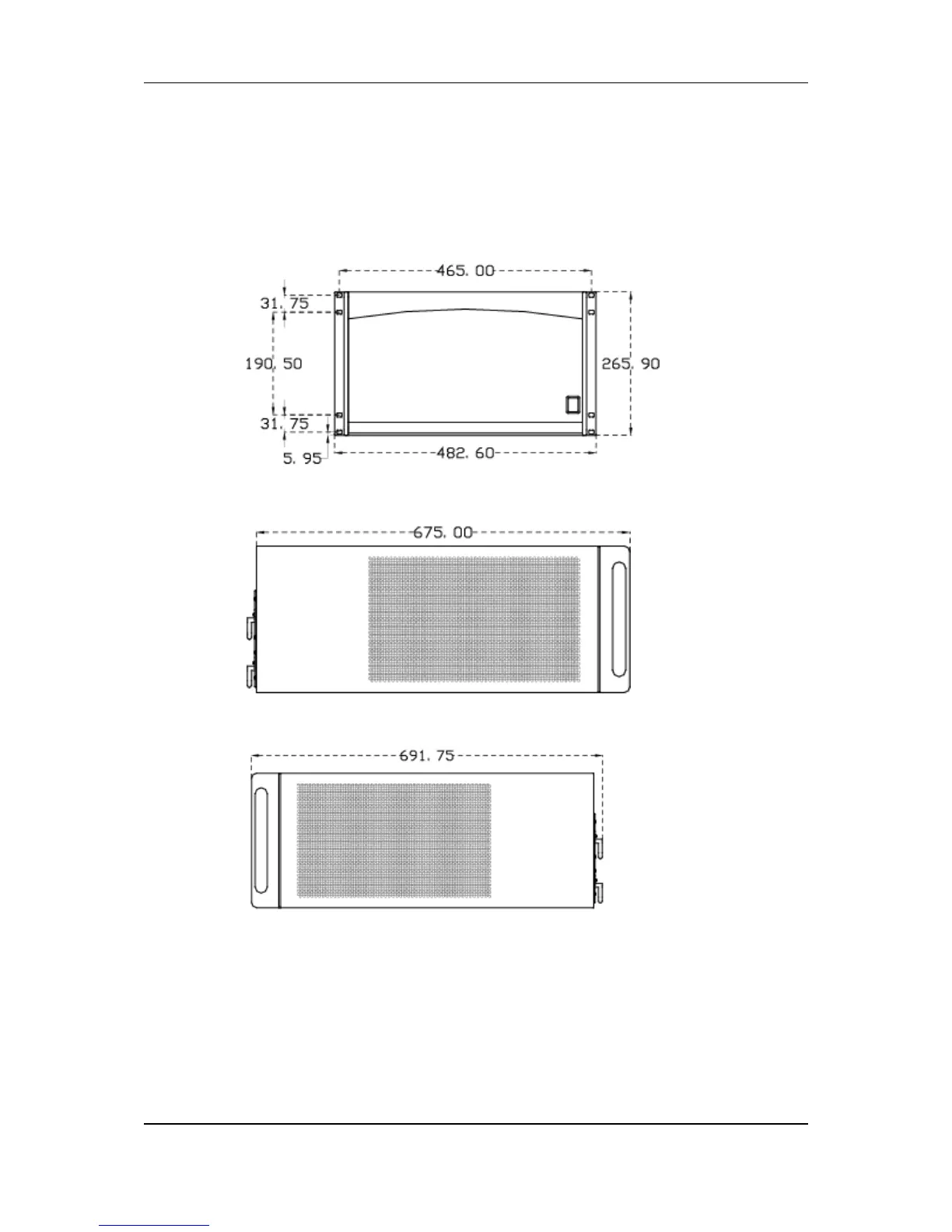

The following drawings provide the various dimensions, in mm, of the XT3 server with a
6U chassis.
Front view
Left view
Right view
8 3. Hardware Specifications
EVS Broadcast Equipment S.A. Issue 11.02.A July 2013
