5.4.3. Analog Audio DA-15 Pinout

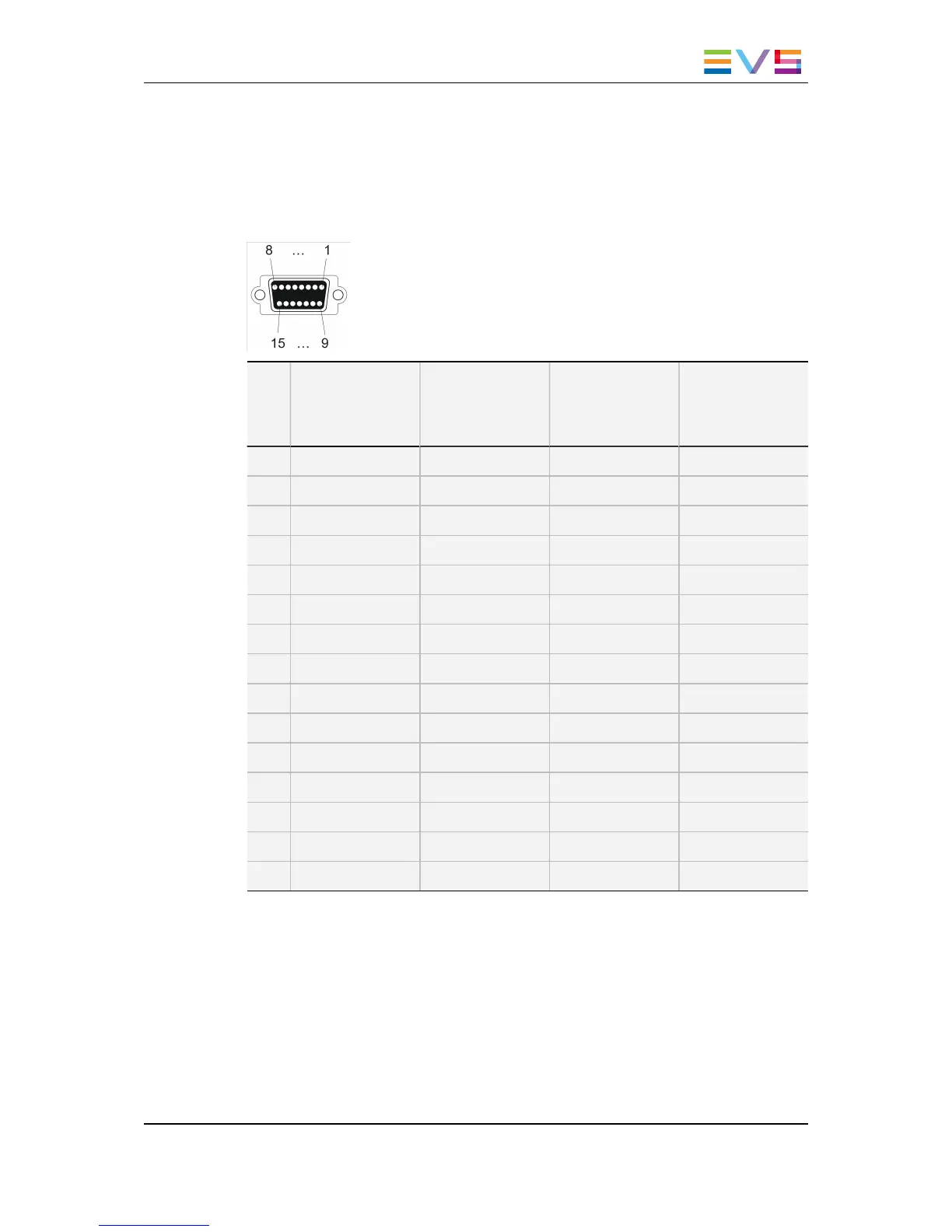

The analog audio DA-15 connector is illustrated hereunder (connector installed on the rear
panel and viewed from outside). Its pinout is described in the following table where each
column corresponds to one of the 4 available connectors.
Pin
#
DA-15
connector #1
Inputs 1-4
(mono)
DA-15
connector #2
Inputs 5-8
(mono)
DA-15
connector #3
Outputs 1-4
(mono)
DA-15
connector #4
Outputs 5-8
(mono)
1 Gnd Gnd Gnd Gnd
2 Analog input 1 + Analog input 5 + Analog output 1 + Analog output 5 +
3 Gnd Gnd Gnd Gnd
4 Analog input 2 + Analog input 6 + Analog output 2 + Analog output 6 +
5 Gnd Gnd Gnd Gnd
6 Analog input 3 + Analog input 7 + Analog output 3 + Analog output 7 +
7 Gnd Gnd Gnd Gnd
8 Analog input 4 + Analog input 8 + Analog output 4 + Analog output 8 +
9 Analog input 1 - Analog input 5 - Analog output 1 - Analog output 5 -
10 Gnd Gnd Gnd Gnd
11 Analog input 2 - Analog input 6 - Analog output 2 - Analog output 6 -
12 Gnd Gnd Gnd Gnd
13 Analog input 3 - Analog input 7 - Analog output 3 - Analog output 7 -
14 Gnd Gnd Gnd Gnd
15 Analog input 4 - Analog input 8 - Analog output 4 - Analog output 8 -
