EVS XT-3 Technical Reference

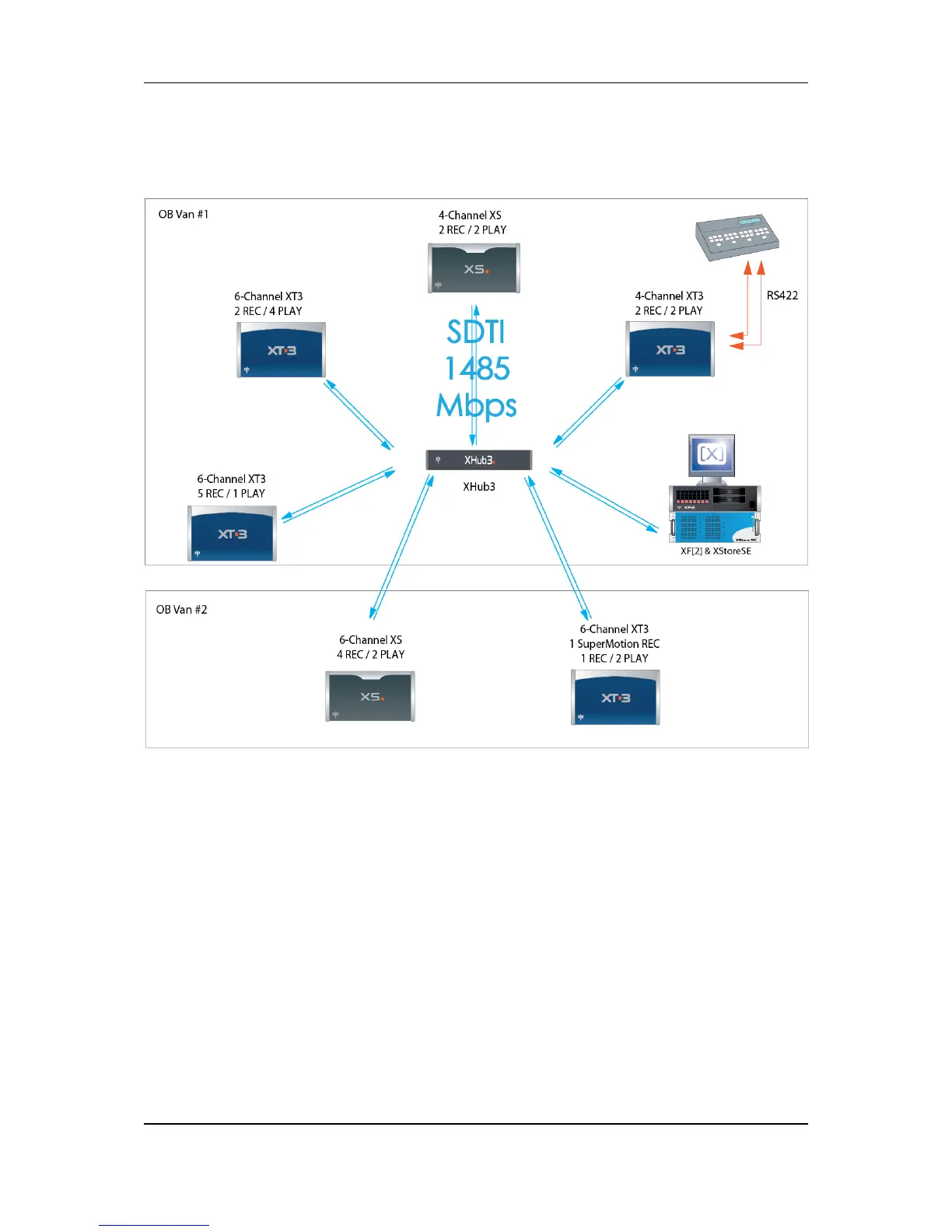

Connection Diagram With EVS XHub SDTI Hub
Example of XNet2 network with a SDTI hub:
5.6.3. Required Conditions to Set up and Run
XNet
1. All systems on the network shall belong to the XT3 or XS servers, XStoreSE, XHub3
devices.
2. The SDTI advanced option code (for network client, master, or server modes) shall be
validated in the options list.
3. They shall all be running compatible software versions. Otherwise, warning message
is displayed.
4. The following parameters shall have the same value on all systems: SDTI speed
(Network page, SDTI section).
56 5. Hardware Installation and Cabling
EVS Broadcast Equipment S.A. Issue 11.02.A July 2013
