Video and Codecs
The codecs modules allow connections for recording and playback of video material.
Each connector on a codec module is connected to the corresponding J connector on the
COD A or COD B module of a V3X board.
See section "V3X Video and Reference Boards" on page 72 for more details on each
connector specific usage according to the different configurations.

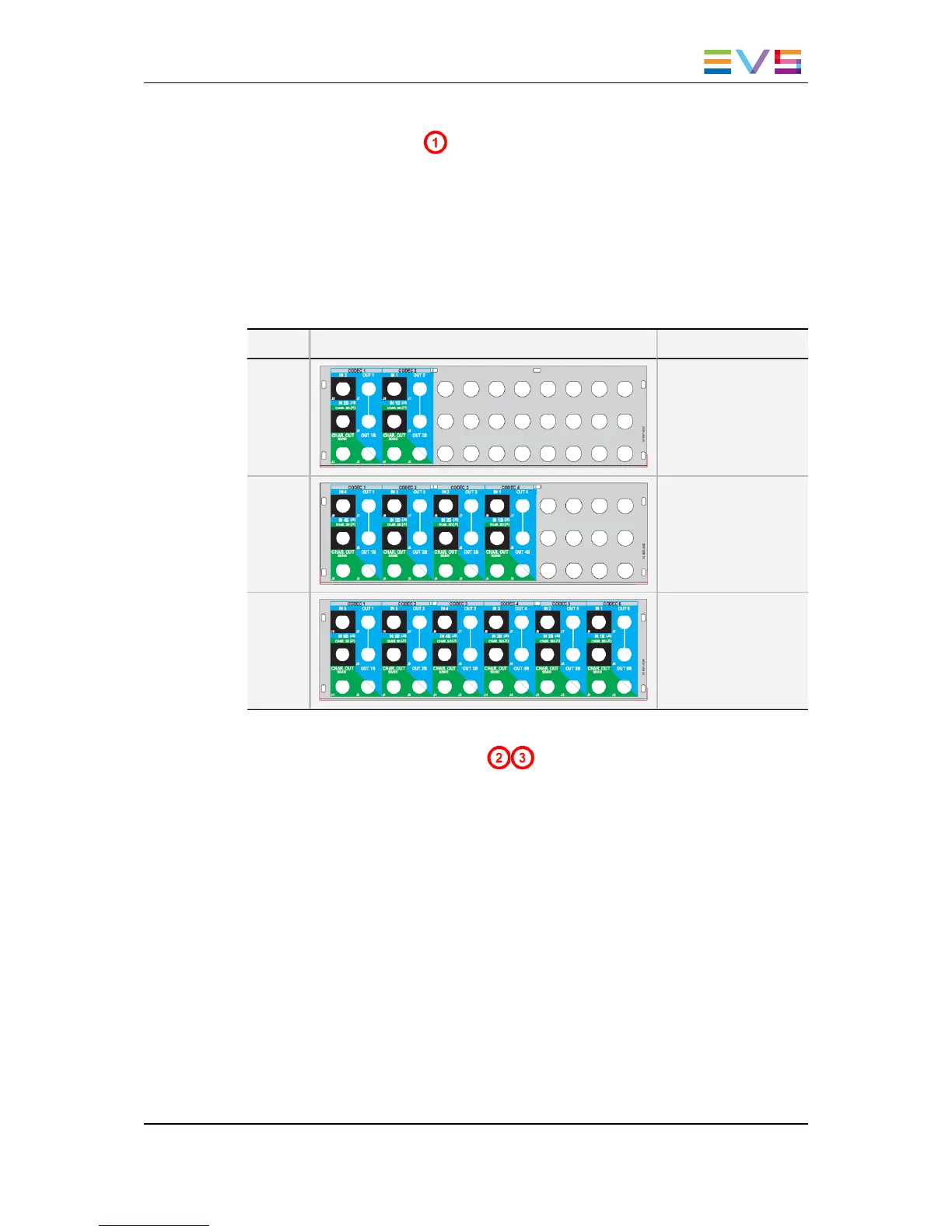

The following video and codecs connectors layouts are available according to your
configuration:
Config Layout Description
222 2 channels version
444 4 channels version
666 6 channels version
Analog and Digital Audio
This section shows the available associations of analog and digital connectors.
See section "Audio Specifications" on page 15 for more details on the available audio
configurations.
See section "Audio Connections" on page 49for more details on the DA-15 connectors
pinout depending on the configuration.
