EWS OS 3030 User Manual

OS3030 Functional description

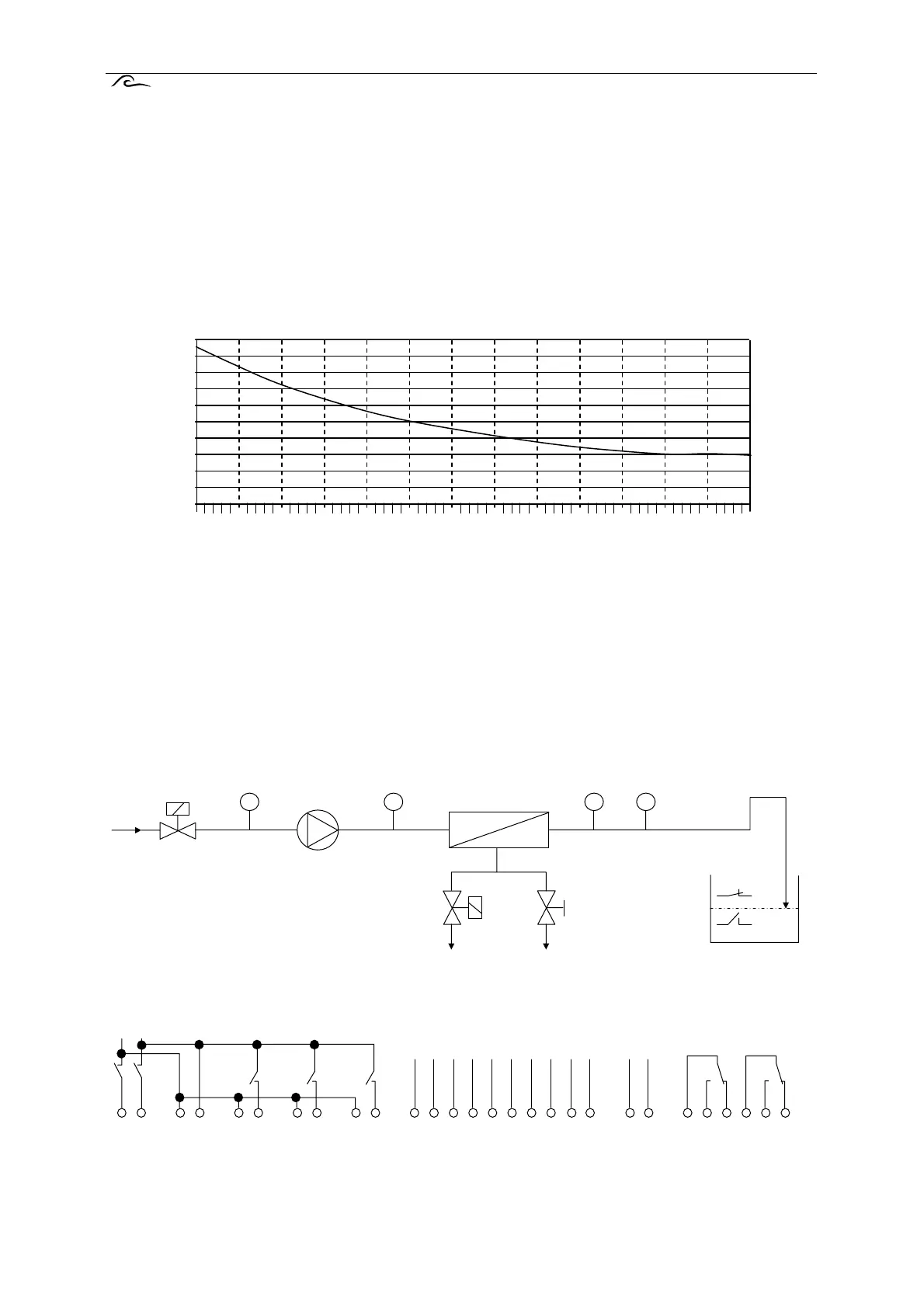

Temperature compensation, circuit diagram, terminal diagram
4
Temperature compensation
The controller is not equipped with a ther-
mometer and an automatic temperature com-
pensation function for the conductivity meas-
urement reading. However, the measurement
reading can be compensated manually in line
with the current water temperature by entering
a fixed temperature, other than the standard
reference
reference temperature of 25 °C. Refer to the
diagram below for the correction factor used
for the compensation procedure.
Example:
Water temperature setting: T = 11° C
Measured conductivity: C11 = 100µS/cm
Correction factor: Cor = 1,4
Conductivity reading: C25 = 140µS/cm
Temperature °C
Temperature compensation diagram
Temperature facto
r
0 5
10 15 20 25 30 35 40 45 50 55 60 65
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2
Concentrate
flush valve
Concentrate
control valve
Untreated wate
r
Input valve
High-pressure
pump
Osmosis module
Reservoir
LP EP
Low-water pressure
Excess pressure
EM
FU
Permeate
EP CC
High pressure
Conductivity cell
CV
Circuit diagram
Terminal diagram
High-pressure pump
Main power suppl
y
Main outpu
t
Inputvalve
Concentrate valve-
Full
Empt
y
Programmable
input 1
Conductivity cell
Programmable
input 3
Programmable
input 2
Programmable
Output1
Programmable
Output2
optional optional optional
