40
˙

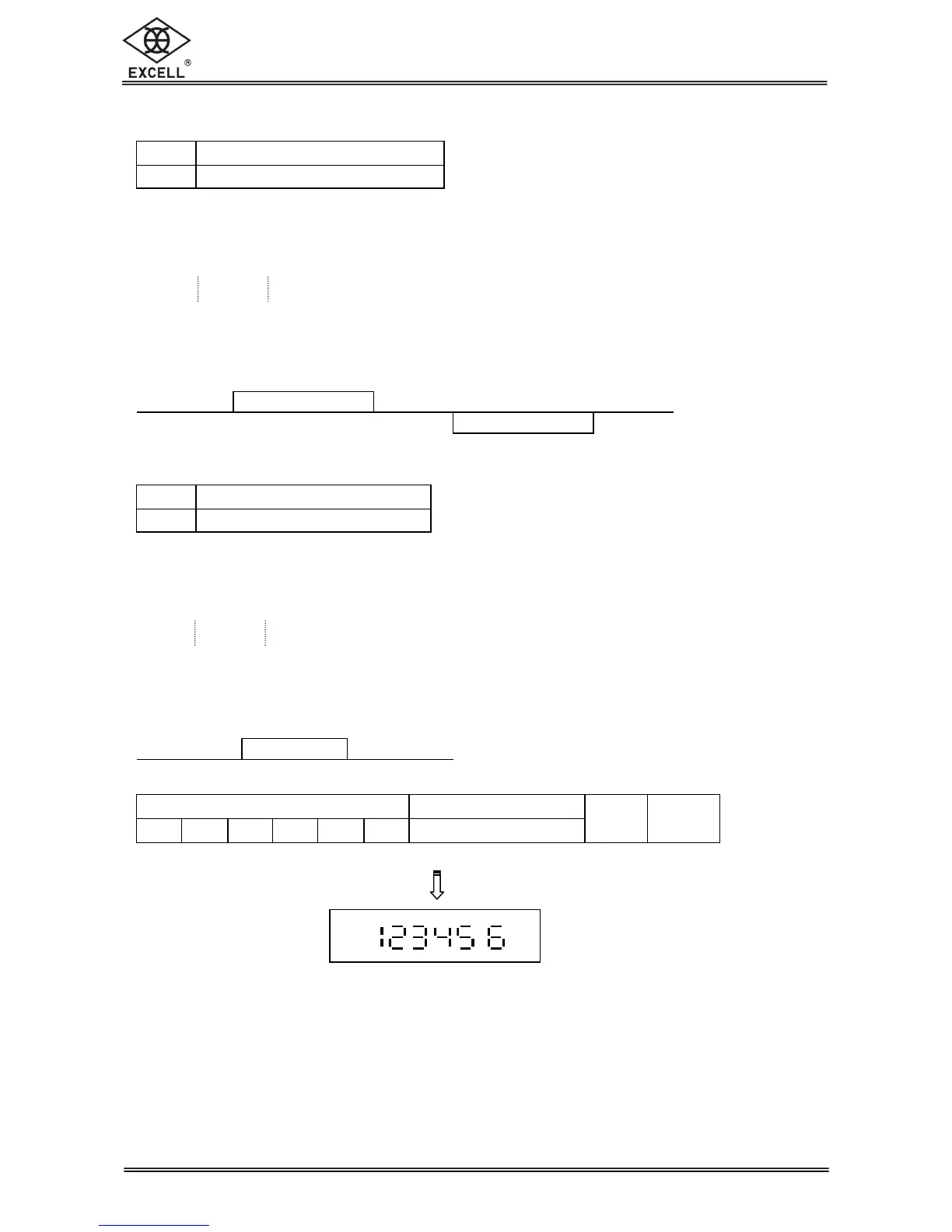

Read weight comparison setting value RS
: Groups(00 ~ 09) : Setting Items
HI
Show “HI” presetting value
LO
Show “LO” presetting value
Note : (Group) is various depended on different models
00  The first group
01  The second group
02  The third group
EX:
RS02LO＜CR＞＜LF＞ Show “LO” presetting value
ANS:
RS02LOXXXXXX＜CR＞＜LF＞
Command Format C
Host
Command+ Data
Slave
Command+ Data
Write weight comparison setting value WSXXXXXX
: Groups(00 ~ 09) : Setting Items XXXXXX: Setting Value
HI
Write “HI” setting value
LO
Write “LO” setting value
Note :  (Group) is various depended on different models
00  The first group
01  The second group
02  The third group
EX:
WS00HI001000＜CR＞＜LF＞ Write “HI” setting value
ANS:
WS00HI001000＜CR＞＜LF＞
Command Format D
Host
Data
Slave
Value (e.g. Price)
Position of decimal point
CR
LF
1
2
3
4
5
6
1
When the Slave receives this data format, it will transfer the data and display it on its LCD.
 The function is effective when the weight value is over 0.
 The above 4 (ABCD) command formats are RS232 bi-directional. There are the
following error messages received by Slave terminal (scale).
Error messages:
E1: Wrong command
E2: Command format error (Wrong parameters)
E3: Command not recognised
