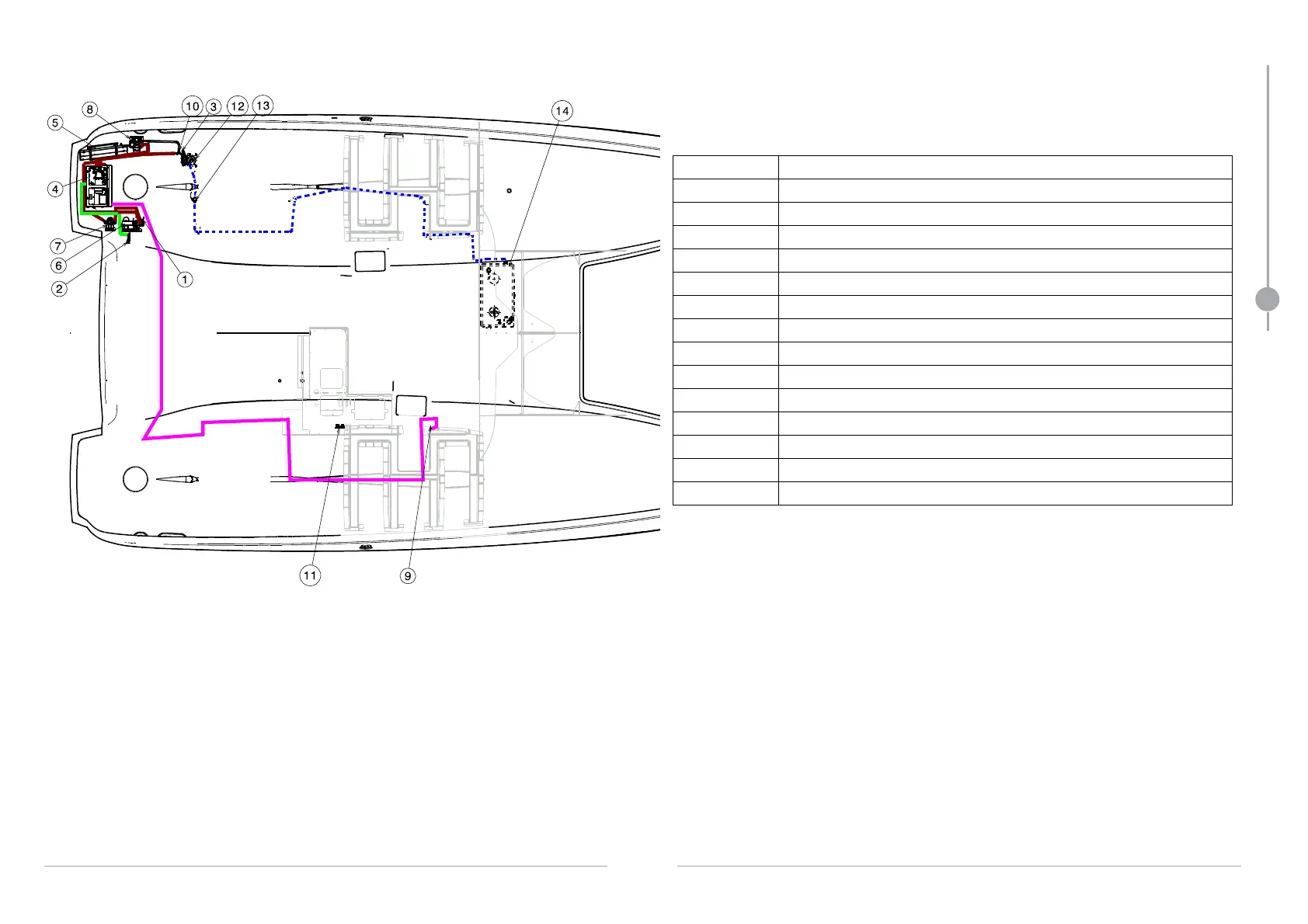

DIAGRAM OF LAYOUT
Reference Designation
1 Watermaker seawater intake
2 Brine drainage
3 Connection
4 Water maker motor
5 Membrane block
6 Filters
7 Seawater filter
8 Rinsing pump
9 Control box
10 Connection
11 Breaker
12 Water unit
13 Water maker/water unit feed valve
14 Fresh water tank
