209173 RCD-2
Index A
149

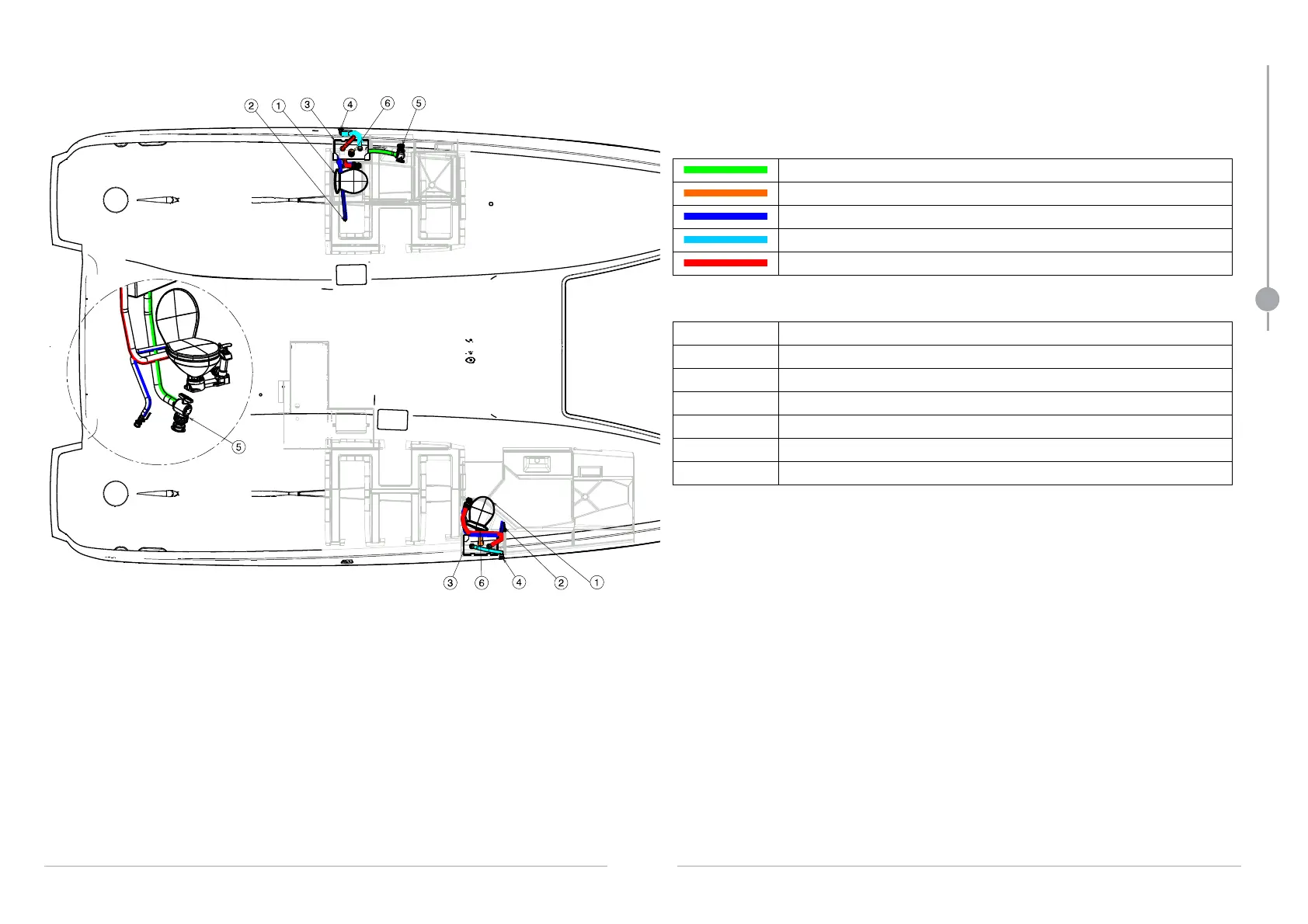

13.6.1 Diagram of blackwater system
Drainage hose (Hull) - 50mm diameter
Suction hose (Deck) - 50mm diameter
Sea water vent pipe - 20mm diameter
Vent pipe - 38mm diameter
Drainage hose (Sewage) - 38mm diameter
Reference Designation
1 Marine toilet
2 WC seawater intake
3 Blackwater tank
4 Blackwater tank vent
5 Drainage of blackwater tank into the sea
6 WASTE drain nozzle
Water systems
13
