155

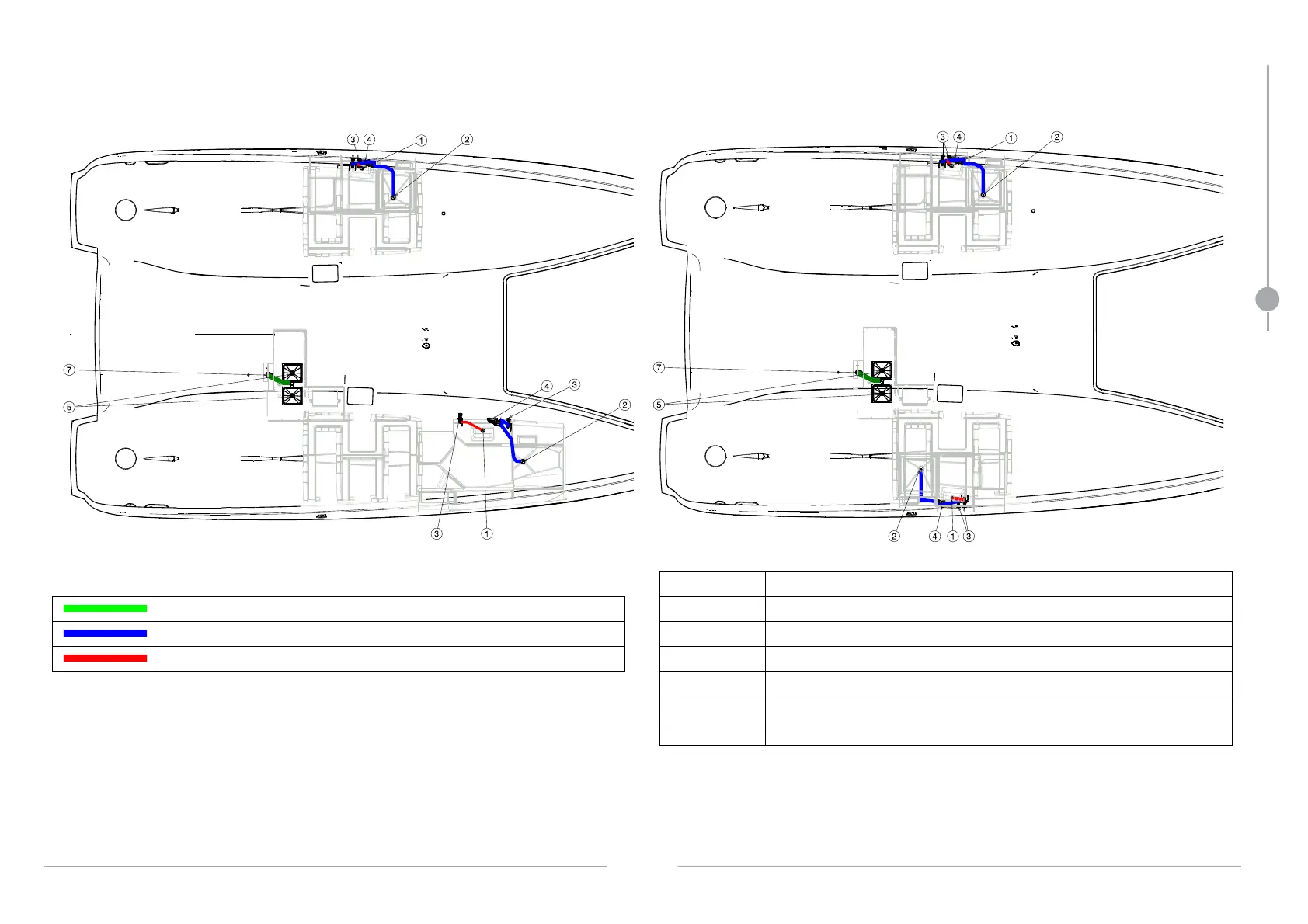

13.7.1 Diagram of waste water circuit installation

3-cabin layout 4-cabin layout

Reference Designation

Waste water pipe - 20mm diameter 1 Head washbasin

Waste water pipe - 25mm diameter 2 Shower

Waste water pipe - 35mm diameter 3 Drainage valve

4 Shower pump drainage

5 Galley sink

7 Kitchen sink thru-hull drainage

Water systems
