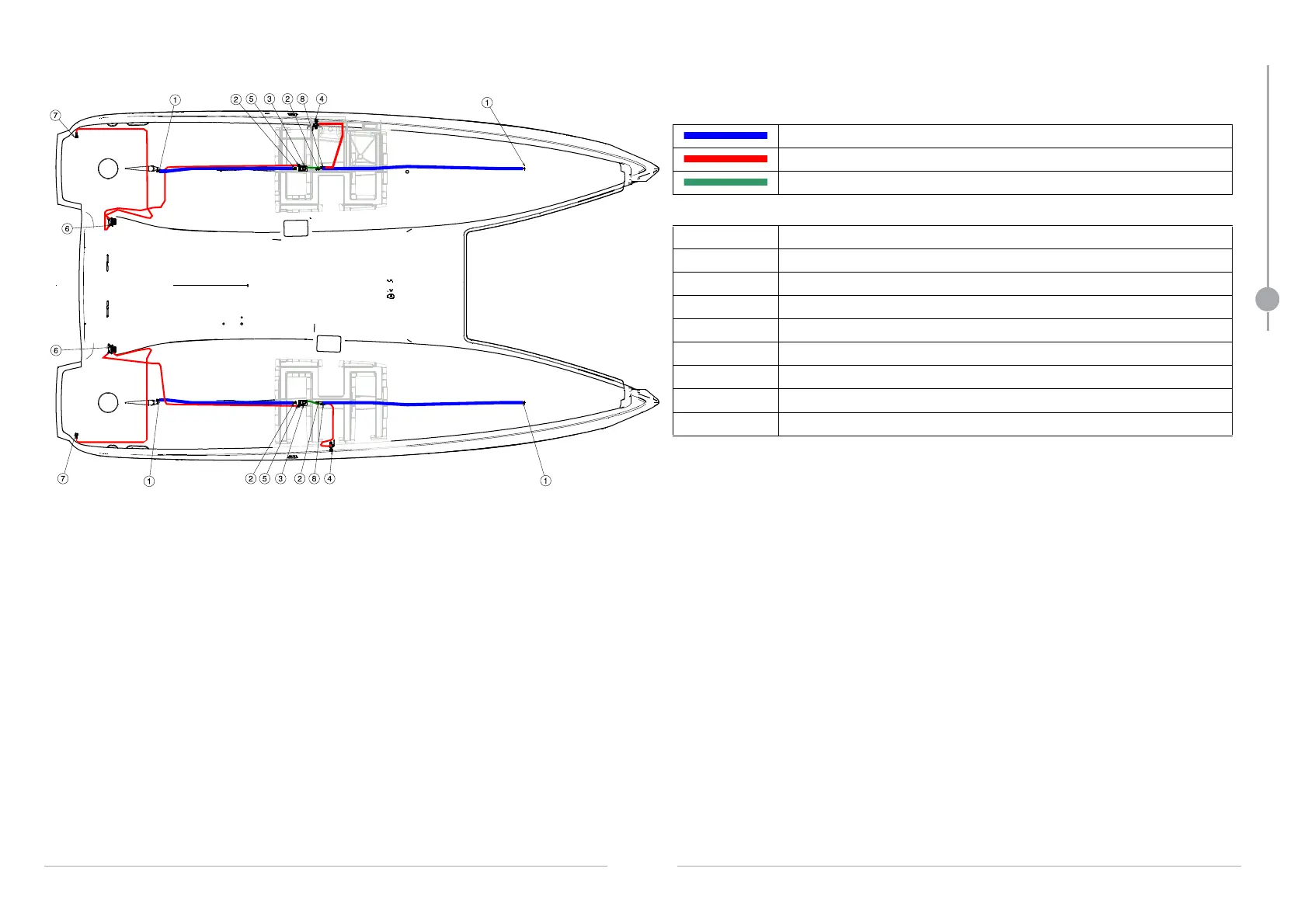

DIAGRAM OF LAYOUT - DRYING OUT THE BILGE
Drainage hose - 20mm diameter
Drainage hose - 25mm diameter
Drainage hose - 30mm diameter
Reference Designation
1 Bulkhead fitting
2 Valve closure
3 Electric bilge pump
4 Electric bilge pump drain valve
5 Manual bilge pump suction strainer
6 Manual bilge pump
7 Kitchen sink thru-hull drainage
8 Non-return valve
