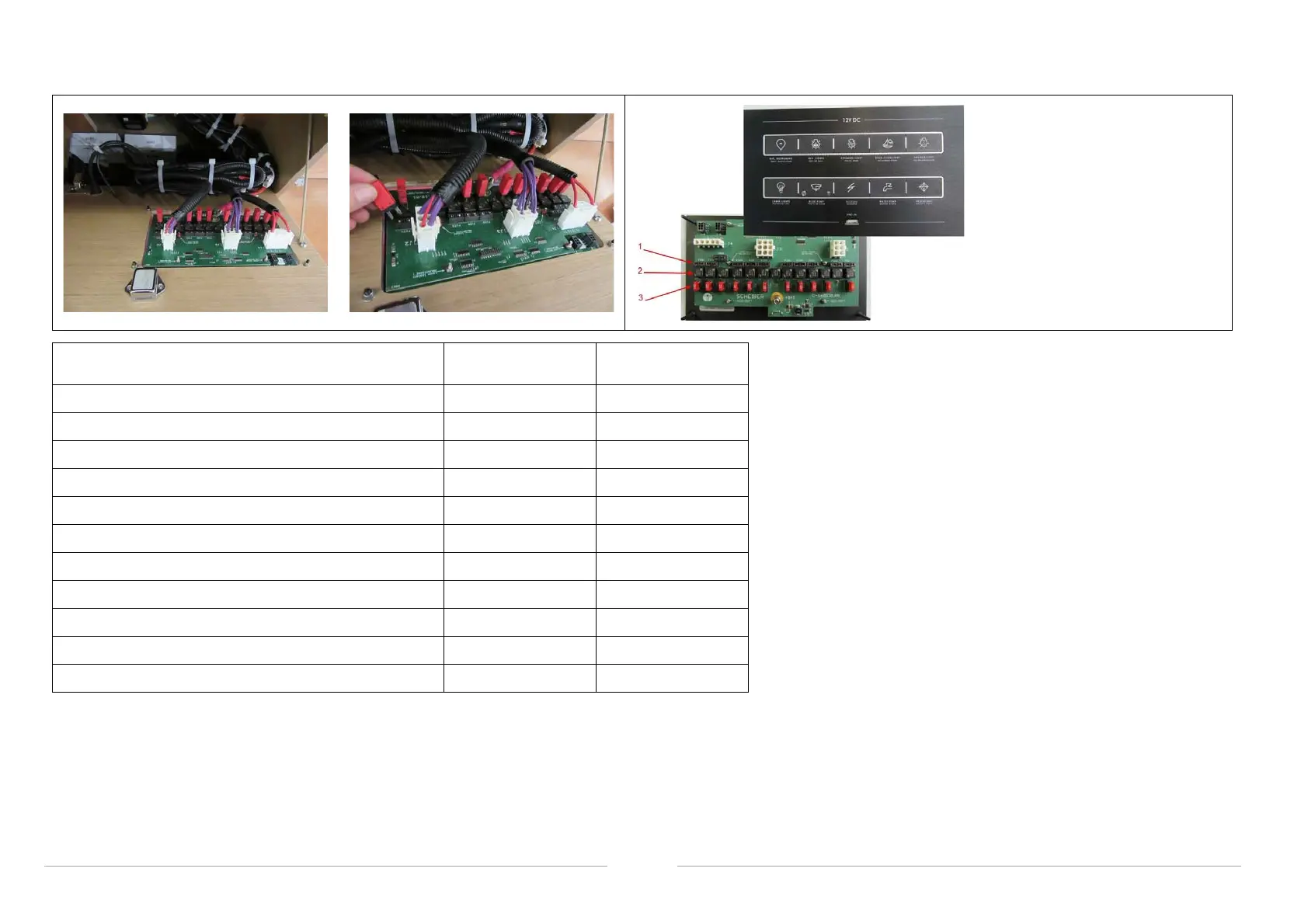

A circuit breaker protects the circuit of each DC component. An additional fuse holder allows the desired element to be supplied directly by shunting the relay.
When one of the switches on the panel is flashing, it means that the circuit breaker behind the electrical panel of the faulty switch must be reset.
1. Additional fuse holder (for
inserting a fuse to power a DC
component in defect mode)
2. Relay box
3. Fuse
Designation Safety fuse
Fuse in defect mode
(by-pass)
Water unit FU 3 FU 23
Electric bilge pump FU 2 FU 22
Auxiliary FU 4 FU 24
Refrigeration unit FU 1 FU 21
Navigation lights FU 8 FU 21
Steaming light FU 9 FU 29
Mooring light FU 7 FU 27
Electronic instruments FU 5 FU 25
Deck light FU 6 FU 26
Lighting 1 FU11 FU 31
Lighting 2 FU 10 FU 30
Electrical system
