Tighten bolts and nylon nuts with the 6# Allen Wrench and Multi Hex Tool provided.
In order to install the hinge bolt properly, keep it
perfectly straight when the bolt goes through the
pedal tubing and the crankshaft. If the hinge bolt
is connected to the crankshaft at an angle,
damage to both the hinge bolt and the crankshaft
may occur.
Important:
Screw Right Bolt (15R) into right crank
clockwise
!
Screw Left Bolt (15L) into Left crank
counter-clockwise
!
Important:
Please make sure the right bolt matches up
with the right crank and the left bolt matches
up with the left crank.
If reversed the cranks may become damaged
or stripped.

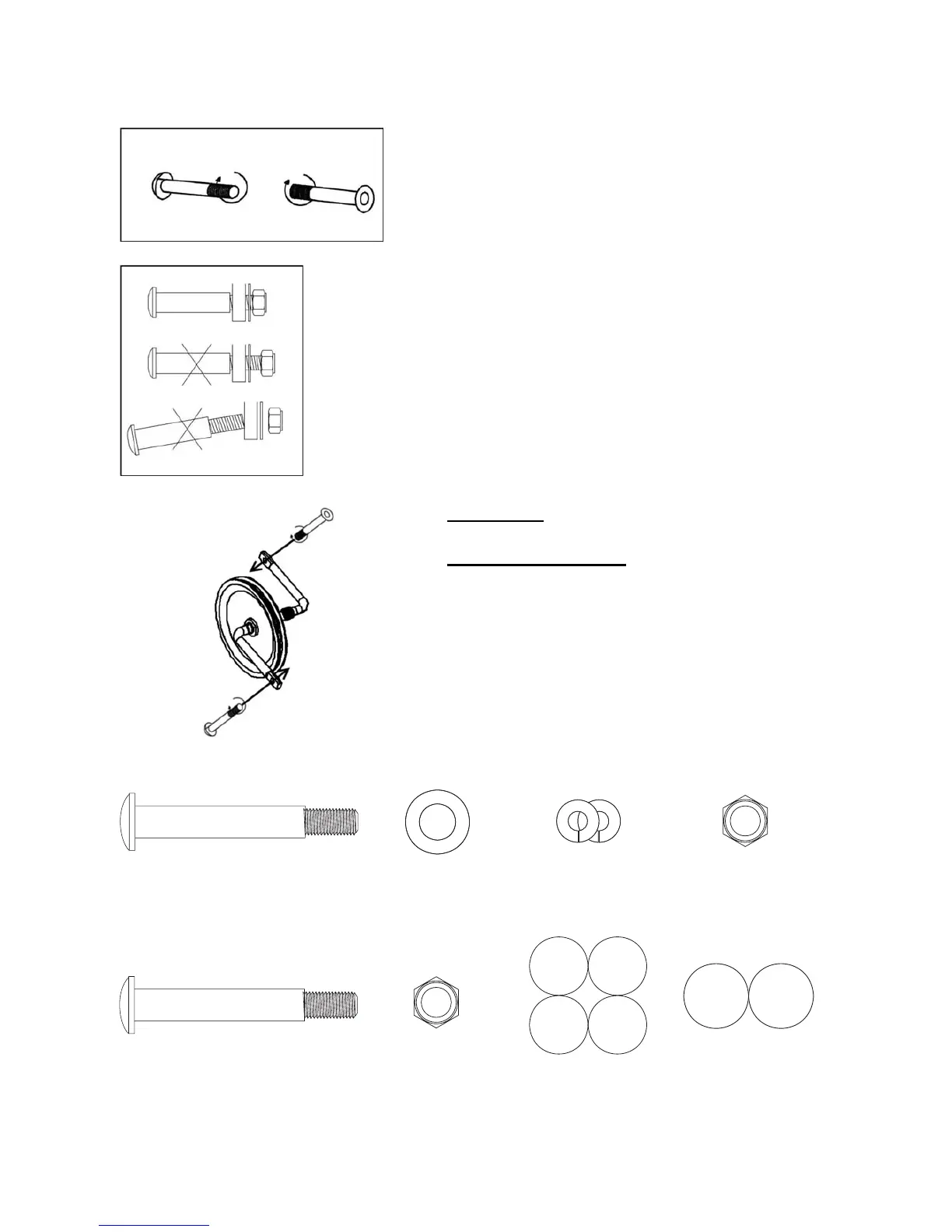

Hardware (STEP 2):
Right Bolt
Right Crank
Left Crank
Left Bolt
CORRECT
INCORRECT
INCORRECT
15L LEFT 15R RIGHT
(15L) Bolt for left Crank
Ø16x129
1 PC
(15R) Bolt for right Crank
Ø16x129
1 PC
(17L) Nylon Nut for
left Crank 1/2”
1 PC
(17R) Nylon Nut for
right Crank 1/2”
1 PC
(18) Spring Washer
Ø20xØ13.5
2 PCS
(36) Washer
Ø28xØ16.2x0.3
2 PCS
(14) Cap 17#
4 PCS
L
R
(76) Cap 19#
2 PCS
To Next Page
