Exerpeutic 1301 - Foot Pedals Installation

13
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․

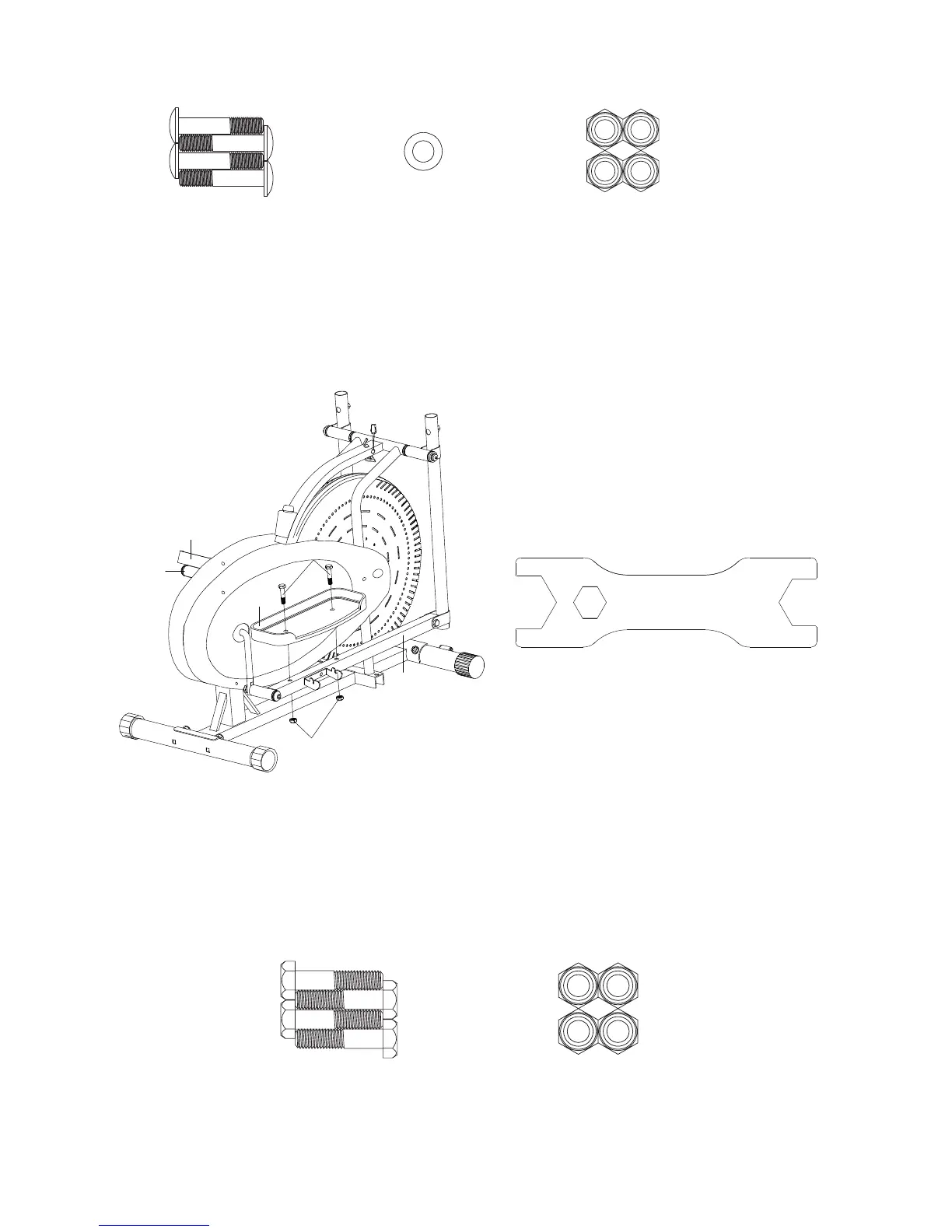

3. Right and Left Foot Pedals Installation
Attach the Right Foot Pedal (23R) onto the Foot Bar (11) with two M10x45 Bolts (24) and
two M10 Nylon Nuts (13). Tighten nylon nuts with the Multi Hex Tool provided.
Use the same procedure to attach the Left Foot Pedal (23L) onto the other Foot Bar (11).
Hardware (STEP 3):
(13) Nylon Nut M10
4 PCS
(24) Bolt M10x45
4 PCS
(73) Bolt M8x43
4 PCS
(75) Nylon Nut M8
4 PCS
(74) Washer Ø8
4 PCS
Tool:
Multi Hex Tool 13#, 17#, 19#
11
23L
24
23R
13
11
