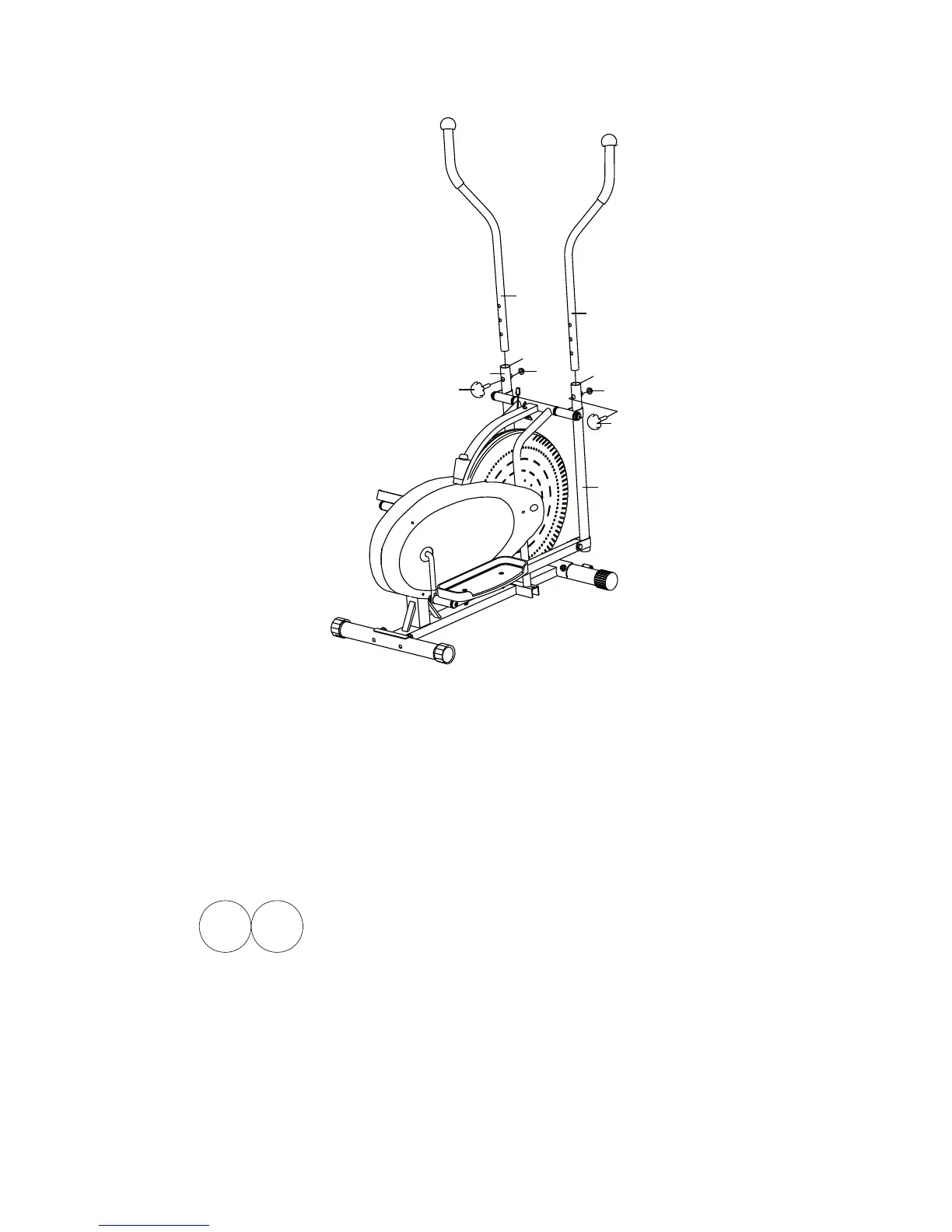

4. Right/Left Handrail Arms Installation
Insert the Right Handrail Arm (26) into the Handrail Arm Plastic Bushing (48) on the tube of
the Right Handrail (9) and then attach the M8 Handrail Arm Height Adjustment Knob (28)
onto the tube of the Right Handrail (9) by turning it in a clockwise direction to lock the Right
Handrail Arm (26) in the suitable position. Install a 14# Cap (38) onto the nut on the Right
Handrail (9). Use the same procedure to attach the Left Handrail Arm (27) into the Handrail
Arm Plastic Bushing (48) on the tube of the Left Handrail (10).
Cap (STEP 4):
(38) Cap 14#
2 PCS
