Exerpeutic TF2000 - Step 2: Console Wiring and Mounting

13
ASSEMBLY
Step 2

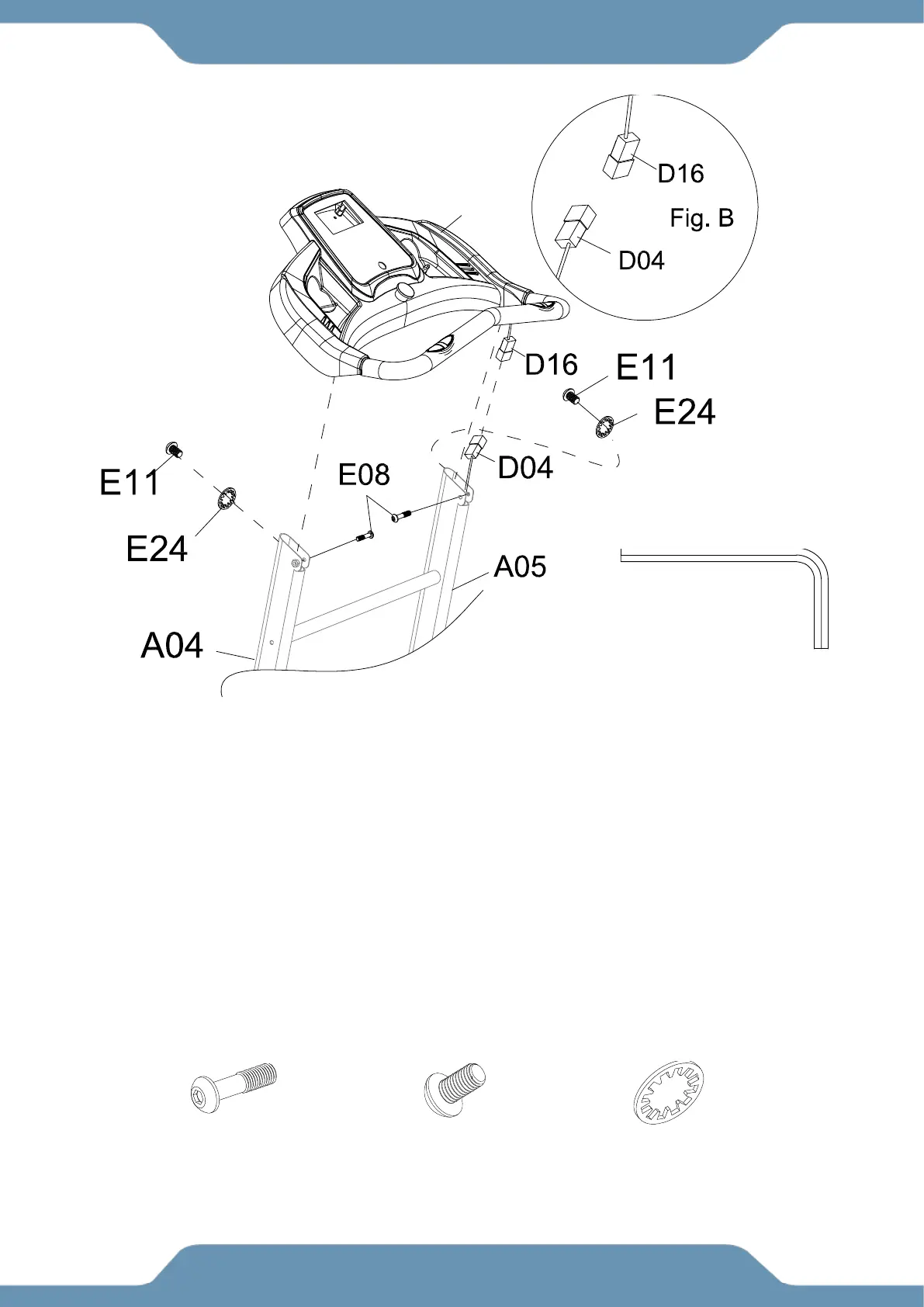

A. Connecting the Signal Wire:
1. Connect the Lower Signal Wire (D04) from the Right Upright Tube (A05) and the Upper
Signal Wire (D16) from the Console Top Cover (C01). See Fig. B.
B. Installing the Console:
1. Align the bolt holes of the Console Top Cover (C01) and the Left and Right Upright Tubes
(A04) & (A05). Insert two Bolts (E08), two Bolts (E11), and two Washers (E24).
WARNING: DO NOT FULLY TIGHTEN HARDWARE UNTIL COMPLETING STEP 5.
Hardware:
(B05) Allen Wrench 5mm 1PC
Tool:
(E11) Bolt M8x15
2 PCS
(E24) Washer Ø8
2 PCS
(E08) Bolt M8x38
2 PCS
C01
