ASSEMBLY

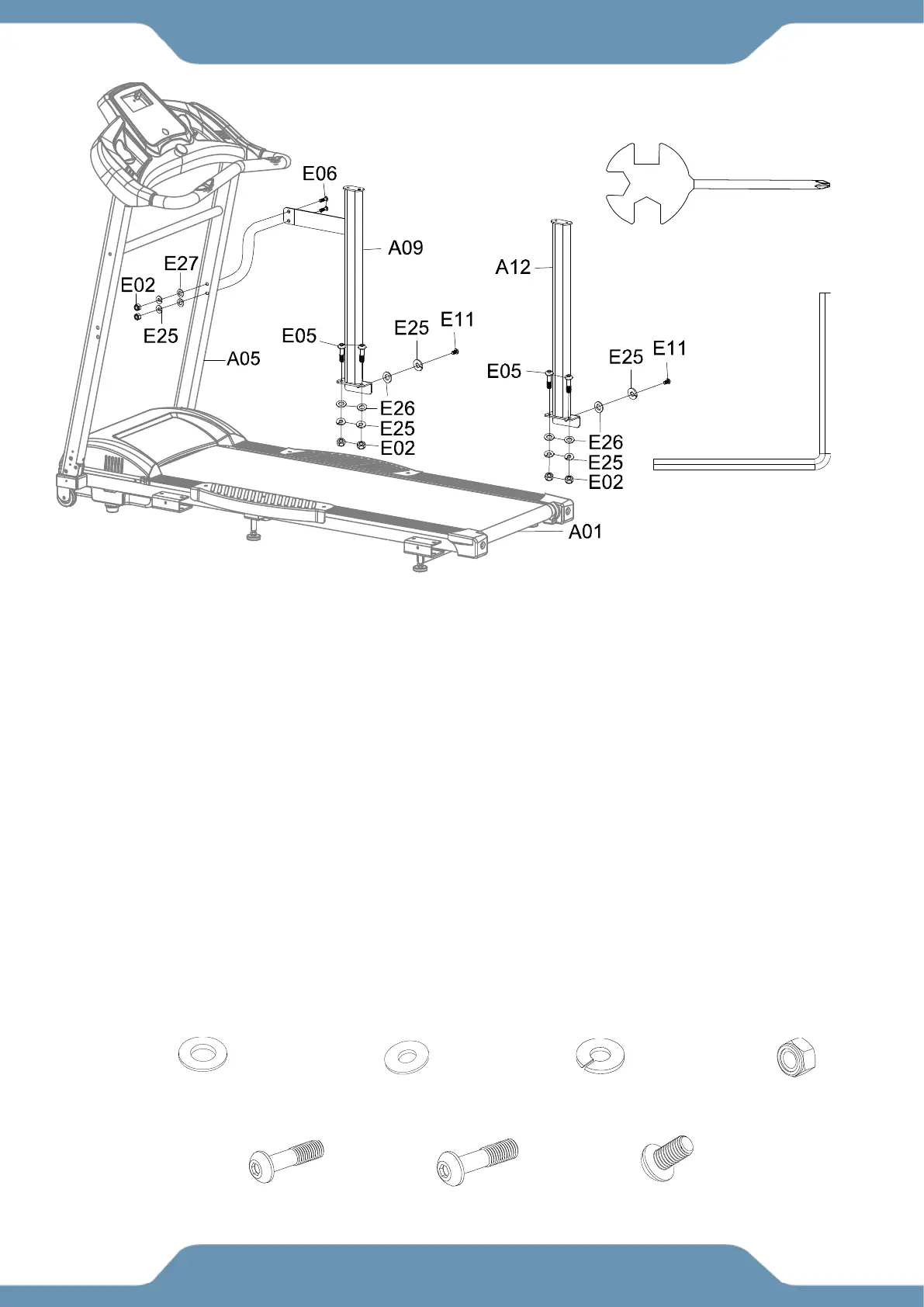

Step 3
A. Installing the Right Front Supporting Tube:
1. Align the TOP bolt holes on both the Front Right Support Tube (A09) and the Main
Frame (A01). Insert two Bolts (E05), two Flat Washers (E26), two Spring Washers
(E25), and two Nuts (E02).
2. Align the SIDE bolt holes on the Right Upright Tube (A05) and the Front Right
Support Tube (A09). Insert two Bolts (E06), two Flat Washers (E27), two Spring
Washers (E25), and two Nuts (E02).
3. Align the SIDE bolt hole on both the Front Right Support Tube (A09) and the Main
Frame (A01). Insert one Bolt (E11), one Flat Washers (E26), and one Spring Washer
(E25).
B. Installing the Rear Supporting Tube:
1. Align the TOP bolt holes on the Rear Support Tube (A12) and the Main Frame (A01).
Insert two Bolts (E05), two Flat Washers (E26), two Spring Washers (E25), two Nuts
(E02).
2. Align the SIDE bolt hole on both the Rear Support Tube (A12) and the Main Frame
(A01). Insert one Bolt (E11), one Flat Washers (E26), one Spring Washer (E25).
WARNING: DO NOT FULLY TIGHTEN HARDWARE UNTIL COMPLETING STEP 5.
(B04) Allen Wrench 5mm 1PC
(B03) Multi Hex Tool with Phillips
Screwdriver 1PC
Tool:
(E06) Bolt M8x50
2 PCS
(E05) Bolt M8x60
4 PCS
(E11) Bolt M8x15
2 PCS
(E02) Nut
6 PCS
(E26) Flat Washer
6 PCS
(E27) Washer
2 PCS
(E25) Spring Washer
8 PCS
Hardware:
