GENERAL DESCRIPTION 2
1.4 Getting Help
Our Customer Service Group is available in North America from 7:30 a.m. to 8:00 p.m.
(Eastern Standard Time), Monday to Friday.
2GENERAL DESCRIPTION
The FOT measures optical power (FOT-10A, FOT-20A, and FOT-30A) and loss
(FOT-20A and FOT-30A) at 5 precalibrated wavelengths in multimode and
singlemode fibers. A 2 kHz signal detection feature is also included for fiber
identification. The FOT-30A can be configured with a single- or dual-wavelength LED
or laser source.
The FOT is powered by the 9 V alkaline battery or the AC adapter/charger.

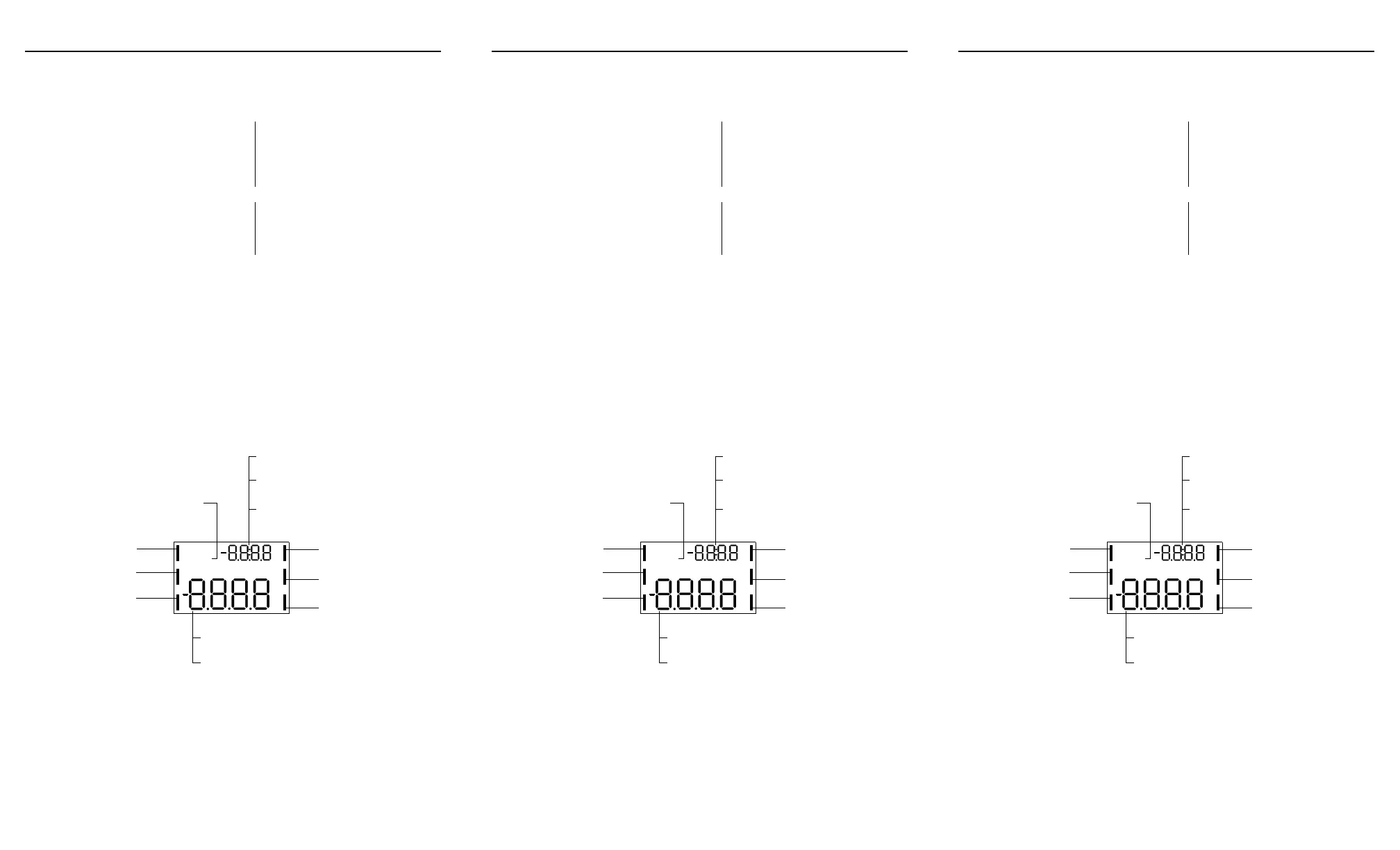

2.1 Display
EXFO Electro-Optical Engineering
(Corporate Headquarters)
465 Godin Avenue
Va n i e r QC G 1 M 3 G7
Canada
1 800 663-3936 (USA & Canada)
Tel.: (418) 683-0211
Fax: (418) 683-2170
support@exfo.com
www.exfo.com
EXFO Europe
Centre d’Affaires Les Metz
100, rue Albert Calmette
78353 Jouy-en-Josas, France
Tel.: 33-1 34 63 00 20
Fax: 33-1 34 65 90 93
Hz
CW
2kHz
auto
METER
dBm
µ W
dBm
nW
mW
Power meter wavelength in nm
1
Low battery
Absolute power in dBm (or W in FOT-20 and FOT-30A)
AC adapter/charger
operation
9 V battery operation
Source wavelength (FOT-30A)
nm
off
SOURCE
850
1300
1310
1550
AC
9V
low
bat
Pre-calibrated wavelengths depend on detector type (Si: 650, 780, 820, 850, and 910 nm;
Ge/GeX: 780, 850, 1300, 1310, and 1550 nm).
Relative power in dB (FOT-20 and FOT-30A)
Auto-off function activated
Continuous wave (CW)
output signal activated
(FOT-30A)
2 kHz output signal
activated (FOT-30A)
2 kHz signal detection
Reference value in dBm
(FOT-20A and FOT-30A)
1.
