Setting Up Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 135

Configuring the Internet Options

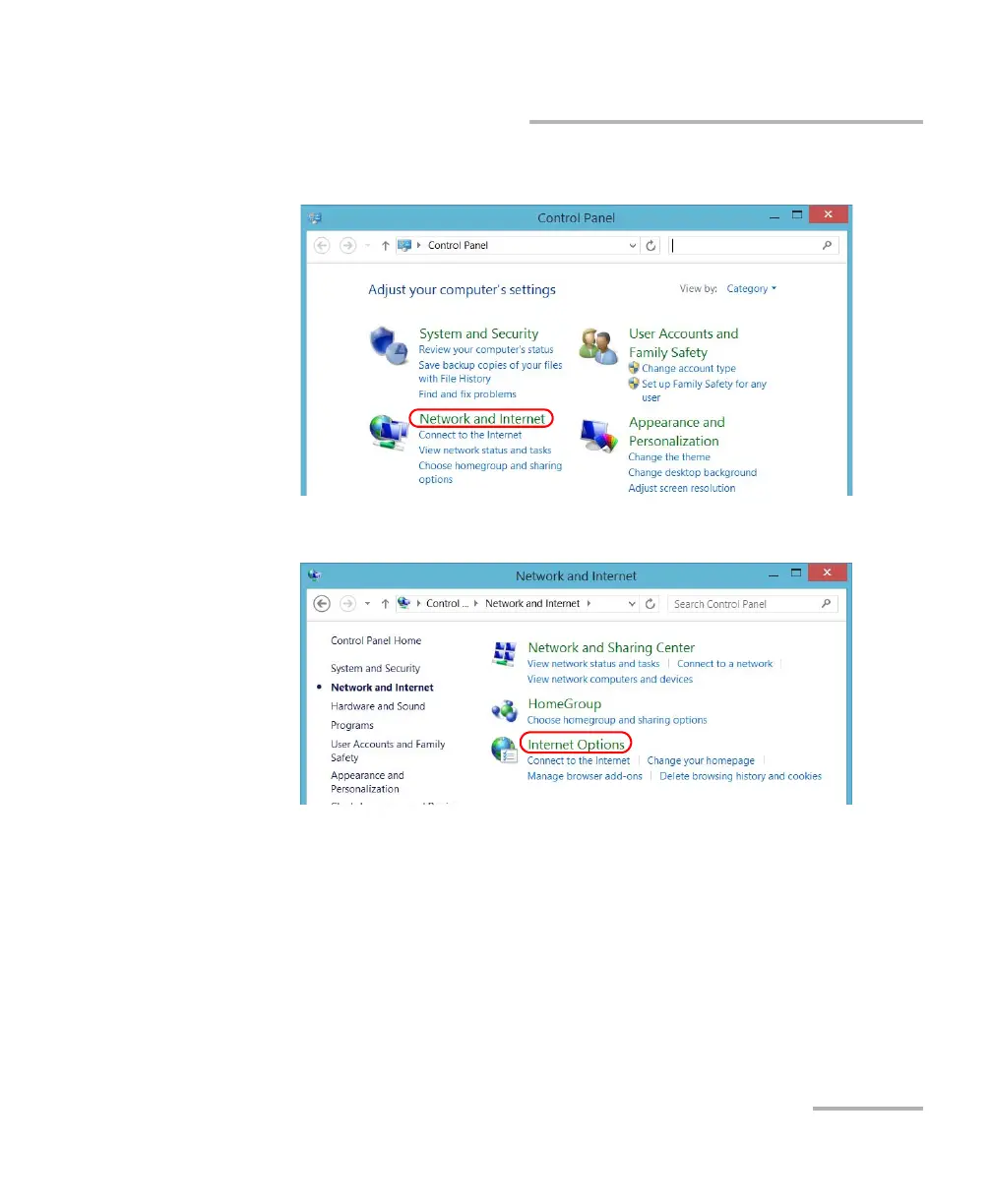

3. Tap Network and Internet.

4. Tap Internet Options.
