Setting Up Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 87

Adjusting Microphone and Speaker Volume

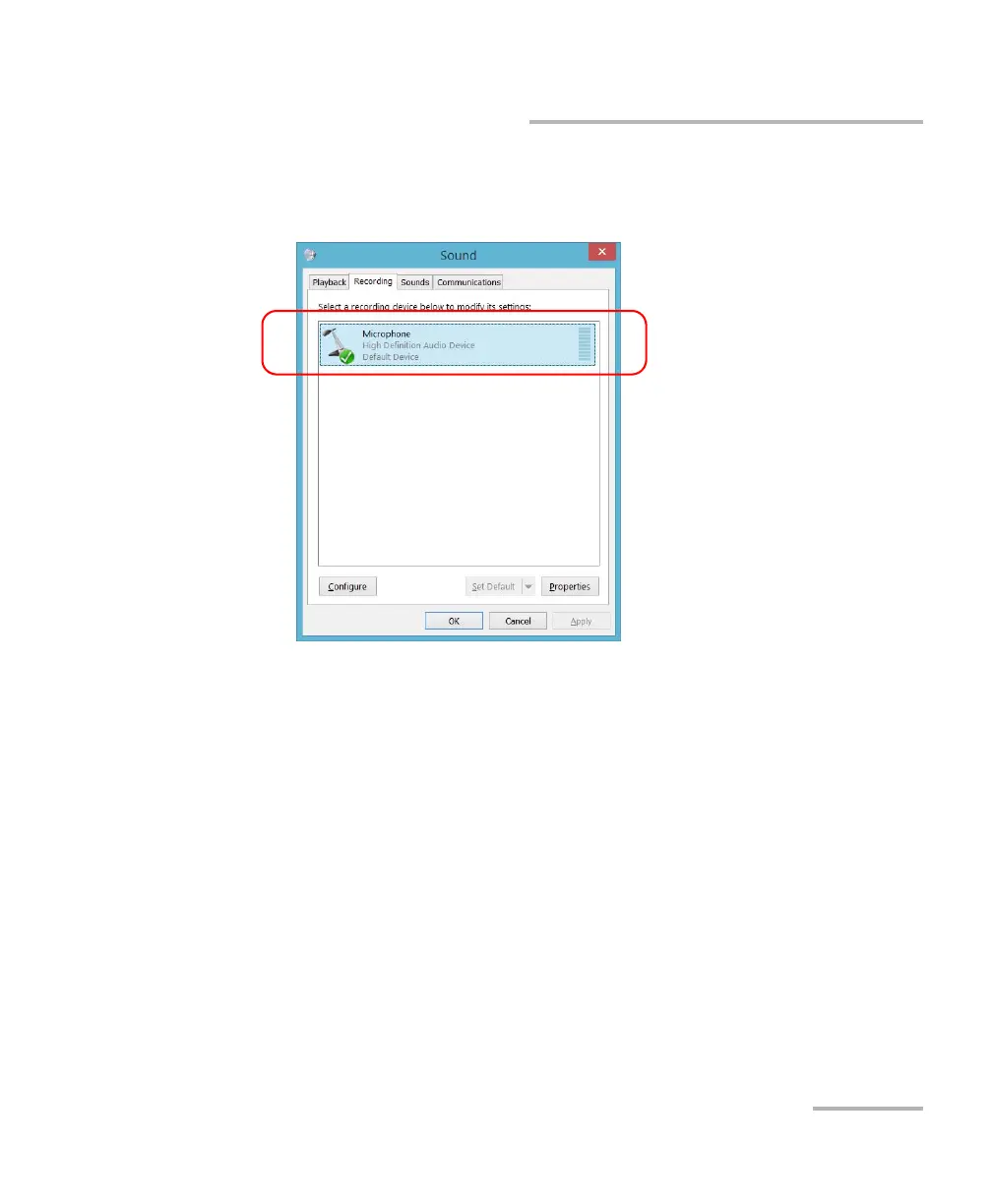

6. Select the Recording tab.

7. Ensure that your microphone is selected, and then tap Properties.
